| Type of Product | Thyristor Regulator |
| Model No | JW46500ZA106 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Chino Corporation |
Type of Product |
Thyristor Regulator |
Model No |
JW46500ZA106 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Chino Corporation |
Import Country |
Direct Import from Japan |
Specifications |
[CT function] External (none), [Setting communication unit] Main unit installation, [Fast-acting fuse] Built-in |
Monotaro ID |
68160919 |
Rated Frequency (Hz) |
50/60 (automatic selection) |

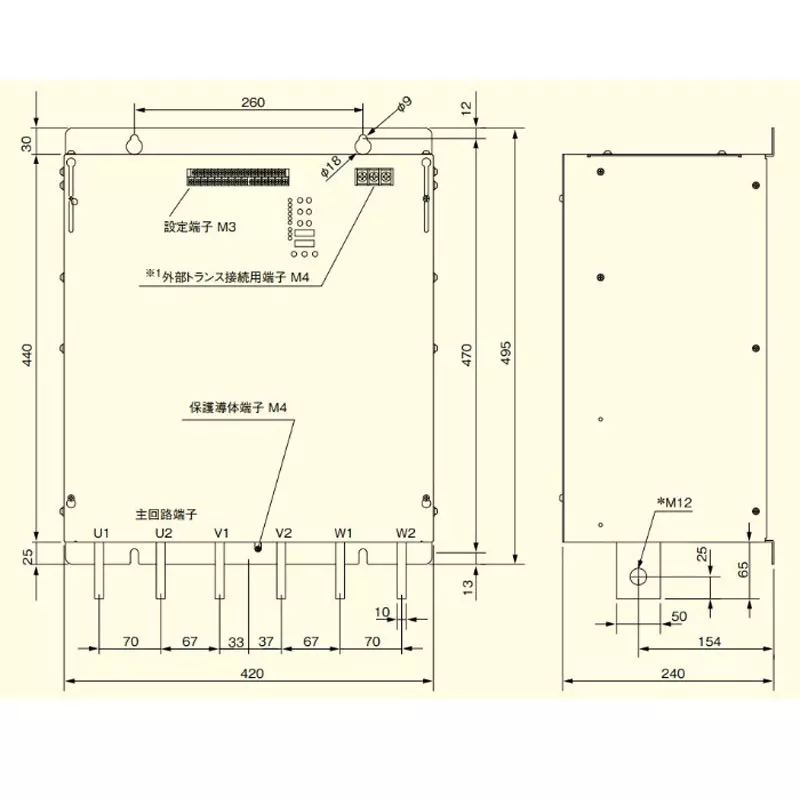

Dimension (mm) |
420x495x240 |
Mass (Kg) |
About 36 |
Rated Current (A) |
500 |
RoHS Directive |
Correspondence |
Operating Humidity Range |
30 to 90% RH*However, no condensation |
Power Supply Voltage (V) |
460 V AC |
Operating Temperature Range |
-10 to 55℃ |
Control |
Frequency division control method |
Cooling Method |
Forced cooling method |
No. of Spoke |
6 arms |
External Input |
[Setting] Volume signal (10kΩ recommended), [Contact] External signal, no-voltage contact or open collector (external contact capacity 5mA 5V DC or more), [CT] 0 to 5A AC for rated current |
