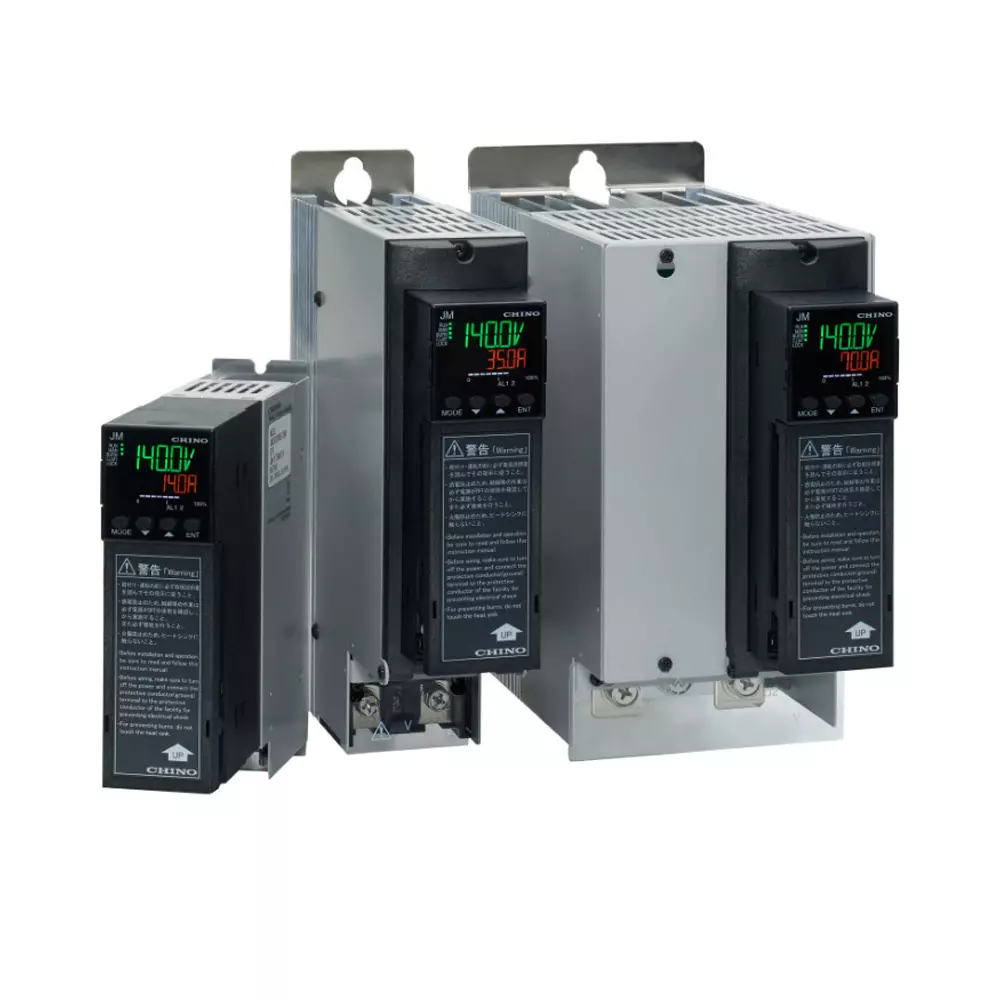

![CHINO Sinle Phase Thyristor Regulator [Main circuit] 250 Amp 100 V, JM10250WA303NN](http://static1.industrybuying.com/products/industrial-automation/variable-frequency-drive-vfd/thyristor/IND.THY.945388252_1786634791941.webp "CHINO Sinle Phase Thyristor Regulator [Main circuit] 250 Amp 100 V, JM10250WA303NN")
View
View
View
View
| Type of Product | Thyristor Regulator |
| Model No | JM10250WA303NN |
| Rated Voltage | [Main circuit] 100 V system (100 V/110 V/120 V) *1 *2 |
| Country of Origin | Japan |
Type of Product |
Thyristor Regulator |
Model No |
JM10250WA303NN |
Rated Voltage |
[Main circuit] 100 V system (100 V/110 V/120 V) *1 *2 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Chino Corporation |
Import Country |
Direct Import from Japan |
Specifications |
[CT] External, [Elevation] Output range 0 to 100%, [Setting display/communication] Main unit/communication available, [Fast-acting fuse] Built-in |
Output Range |
0 to 98% of rated voltage |
Overcurrent Protection |
Operation stops when the rated current exceeds 120% |
Monotaro ID |
68181691 |
Rated Frequency (Hz) |
50/60 (±2) |

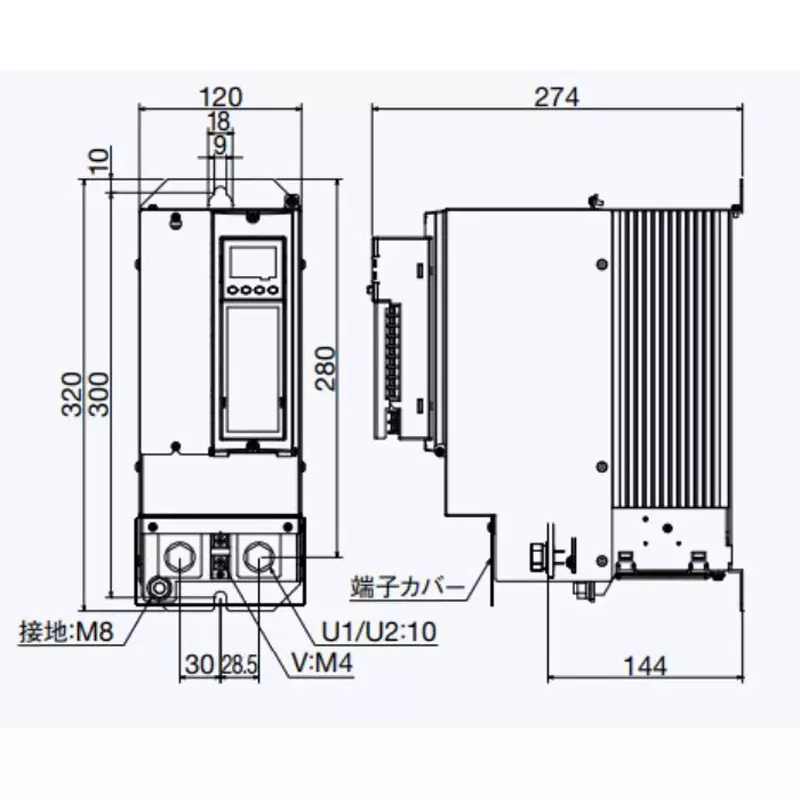

Dimension (mm) |
120x320x274 |
Method |
Power feedback (phase control) |
Mass (Kg) |
About 6.0 |
Slant |
0 to 100% of output range |
Input Signal |
4 to 20mA DC, 0 to 10V DC, 0 to 5V DC, 1 to 5V DC, logic input (L: 0.0V DC ≦ input ≦ 1.5V DC, H: 4.0V DC ≦ input ≦ 10.0V DC) |
Applicable Load |
Resistive load, inductive load (transformer primary side control, phase control only) |
Soft Start |
0.1 to 20.0 seconds |
Rated Current (A) |
[Main circuit] 250 |
RoHS Directive |
Correspondence |
