Ships within 4 days
View
View
View
View
| Country of Origin | China |
| Technology | MOSFET |
| Frequency | 50 to 60 Hz |
| Phase | Single Phase |
Country of Origin |
China |
Technology |
MOSFET |
Frequency |
50 to 60 Hz |
Phase |
Single Phase |
Type of Product |
TIG Welding Machine |
Weight |
7.5 Kg |
Input Voltage |
220 V |
Current Range |
TIG - 10-230 Amp, MMA - 10-190 Amp |
Package Contains |
Inverter Power Source, TIG Torch 4 m Cable, Earth Clamp 3 m Cable, Tungsten Electrode, Cerium Tungsten |
Output Current |
(Output Current/Voltage/Duty Cycle 40'C) - TIG: 230A/19.2V/30% 190A/17.6V/100%, ΜΜΑ: 190A/27.6V/40% 170A/26.8V/100% |
Current Rating |
TIG - 35.5 Amp, MMA - 38.5 Amp |
Dimension |
402X160X300 mm |
Features |
New Technology To Maximizing Thermal Dissipation With 4 Separated Heat Sinks, Post Flow Adjustable, The Success Rate Of Arc Striking Is Upto More Than 99% |

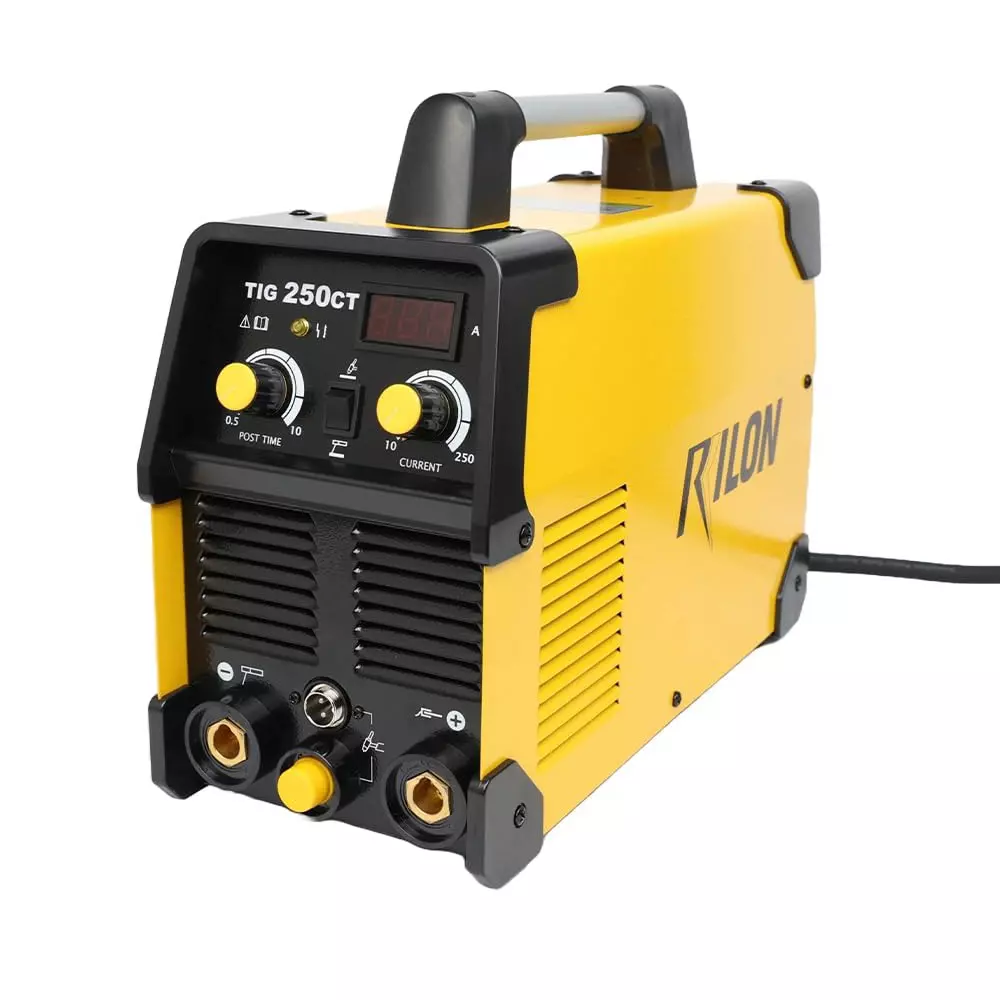

Model No |
TIG 250CT |
Machine Type |
TIG Welding Machine |
Name of Manufacturer/Packer/Importer |
GUPTA ENTERPRISES |
Ocv |
TIG - 64.5 V / 15.5 V (VRD), MMA -64.5 V / 15.5 V (VRD) |
Rated Current |
input @ Output TIG:35.5A@230A, MMA:38.5A@190A |
