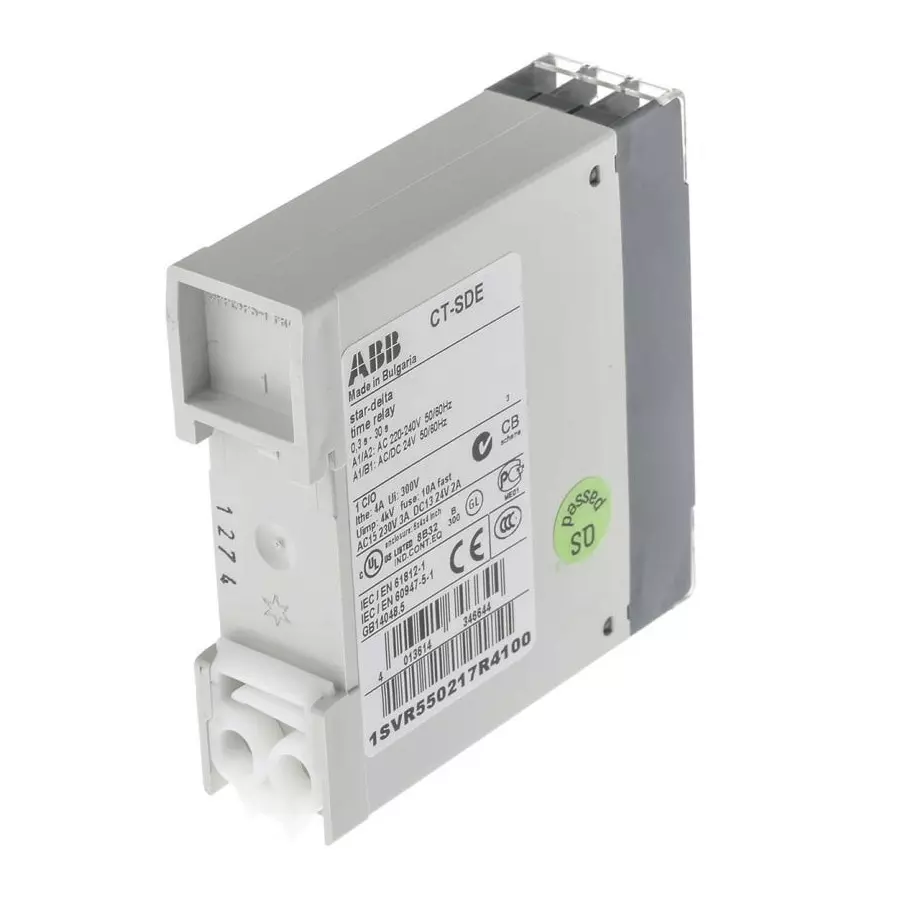

| Type of Product | 1SVR Series DIN Rail Mount Timer Relay |
| Time Range | 0.3 → 30s |
| Width | 22.5 mm |
| Depth | 78 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
1SVR Series DIN Rail Mount Timer Relay |
Time Range |
0.3 → 30s |
Width |
22.5 mm |
Depth |
78 mm |
Terminal Type |
Screw |
Length |
78.5 mm |
Mounting Type |
DIN Rail |
Country of Origin |
Bulgaria |
Series |
1SVR |
No. of Contacts |
2 |
Contact Material |
Silver Cadmium Oxide |
Supply Voltage |
24 V AC/DC, 200 → 240 V AC |
Maximum Current |
4A |
Switch Configuration |
DPDT |
Operation Mode |
ON Delay |
Maximum Operating Temperature |
+60°C |
Contact Configuration |
SPDT |
Maximum Voltage |
250V |
Minimum Operating Temperature |
-20°C |
Power Supply |
External |
Name of Manufacturer/Packer/Importer |
ABB Ltd |
Manufacturer Model Number |
1SVR550217R4100 |
Pack of |
Each of 1 Piece |
Number of Timer Functions |
Single |
Time Increment |
Seconds |
