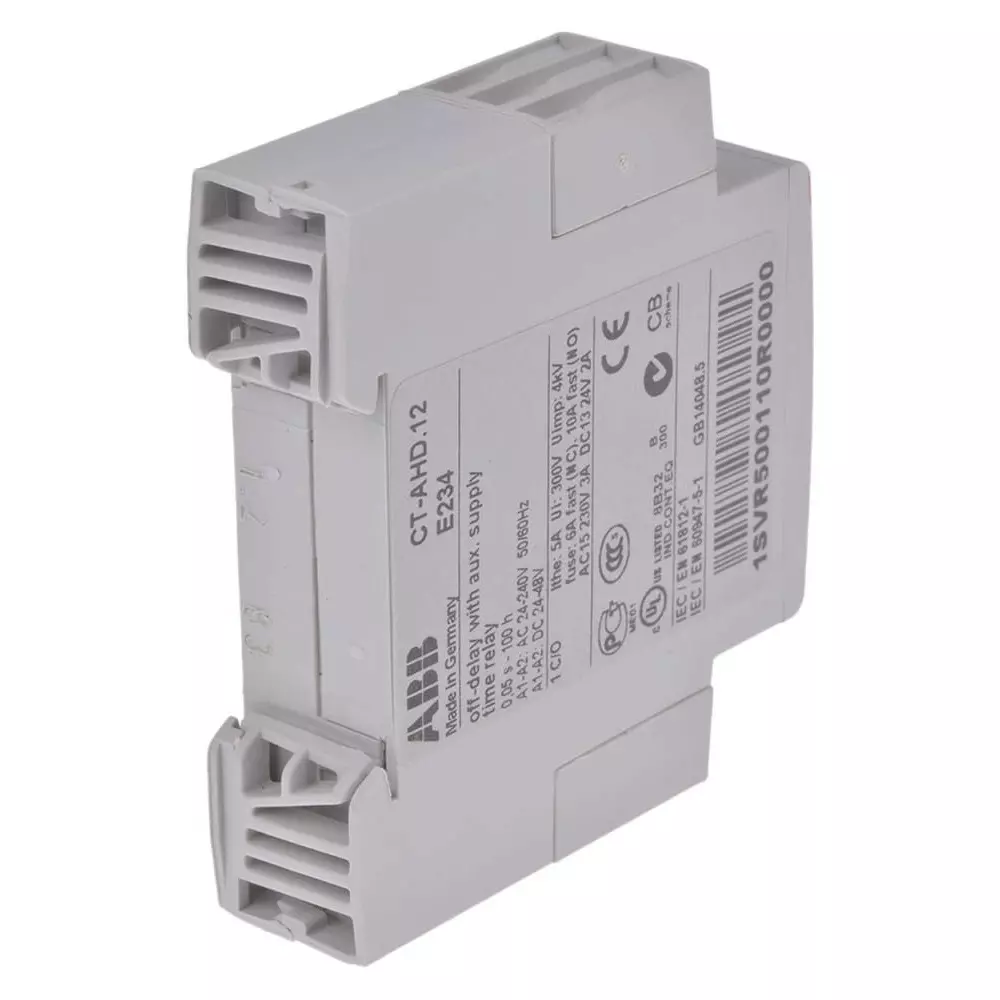

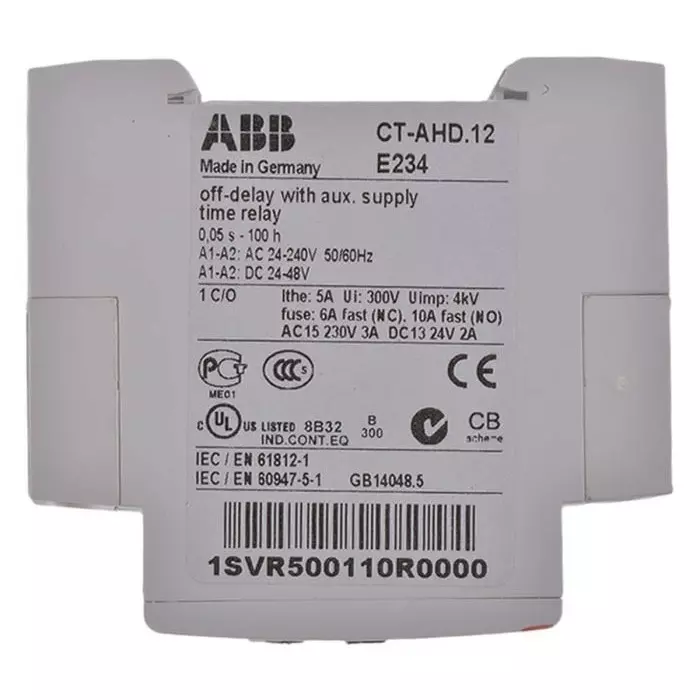

| Type of Product | DIN Rail Mount Timer Relay |
| Time Range | 0.05 s → 100h |
| Width | 17.5 mm |
| Depth | 58 mm |
Type of Product |
DIN Rail Mount Timer Relay |
Time Range |
0.05 s → 100h |
Width |
17.5 mm |
Depth |
58 mm |
Terminal Type |
Screw |
Length |
70 mm |
Mounting Type |
DIN Rail |
Country of Origin |
US |
No. of Contacts |
1 |
Contact Material |
Cadmium |
Supply Voltage |
24 → 240 V AC, 24 → 48 V DC |
Maximum Current |
6A |
Switch Configuration |
SPDT |
Operation Mode |
OFF Delay |
Minimum Voltage |
12V |
Maximum Operating Temperature |
+60°C |
Contact Configuration |
SPDT |
Maximum Voltage |
250V |
Minimum Operating Temperature |
-20°C |
Power Supply |
External |
Name of Manufacturer/Packer/Importer |
ABB Ltd |
Minimum Current |
100mA |
Manufacturer Model Number |
1SVR500110R0000CT-AHD.12 |
Pack of |
Each of 1 Piece |
Number of Timer Functions |
Single |
Time Increment |
Hours, Seconds |
