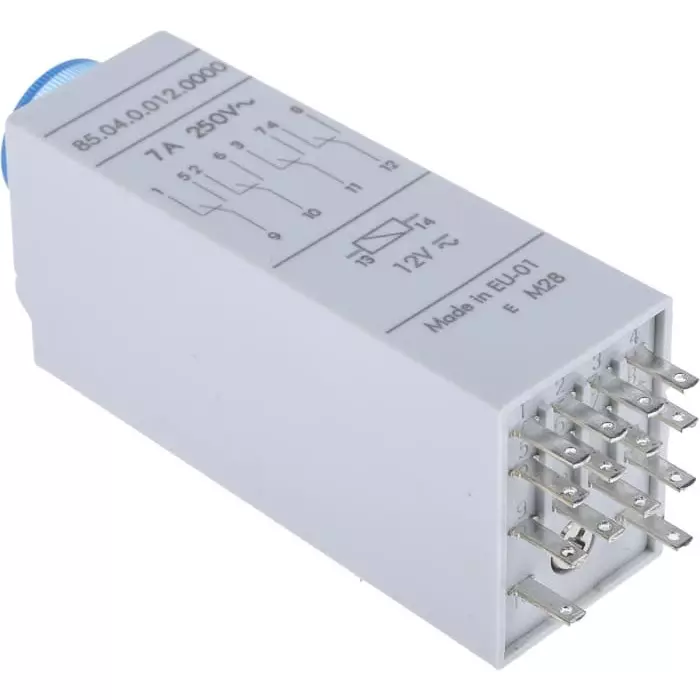

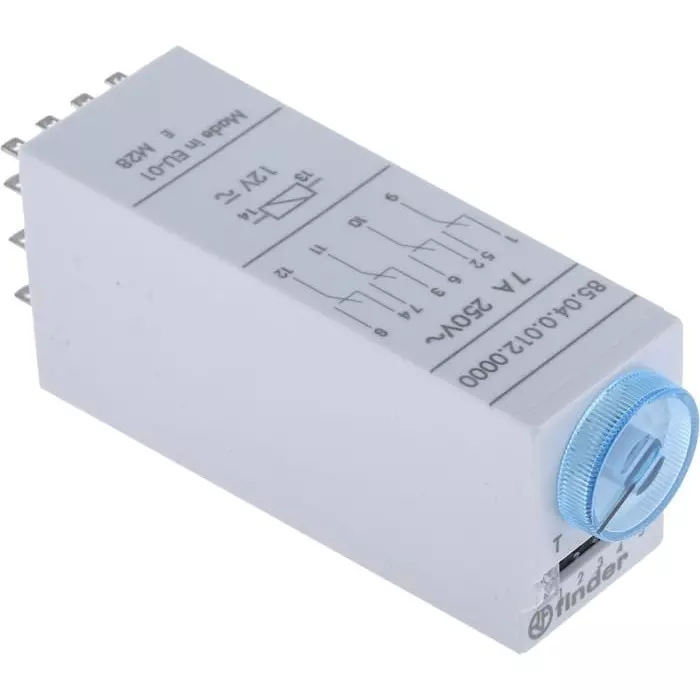

| Type of Product | Timer Relay |
| Time Range | 0.05 to 100s, 0.5 to 100h, 0.5 to 100min |
| Width | 20.6 mm |
| Depth | 27.7 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Timer Relay |
Time Range |
0.05 to 100s, 0.5 to 100h, 0.5 to 100min |
Width |
20.6 mm |
Depth |
27.7 mm |
Terminal Type |
14-Pin Connector |
Length |
63.1 mm |
Mounting Type |
Plug In |
Country of Origin |
Italy |
Series |
85 Series |
No. of Contacts |
4 |
Supply Voltage |
12 V AC/DC |
Maximum Current |
7 A |
Switch Configuration |
4PDT |
Operation Mode |
Interval, ON Delay, Pulse Delayed, Symmetrical Flasher |
Time Delay |
<=20 ms |
Maximum Operating Temperature |
+60°C |
Contact Configuration |
4PDT |
Maximum Voltage |
13.2 V AC/DC |
Minimum Operating Temperature |
-20°C |
Power Supply |
External |
Manufacturer Part Number |
85.04.0.012.0000 |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Minimum Current |
10 A |
Number of Timer Functions |
Multi Function |
Time Increment |
Hours, Minutes, Seconds |
