Ships within 25 days
View
View
View
View
| Model No | 1700DH075 |
| Type of Product | Timing Belt |
| Material | Chloroprene Rubber |
| Country of Origin | JAPAN |
Model No |
1700DH075 |
Type of Product |
Timing Belt |
Material |
Chloroprene Rubber |
Country of Origin |
JAPAN |
No. of Teeth |
340 |
Nominal Length of Belt |
4.32 m |
Belt shape |
H |
Operating Temperature Range |
-30～80 ℃ |
Type |
Double |
Belt pitch circumference (mm) |
4318 mm |
Minimum Pulley diameter (mm) |
57 mm |
Monotaro ID |
47874251 |
Belt nominal width |
75 |

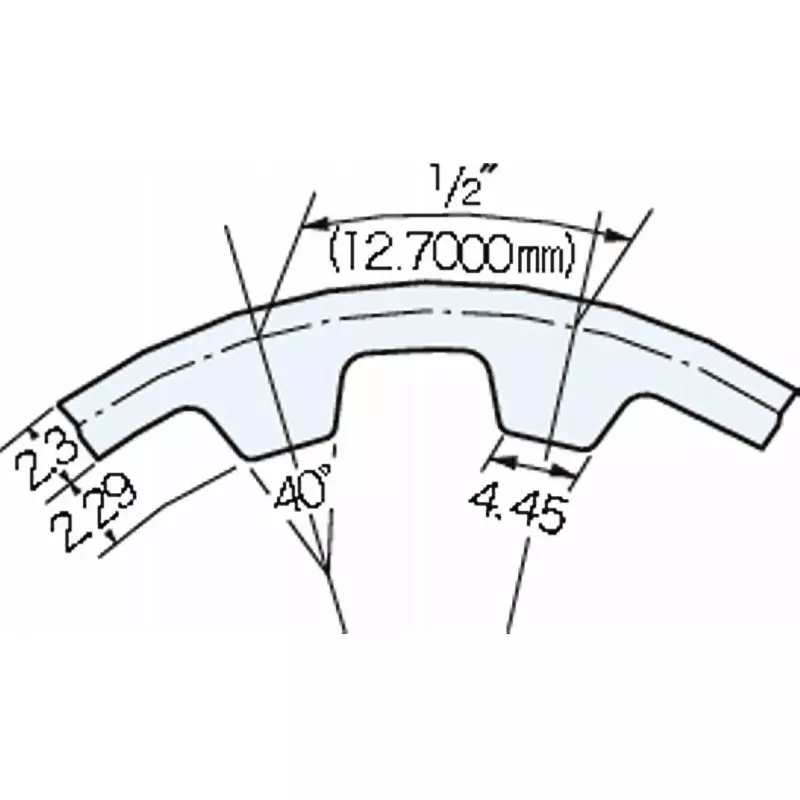

Tooth pitch (mm) |
12.7 mm |
Maximum Speed (m/sec) |
30 (m/sec) |
Belt width (mm) |
19.1 mm |
Nominal Length of Belt (inch) |
170 inch |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
