Ships within 25 days
View
View
View
View
| Model No | 480L050 |
| Type of Product | Timing Belt |
| Length | 1200 mm |
| Country of Origin | Japan |
Model No |
480L050 |
Type of Product |
Timing Belt |
Length |
1200 mm |
Country of Origin |
Japan |
Nominal Length of Belt |
121.92 cm |
Maximum Speed |
30 m/sec |
Belt shape |
L |

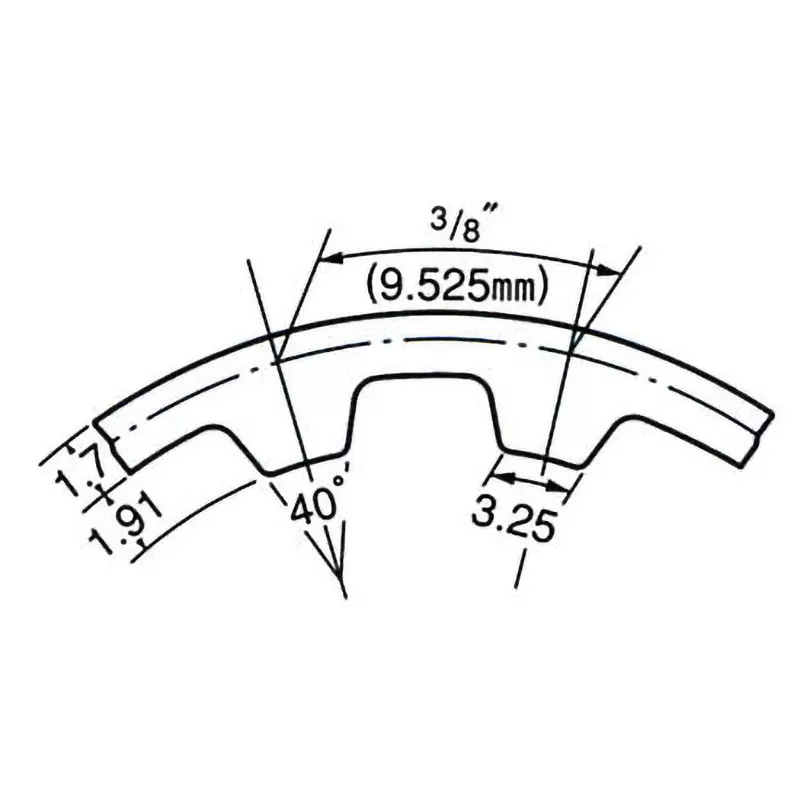

Tooth Pitch |
9.525 mm |
Operating Temperature Range |
-30～90 °C |
Type |
Timing Belt |
Belt pitch circumference (mm) |
1219.2 mm |
Minimum Pulley diameter (mm) |
36 mm |
Monotaro ID |
9997461 |
Belt nominal width |
50 mm |
Height |
3.61 mm |
Belt width (mm) |
12.7 mm |
Belt Material |
Rubber |
Nominal Length of Belt (inch) |
48 inch |
No.of Teeth |
128 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
