| Model No | 515MXL3.2 |

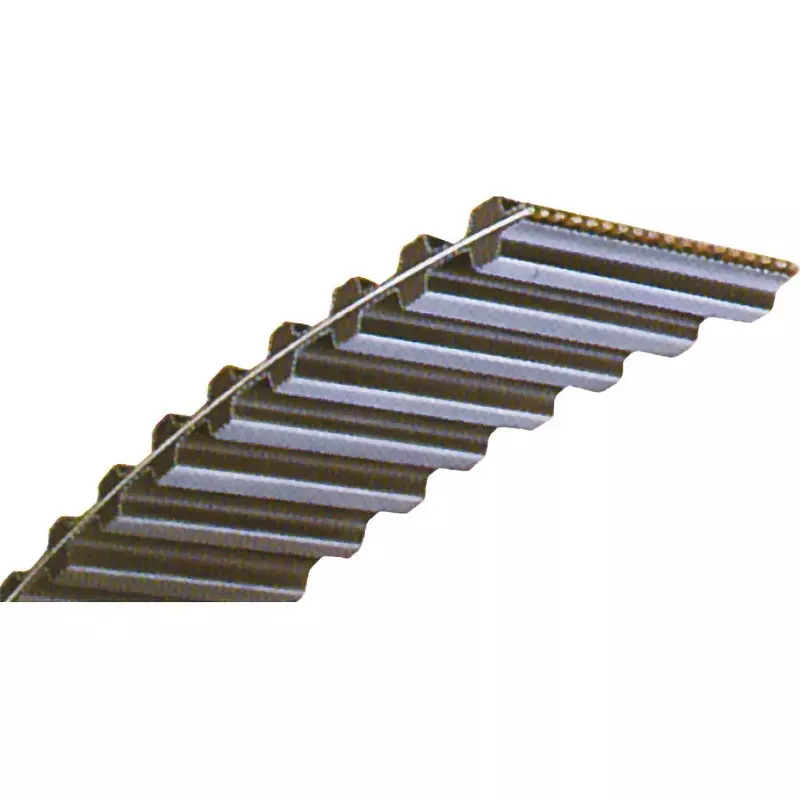

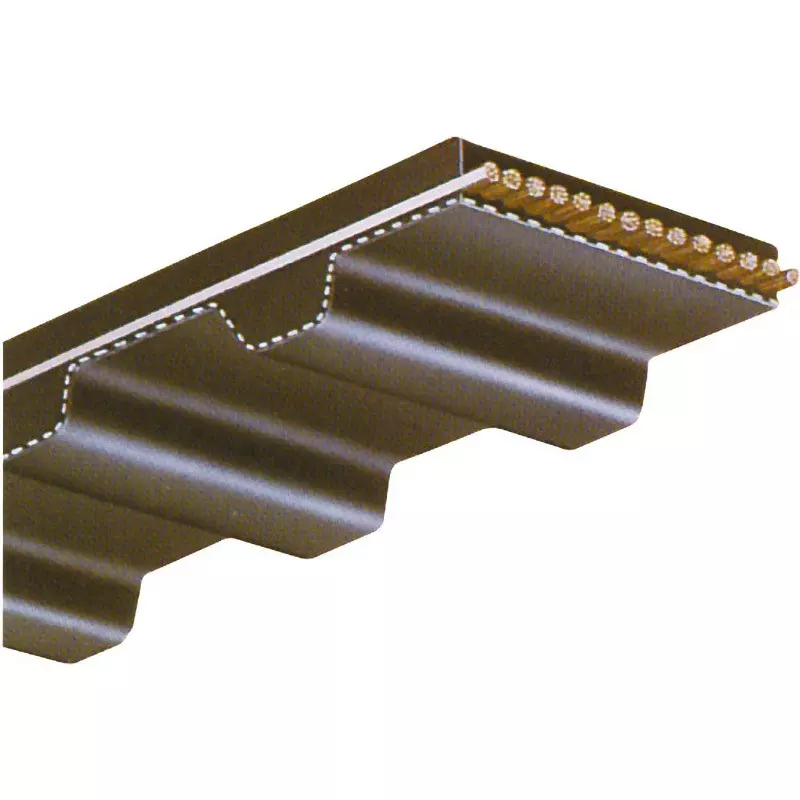

| Type of Product | Timing Belt MXL Type 3.2 (Chloroprene Rubber) |
| Country of Origin | Japan |
| No. of Teeth | 515 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
515MXL3.2 |
Type of Product |
Timing Belt MXL Type 3.2 (Chloroprene Rubber) |
Country of Origin |
Japan |
No. of Teeth |
515 |
Belt shape |
MXL |
Operating Temperature Range |
-30 to 80℃ |
Type |
Standard |
Belt pitch circumference (mm) |
1046.48 |
Minimum Pulley diameter (mm) |
6 |
Monotaro ID |
47904044 |
Belt nominal width |
3.2 |
Tooth pitch (mm) |
2.032 |
Height (mm) |
1.1100000000000001 |
Maximum Speed (m/sec) |
30 |
Belt width (mm) |
3.2 |
Belt Material |
Chloroprene rubber |
Name of Manufacturer/Packer/Importer |
Mitsuboshi Belting Co., Ltd. |
Import Country |
Direct Import from Japan |
