| Model No | 569MXL3.2 |
| Type of Product | Timing Belt MXL Type 3.2 (Chloroprene Rubber) |
| Country of Origin | JAPAN |
| No. of Teeth | 569 |
Model No |
569MXL3.2 |
Type of Product |
Timing Belt MXL Type 3.2 (Chloroprene Rubber) |
Country of Origin |
JAPAN |
No. of Teeth |
569 |
Belt shape |
MXL |
Operating Temperature Range |
-30 to 80℃ |
Type |
Standard |
Belt pitch circumference (mm) |
1156.21 |
Minimum Pulley diameter (mm) |
6 |
Monotaro ID |
47905225 |
Belt nominal width |
3.2 |

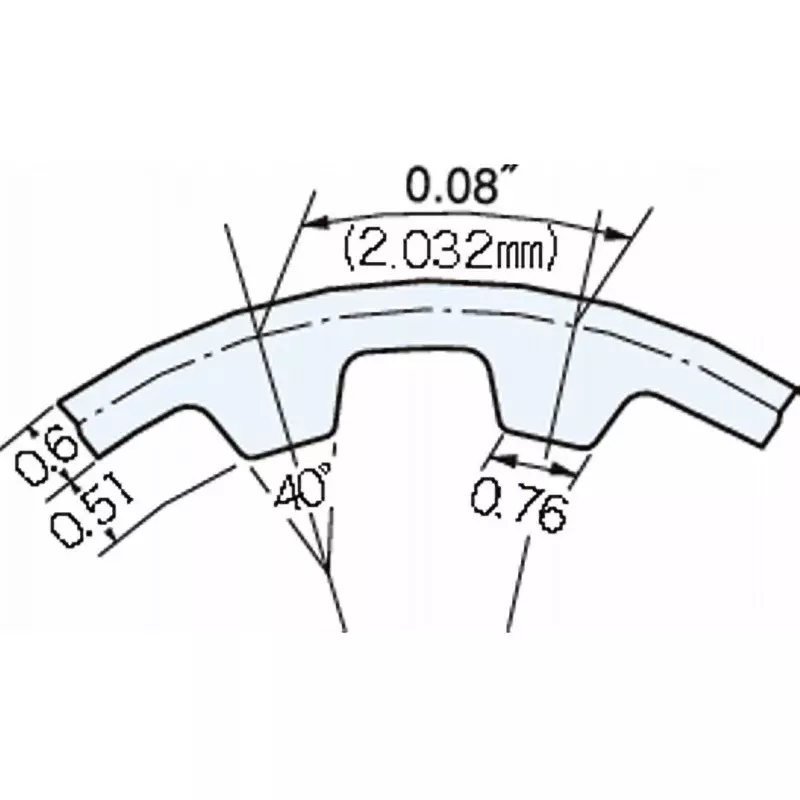

Tooth pitch (mm) |
2.032 |
Height (mm) |
1.1100000000000001 |
Maximum Speed (m/sec) |
30 |
Belt width (mm) |
3.2 |
Belt Material |
Chloroprene rubber |
Name of Manufacturer/Packer/Importer |
Mitsuboshi Belting Co., Ltd. |
Import Country |
Direct Import from Japan |
