Ships within 25 days
View
View
View
View
| Model No | 230H100 |

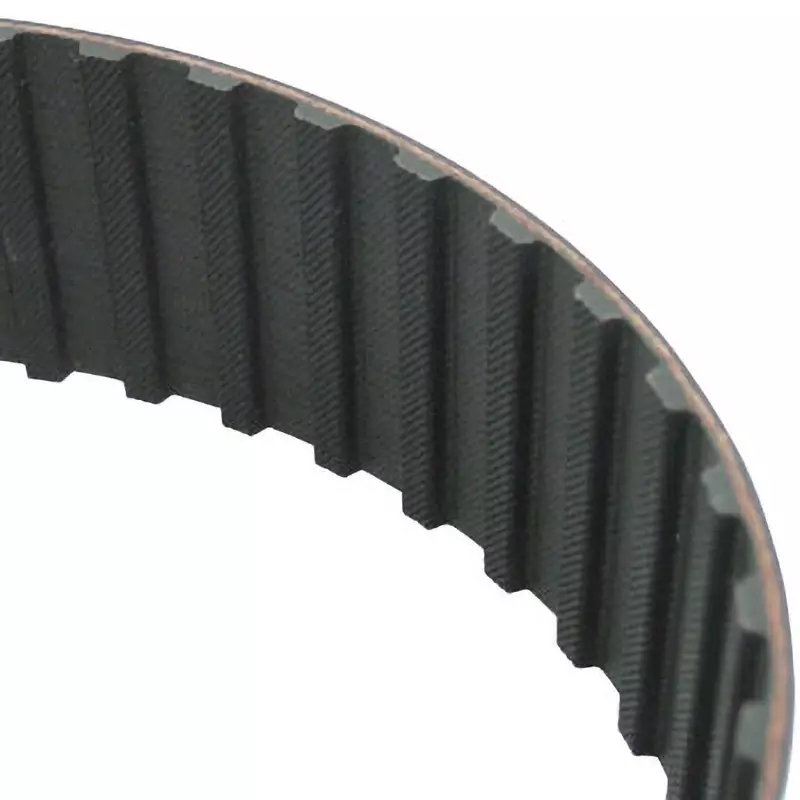

| Type of Product | Timing Belt |
| Length | 575 mm |
| Country of Origin | JAPAN |
Model No |
230H100 |
Type of Product |
Timing Belt |
Length |
575 mm |
Country of Origin |
JAPAN |
Nominal Length of Belt |
58.42 cm |
Maximum Speed |
30 m/sec |
Belt shape |
H |

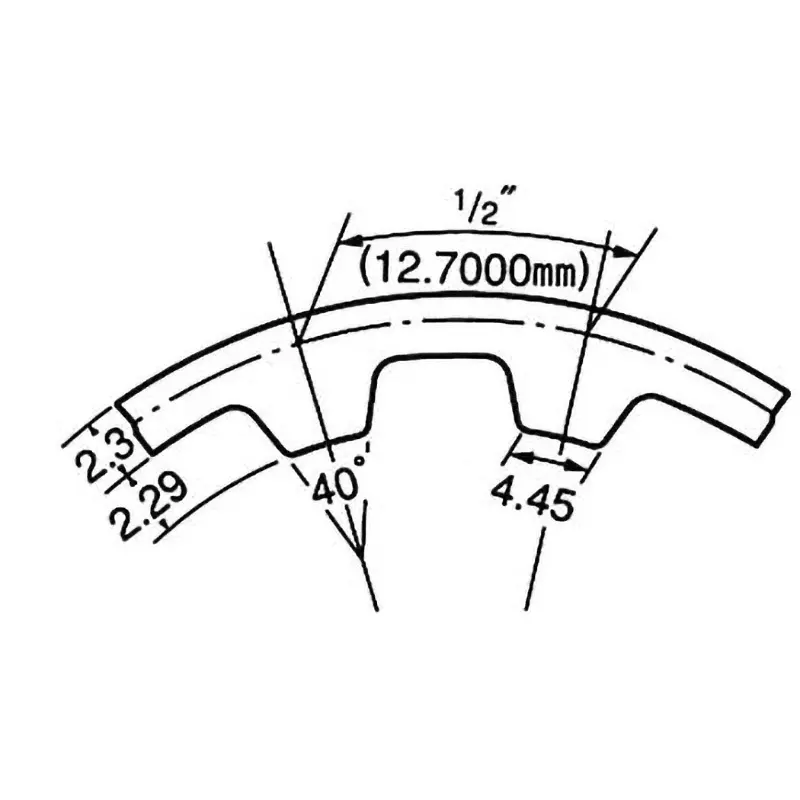

Tooth Pitch |
12.7 mm |
Operating Temperature Range |
-30～90 °C |
Type |
Timing Belt |
Belt pitch circumference (mm) |
584.2 mm |
Minimum Pulley diameter (mm) |
57 mm |
Monotaro ID |
9999884 |
Belt nominal width |
100 mm |
Height |
4.59 mm |
Belt width (mm) |
25.4 mm |
Belt Material |
Rubber |
Nominal Length of Belt (inch) |
23 inch |
No.of Teeth |
46 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
