| Model No | 156XL025 |
| Type of Product | Timing Belt XL Type (Chloroprene Rubber) |
| Country of Origin | Japan |
| No. of Teeth | 78 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
156XL025 |
Type of Product |
Timing Belt XL Type (Chloroprene Rubber) |
Country of Origin |
Japan |
No. of Teeth |
78 |
Belt shape |
XL |
Operating Temperature Range |
-30 to 90℃ |
Type |
Standard |
Belt pitch circumference (mm) |
396.24 |
Minimum Pulley diameter (mm) |
16 |
Monotaro ID |
47873007 |
Belt nominal width |
25 |

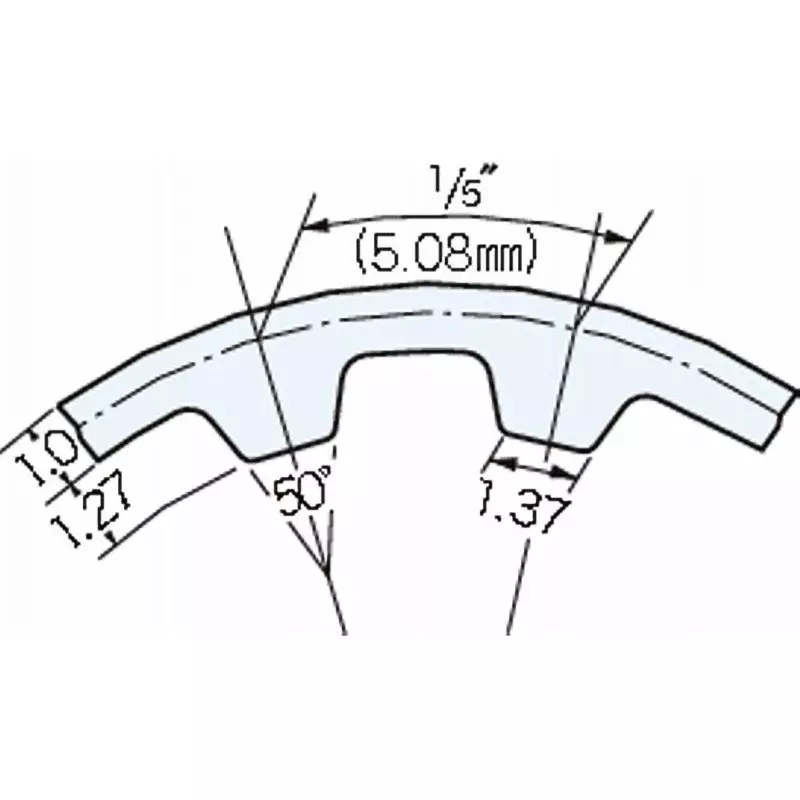

Tooth pitch (mm) |
5.08 |
Height (mm) |
2.27 |
Maximum Speed (m/sec) |
30 |
Belt width (mm) |
6.4 |
Belt Material |
Chloroprene rubber |
Nominal Length of Belt (inch) |
15.6 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi Belting Co., Ltd. |
Import Country |
Direct Import from Japan |
