| Monotaro ID | 37723043 |
| Type of Product | Toggle Switch |
| Model No | ET115E12-Z |
| Terminal Shape | Solder terminal |
Monotaro ID |
37723043 |
Type of Product |
Toggle Switch |
Model No |
ET115E12-Z |
Terminal Shape |
Solder terminal |
Rating |
AC 125 V 15 Amp, AC 250 V 10 Amp |
No. of Pole |
1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Contact Specifications |
Single pole double throw |
Pack of |
10 Pcs |
Name of Manufacturer/Packer/Importer |
Nidec Components (formerly Nidec Copal Electronics/Fujisoku) |
Switch Type |
ON-OFF-ON connection terminal: (2-3) - (2-1) |
Contact Resistance (ohm) |
(Initial) 20 or less (DC2 V 100 mA) |
Insulation Resistance (MOhm) |
100 or more (DC 500 V) |
Withstand Voltage |
1500V AC for 1 minute |
Mounting Hole Diameter (Φmm) |
12.5, 12.3 |
Current Capacity |
AC：15/10 |
RoHS Directive |
Correspondence |
Included Components |
2 lock nuts, 1 lock washer, 1 locking ring |
Standard |
UL, CSA |
Rated Voltage (V) |
AC ：125/250 |
Surface Treatment |
(Lock nut x 1) Nickel plated (Lock nut x 1 / Lock washer / Locking ring) Zinc plated trivalent chromate treatment |

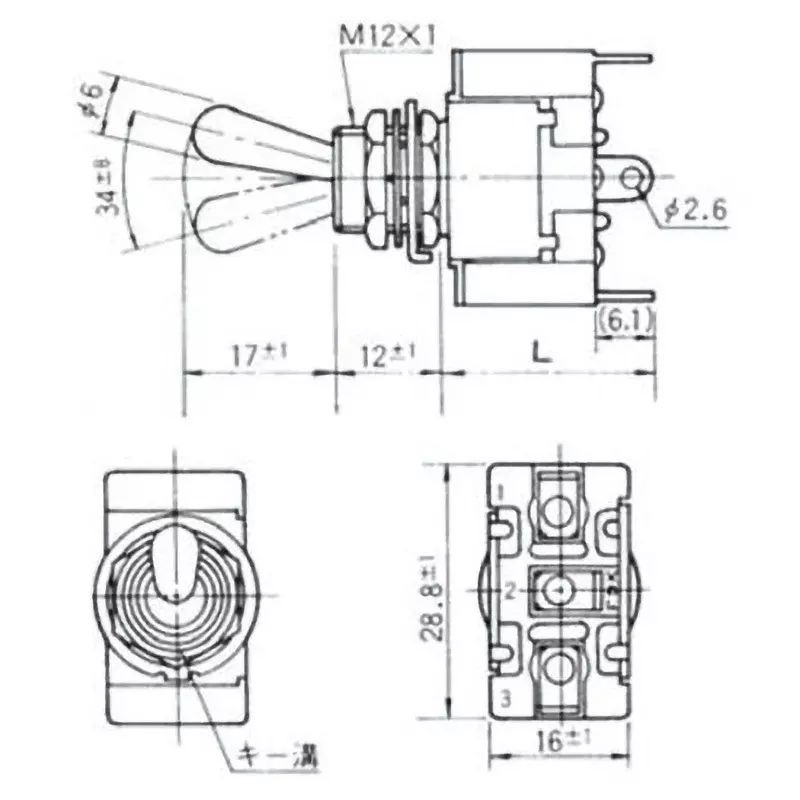

Dimension L (mm) |
24.6±1 |
Service Life |
(Electrical) 30000 times |
Mounting Screw Diameter |
M12x1 |
