Ships within 19 days
View
View
View
View
| Operating Temperature Range | -30 to +85 |
| Monotaro ID | 37722194 |
| Type of Product | Toggle Switch |
| Model No | 8A1012-Z |
Operating Temperature Range |
-30 to +85 |
Monotaro ID |
37722194 |
Type of Product |
Toggle Switch |
Model No |
8A1012-Z |
Terminal Shape |
PC terminal |
Type |
Standard toggle |
Rating |
AC 125 V, 6A/250 V, 3 Amp |
No. of Pole |
1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Contact Specifications |
Single pole double throw |
Pack of |
10 Pcs |
Name of Manufacturer/Packer/Importer |
Nidec Components (formerly Nidec Copal Electronics/Fujisoku) |
Switch Type |

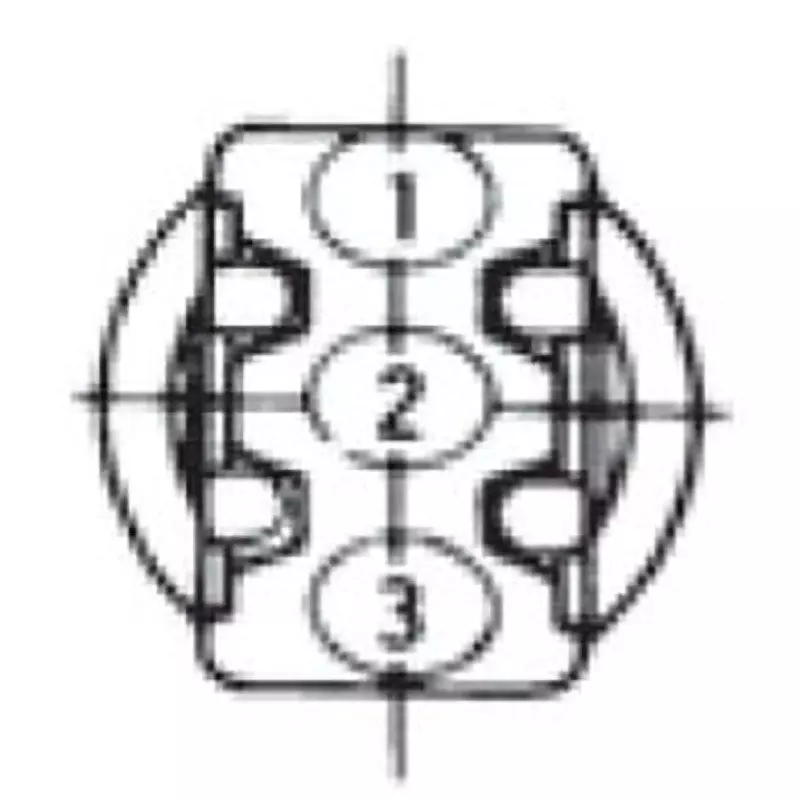

ON-ON connection terminals: (2-3) - (2-1) |
Contact Resistance (ohm) |
10 or less (DC2-4V 1A) |
Insulation Resistance (MOhm) |
1000(DC 500 V) |

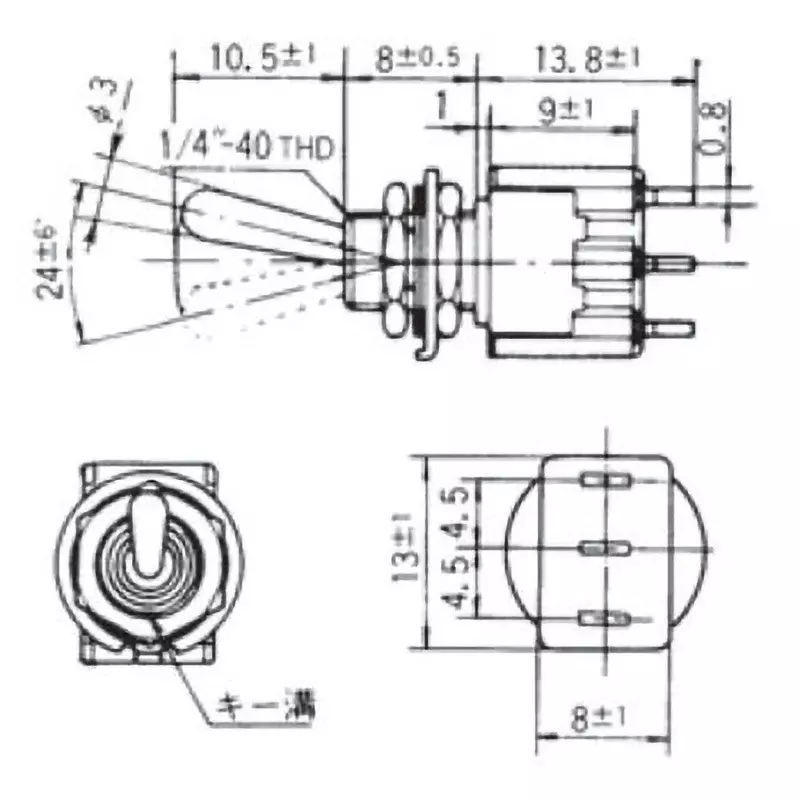

Mounting Hole Diameter (Φmm) |
6.5, 6.4 |
Current Capacity |
AC：6/3, DC：4 |
RoHS Directive |
Correspondence |
Included Components |
2 lock nuts, 1 lock washer, 1 locking ring |
Standard |
UL, CSA |
Rated Voltage (V) |
AC ：125/250, DC ：30 |
Storage Temperature Range |
-40 to +85 |
Contact |
Silver contacts |
Surface Treatment |
(Lock nut) Nickel plating, (Lock washer / locking ring) Zinc plating trivalent chromate treatment |
