| Operating Temperature Range | -30 to 85 |
| Monotaro ID | 40184207 |
| Rated Current (A) | 38780 |
| Type of Product | Toggle Switch |
Operating Temperature Range |
-30 to 85 |
Monotaro ID |
40184207 |
Rated Current (A) |
38780 |
Type of Product |
Toggle Switch |
Model No |
8J2011-Z |
Terminal Shape |
Solder terminal |
Operation Mechanism |
Short Toggle |
Contact Material |
Brass/Copper + Silver |
No. of Pole |
2-pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Series |
8 |
Name of Manufacturer/Packer/Importer |
Nidec Components (formerly Nidec Copal Electronics/Fujisoku) |
Switch Type |

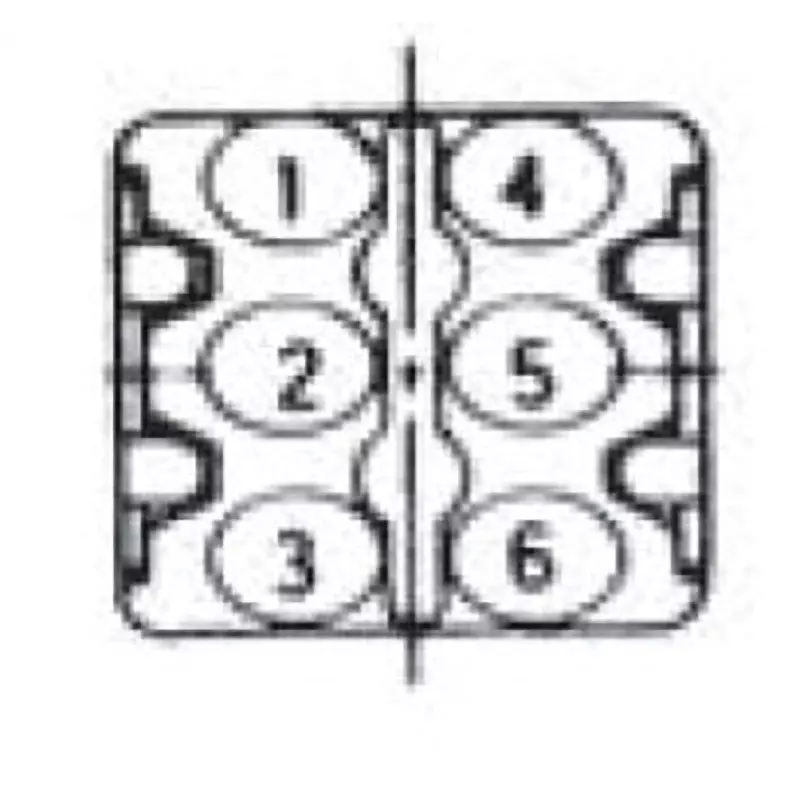

ON-ON connection terminal: (2-3, 5-6)-(2-1, 5-4) |
Insulation Resistance (MOhm) |
(Minimum) 1000 (DC 500 V) |
RoHS Directive |
Correspondence |
Included Components |
2 lock nuts, 1 lock washer, 1 locking ring |
Withstand voltage (V / min) |
AC1500 |
Standard |
UL, CSA standard certified product |
Rated Voltage (V) |
AC 125/AC 250/DC 30 |
Storage Temperature Range |
40 to 85 |
Surface Treatment |
(Lock nut) Nickel plating, (Lock washer / locking ring) Zinc plating trivalent chromate treatment |
Maximum Contact Resistance |
10 |
Parting |
Ag |
Panel Thickness (mm) |
(Maximum) With locking ring: 2.5, Without locking ring: 3.5 |
