| Operating Temperature Range | -30 to 85℃ |
| Monotaro ID | 48434735 |

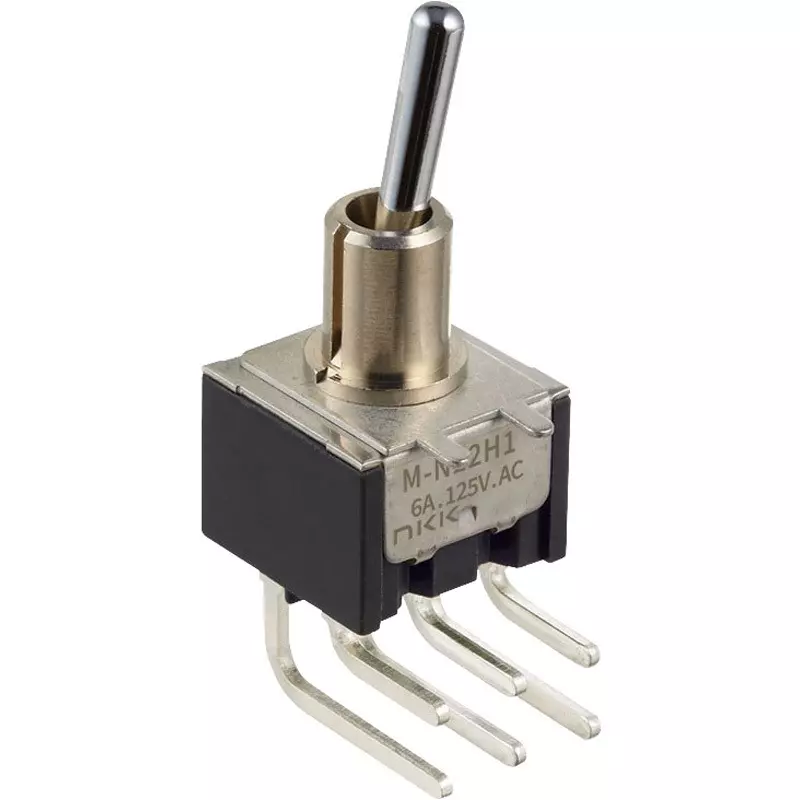

| Type of Product | Toggle Switch |
| Model No | M-N24H4S |
Operating Temperature Range |
-30 to 85℃ |
Monotaro ID |
48434735 |
Type of Product |
Toggle Switch |
Model No |
M-N24H4S |
Terminal Shape |
PC-H |
Operation Mechanism |
Basic Lever |
Contact Resistance |
20 mΩ or less (at 20 mV 10 mA) |
No. of Pole |
1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mechanical Durability |
50000 times or more for Switching |
Contact Specifications |
Gold plate |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Functional Operation |
ON-ON-ON |
Insulation Resistance (GΩ) |
1 or more (DC 500 V) |
Heat Resistance |
When using a soldering iron: Tip temperature: 390°C or less, Soldering time: 4 seconds or less, Number of times: 2 (after returning to room temperature)<br> When using a soldering bath: Preheat temperature (T1): 110°C or less, Preheat time (t1): 40 seconds or less, Peak temperature (T2): 270°C or less, Peak temperature duration (t2 + t3): 6 seconds or less, Specified board thickness: 1.6 mm, Number of times: 2 times (after returning to room temperature) |
Electrical Durability for Opening and Closing |
50000 times or more |
Current Capacity |
0.4 VA MAX, 28 V MAX |
RoHS Directive |
Corresponding to 10 Substances |
Circuit Type |
Single Pole 3 Throw |
Included Components |
Caps (AT-415, AT-444) |
