| Operating Temperature Range | -30 to 70℃ |
| Monotaro ID | 38444226 |

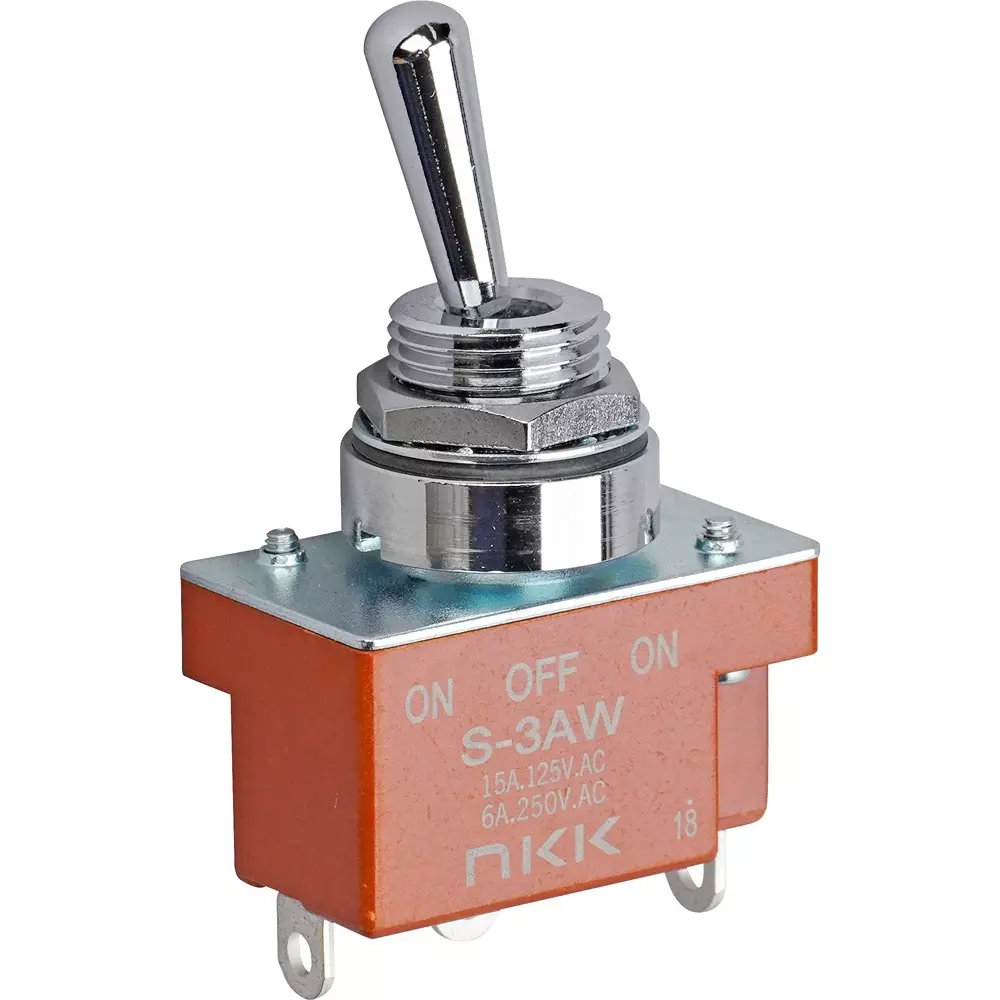

| Type of Product | Small Toggle Switch |
| Model No | S-3AW |
Operating Temperature Range |
-30 to 70℃ |
Monotaro ID |
38444226 |
Type of Product |
Small Toggle Switch |
Model No |
S-3AW |
Terminal Shape |
Solder |
No. of Pole |
1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mechanical Durability |
50000 Times Or More |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Functional Operation |
ON-OFF-ON |
Contact Resistance (ohm) |
10 or less (DC2 to 4V at 100 mA) |
Circuits |
Single Pole Double Throw |
Withstand Voltage |
2.0 kV AC for 1 minute or more |

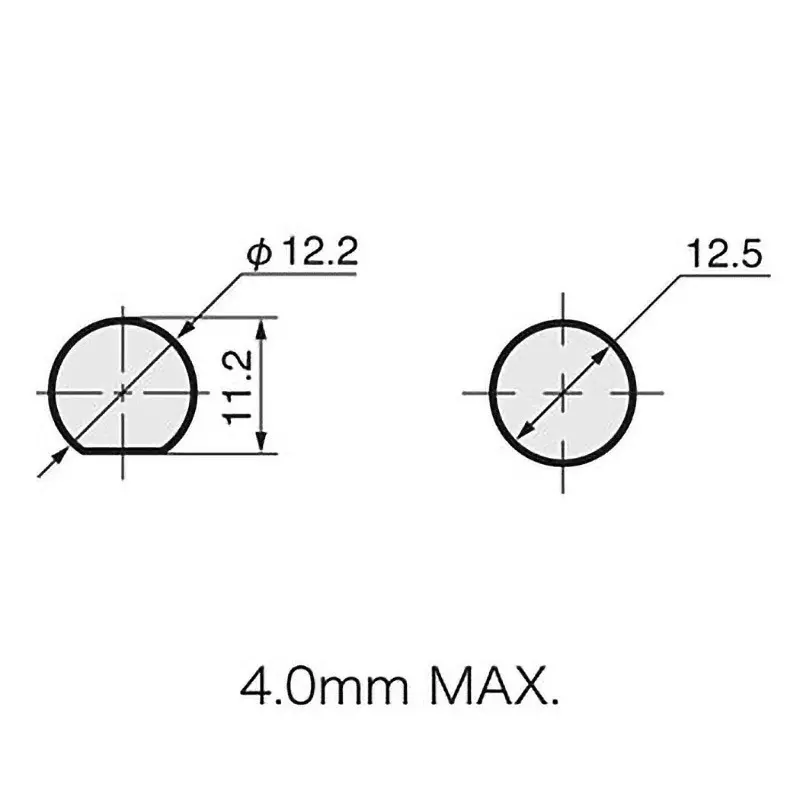

Mounting Hole Diameter (Φmm) |
12.2, 12.5 |
Insulation Resistance (GΩ) |
1 or more (DC 500 V) |
Heat Resistance |
When using a soldering iron: Tip temperature: 390°C or less; Soldering time: 4 seconds or less; Number of times: 2 times (after returning to room temperature) |
Lever Inclining Angle (°) |
28±4 |
Electrical Durability for Opening and Closing |
25,000 times or more |
Included Components |
O-ring (AT-537), internal tooth washer (AT-508), hexagon nut (AT-503) |
Trusco Part No. |
413-2793 |
Case Material |
Melamine Phenol Resin |
Maximum Mounting Panel Thickness (mm) |
4 |
Lever Material |
Copper alloy |
Standard |
UL, C-UL, PSE, IP68 |
