| Operating Temperature Range | -10 to 70℃ |
| Monotaro ID | 38445154 |

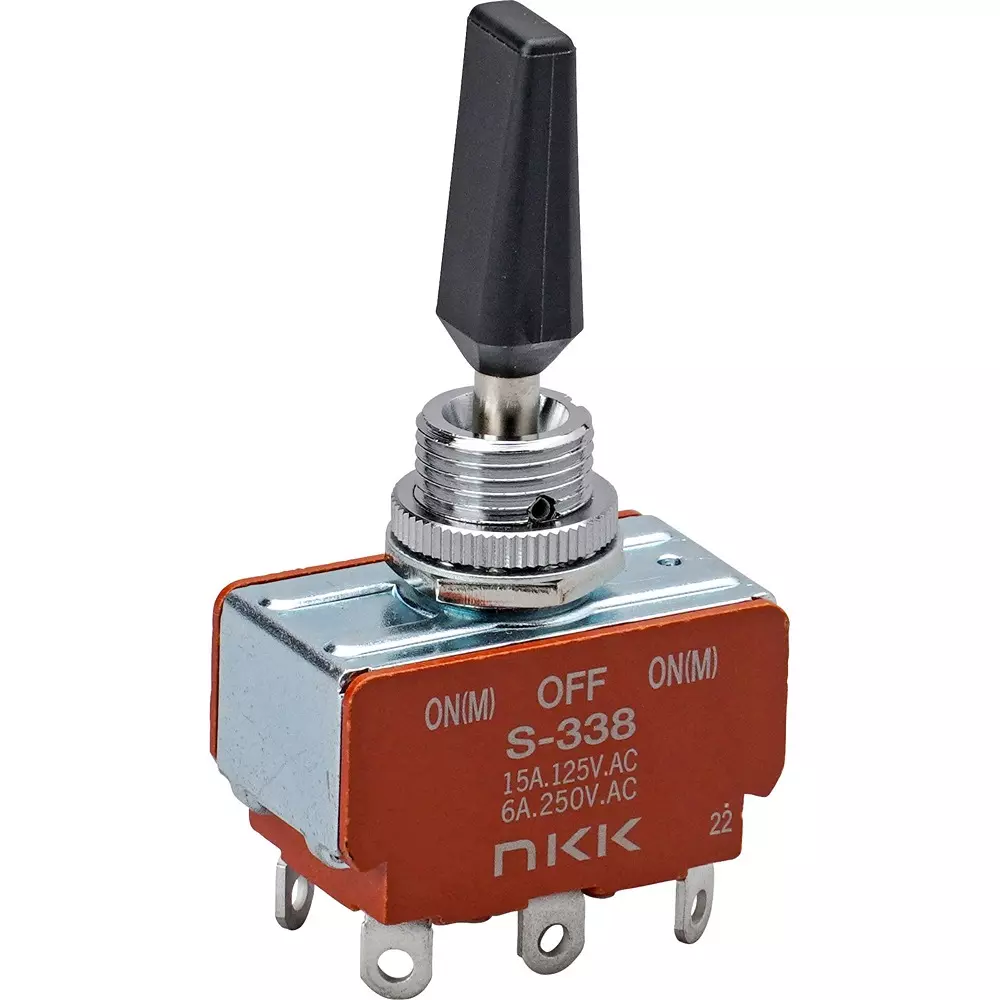

| Type of Product | Plastic Lever Type Small Toggle Switch |
| Model No | S-338R |
Operating Temperature Range |
-10 to 70℃ |
Monotaro ID |
38445154 |
Type of Product |
Plastic Lever Type Small Toggle Switch |
Model No |
S-338R |
Terminal Shape |
Solder |
Insulation Resistance |
DC 500 V, 1 GΩ or more |
No. of Pole |
2 |
Operation Type |
Momentary |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mechanical Durability |
50000 Times Or More |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Functional Operation |
<On>-Off-<On> |
Contact Resistance (ohm) |
less than 10 |
Circuits |
2-pole double throw |
Withstand Voltage |
2.0 kV AC for 1 minute or more |

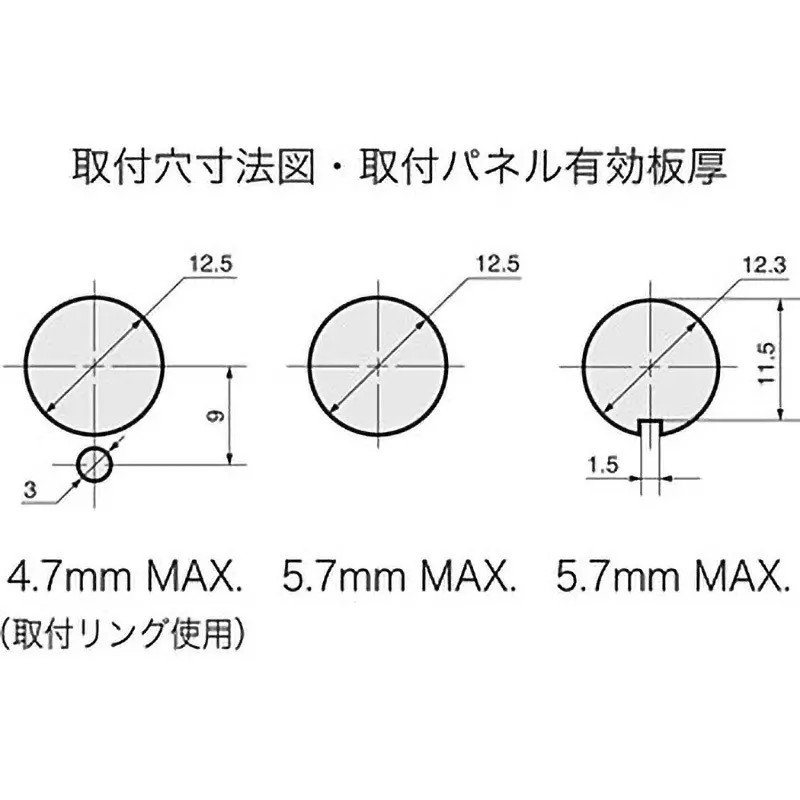

Mounting Hole Diameter (Φmm) |
12.5, 12.3 |
Optional Accessories |
Mounting ring (AT-506) |
Insulation Resistance (GΩ) |
1 or more (DC 500 V) |
Heat Resistance |
When using a soldering iron: Tip temperature: 390°C or less; Soldering time: 4 seconds or less; Number of times: 2 times (after returning to room temperature) |
Lever Inclining Angle (°) |
25 |
Electrical Durability for Opening and Closing |
25,000 times or more |
Included Components |
Round nut (AT-504), internal tooth washer (AT-508), hexagon nut (AT-527) |
Maximum Mounting Panel Thickness (mm) |
5.7 |
Standard |
UL, C-UL |
Inductive Load (A) |
8 (AC 125 V) (power factor = 0.6) |
