| Operating Temperature Range | -30 to 85℃ |
| Monotaro ID | 75798423 |
| Type of Product | Short Lever Type Toggle Switch |
| Model No | A-12JB |
Operating Temperature Range |
-30 to 85℃ |
Monotaro ID |
75798423 |
Type of Product |

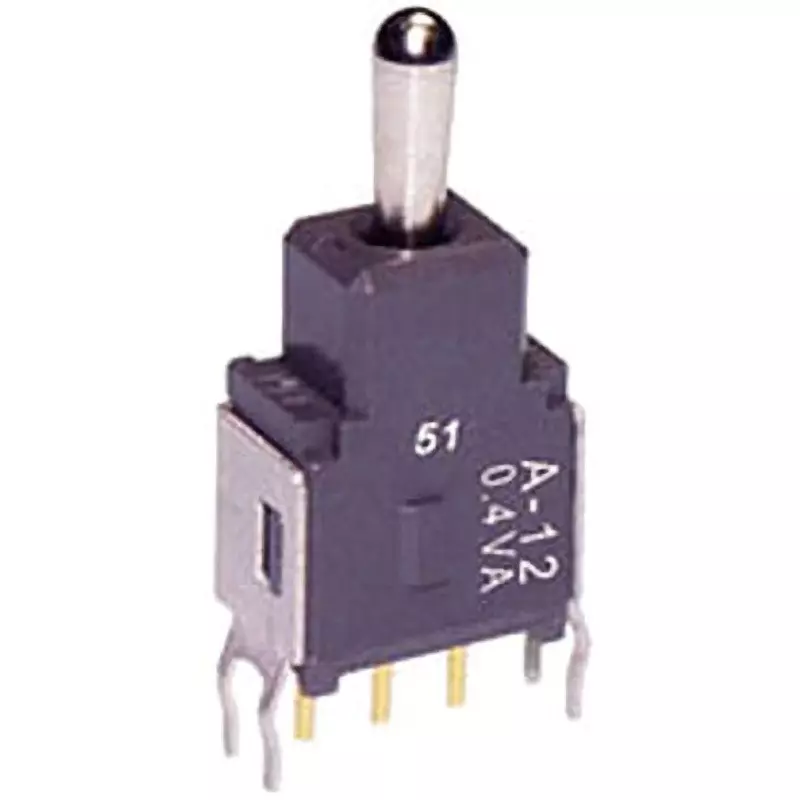

Short Lever Type Toggle Switch |
Model No |
A-12JB |
Terminal Shape |
Bracket mount |
Type |
Fully washed |
Operation Mechanism |
Short lever |
No. of Pole |
1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mechanical Durability |
100000 Times Or More |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Breakdown Voltage |
More than 10 kV |
Functional Operation |
On-On |
Contact Resistance (ohm) |
50 or less (at 20 mV 10 mA) |
Insulation Resistance (MOhm) |
500 or more (DC 500 V) |
Circuits |
Single Pole Double Throw |
Withstand Voltage |
AC 500 V 1 minute or more |
Optional Accessories |
Color cap (AT-4064), Mounter (AT-530), (AT-531) |
Heat Resistance |
When using a soldering iron: Tip temperature: 350°C or less, Soldering time: 3 seconds or less, Number of times: 1. When using a soldering bath: Preheat temperature (T1): 110°C or less, Preheat time (t1): 40 seconds or less, Peak temperature (T2): 270°C or less, Peak temperature duration (t2 + t3): 6 seconds or less, Specified board thickness: 1.6 mm, Number of times: 2 times (after returning to room temperature) |
Lever Inclining Angle (°) |
26±4 |
Electrical Durability for Opening and Closing |
50000 Times Or More |
Current Capacity |
(AC/DC common), 0.4VAMAX, 28VMAX (applicable voltage range: 20 mV to 28V, applicable current range: 0.1 mA to 0.1A), Maximum 28V 0.1A / Durability is 10,000 times, minimum 20mV 0.1μA switching is possible. (For currents less than 0.1mA, the standard value for contact resistance does not apply.) |
RoHS Directive |
Correspondence |
Withstand voltage (V / min) |
AC 500 or higher |
