| Operating Temperature Range | -10 to 70℃ |
| Monotaro ID | 49020946 |

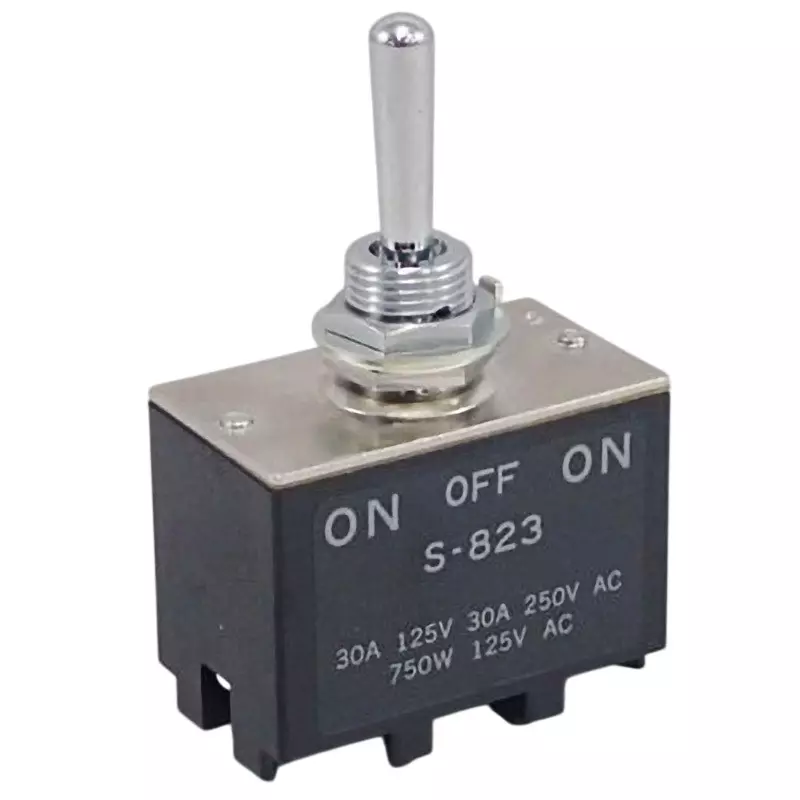

| Type of Product | Small Toggle Switch |
| Model No | S-823 |
Operating Temperature Range |
-10 to 70℃ |
Monotaro ID |
49020946 |
Type of Product |
Small Toggle Switch |
Model No |
S-823 |
Terminal Shape |
Screw |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mechanical Durability |
50000 Times Or More |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Functional Operation |
ONーOFFーON |
Contact Resistance (ohm) |
10 or less (at DC 5 V 1 Amp) |
Circuits |
2-pole double throw |
Withstand Voltage |
2.0 kV AC for 1 minute or more |
Mounting Hole Diameter (Φmm) |
12.5 |
Insulation Resistance (GΩ) |
1 or more (DC 500 V) |
Lever Inclining Angle (°) |
(α)：28 |
Electrical Durability for Opening and Closing |
25,000 times or more |
Current Capacity |
Resistive load / 30A 125 V AC, 30A 250 V AC, 30A 30 V DC, 1A 125 V DC; Inductive load / 30A 125 V AC, 15 Amp 250 V AC (power factor = 0.6) |
RoHS Directive |
Correspondence |
Included Components |
Hex nut (AT-503, aT-527), internal tooth washer (AT-508), mounting ring (AT-506) |
Trusco Part No. |
413-2831 |
Standard |
RoHS, UL, C-UL, CSA |
