| Operating Temperature Range | -10 to 70℃ |
| Monotaro ID | 75803445 |

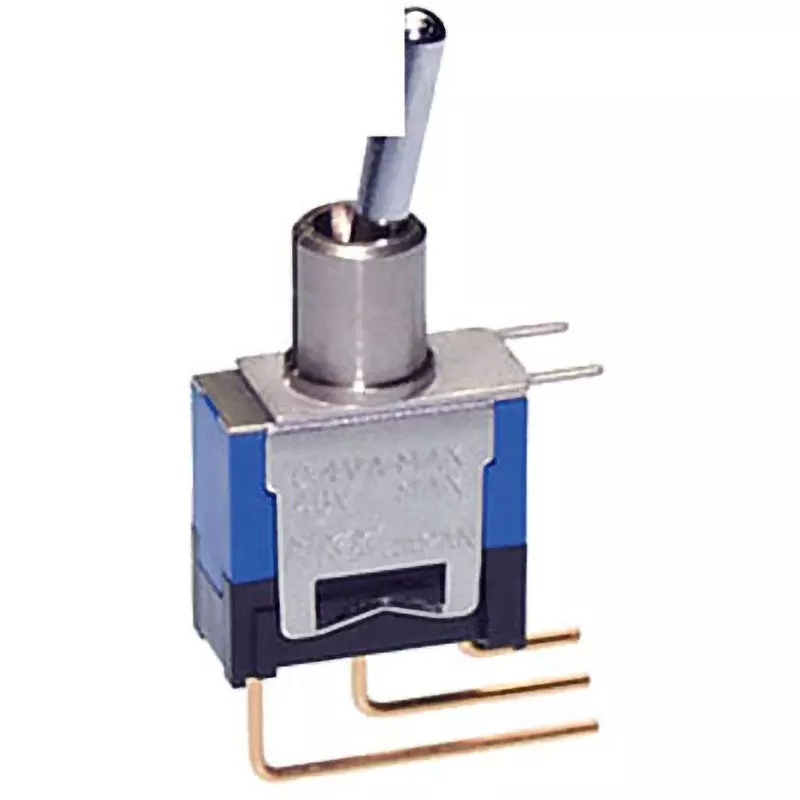

| Type of Product | Basic Lever Type Toggle Switch |
| Model No | D2-2012V |
Operating Temperature Range |
-10 to 70℃ |
Monotaro ID |
75803445 |
Type of Product |
Basic Lever Type Toggle Switch |
Model No |
D2-2012V |
Terminal Shape |
PC-V |
Insulation Resistance |
DC 500 V 1 GΩ or more |
Operation Mechanism |
Basic lever |
No. of Pole |
1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mechanical Durability |
100000 Times Or More |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Functional Operation |
On-On |
Contact Resistance (ohm) |
50 or less (at 20 mV 10 mA) |
Circuits |
Single Pole Double Throw |
Withstand Voltage |
1.0 kV AC (between terminal and terminal) for 1 minute or longer 1.5 kV AC (between terminal and ground) for 1 minute or longer |
Optional Accessories |
Caps (AT-415, AT-444) |
Insulation Resistance (GΩ) |
1 or more (DC 500 V) |
Heat Resistance |
When using a soldering iron: Tip temperature: 350°C or less, Soldering time: 3 seconds or less, Number of times: 1. When using a soldering bath: Preheat temperature (T1): 110°C or less, Preheat time (t1): 40 seconds or less, Peak temperature (T2): 270°C or less, Peak temperature duration (t2 + t3): 6 seconds or less, Specified board thickness: 1.6 mm, Number of times: 2 times (after returning to room temperature) |
Lever Inclining Angle (°) |
24±4 |
Electrical Durability for Opening and Closing |
50000 Times Or More |
Current Capacity |
(AC/DC Common); 0.4 VA Max, 48V Max (Applicable Voltage Range: 20 mV to 48V, Applicable Current Range: 0.1 mA to 0.1A) |
RoHS Directive |
Correspondence |
Withstand voltage (V / min) |
AC 1k or more (between terminals), AC 1.5k or more (between terminals and earth) |
