| Operating Temperature Range | -25 to 55℃ |
| Monotaro ID | 18743743 |

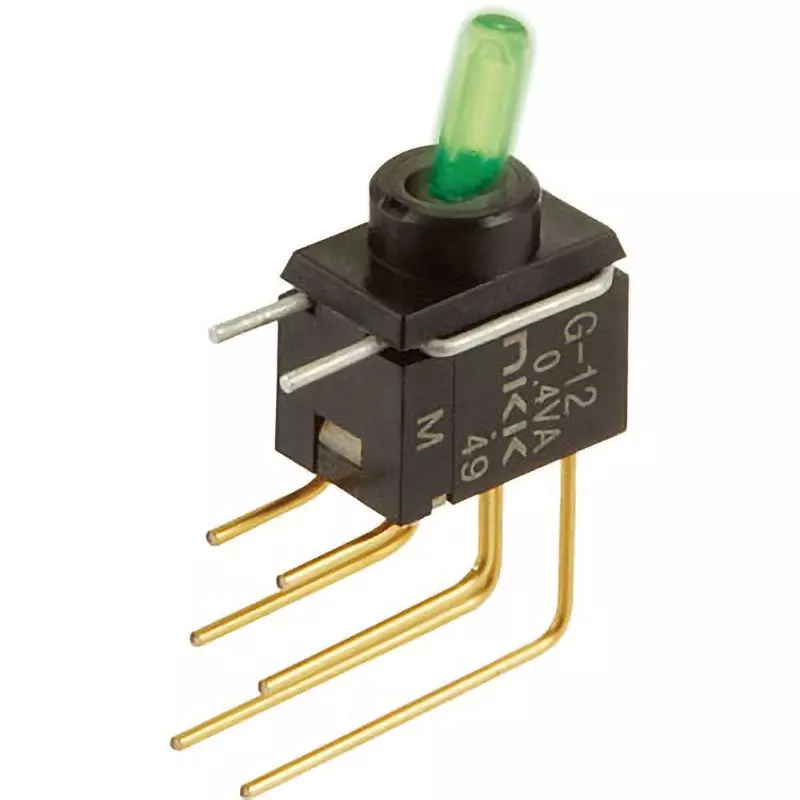

| Type of Product | Fully Illuminated Toggle Switch |
| Model No | G-12CVM |
Operating Temperature Range |
-25 to 55℃ |
Monotaro ID |
18743743 |
Type of Product |
Fully Illuminated Toggle Switch |
Model No |
G-12CVM |
Terminal Shape |
PC-V |
Type |
Fully washable, illuminated type |
Operation Mechanism |
Transparent lever |
No. of Pole |
1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mechanical Durability |
100000 Times Or More |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Functional Operation |
On-On |
Contact Resistance (ohm) |
80 or less (at 20 mV 10 mA), Contact points excluding conductive resistance are 50 or less |
Insulation Resistance (MOhm) |
500 or more (DC 500 V) |
Circuits |
Single Pole Double Throw |
Heat Resistance |
When using a soldering iron: Tip temperature: 390°C or less, Soldering time: 4 seconds or less, Number of times: 2 (after returning to room temperature)<br> When using a soldering bath: Preheat temperature (T1): 110°C or less, Preheat time (t1): 40 seconds or less, Peak temperature (T2): 270°C or less, Peak temperature duration (t2 + t3): 6 seconds or less, Specified board thickness: 1.6 mm, Number of times: 2 times (after returning to room temperature) |
Lever Inclining Angle (°) |
28±4 |
Electrical Durability for Opening and Closing |
100000 Times Or More |
Current Capacity |
(AC/DC common), 0.4 VA MAX, 28V MAX (Applicable voltage range: 20 mV to 28V, applicable current range: 0.1 mA to 0.1A), Maximum 28V 0.1A / Durability is 10,000 times, minimum 20mV 0.1μA switching is possible. (For currents less than 0.1mA, the standard value for contact resistance does not apply.) |
RoHS Directive |
Correspondence |
Specifications |
Brightness level 1 |
Withstand voltage (V / min) |
AC 500 or higher |
LED Color |
Green |
