| Operating Temperature Range | -10 to 70℃ |
| Monotaro ID | 38444296 |
| Type of Product | Toggle Switch |
| Model No | S-303T |
Operating Temperature Range |
-10 to 70℃ |
Monotaro ID |
38444296 |
Type of Product |
Toggle Switch |
Model No |
S-303T |
Terminal Shape |
Screw |
Operation Mechanism |
Basic lever |
No. of Pole |
1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mechanical Durability |
50000 Times Or More |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Functional Operation |
ON-OFF-ON |
Contact Resistance (ohm) |
10 or less (DC2 to 4V at 100 mA) |
Withstand Voltage |
2.0 kV AC (1 minute or more) |

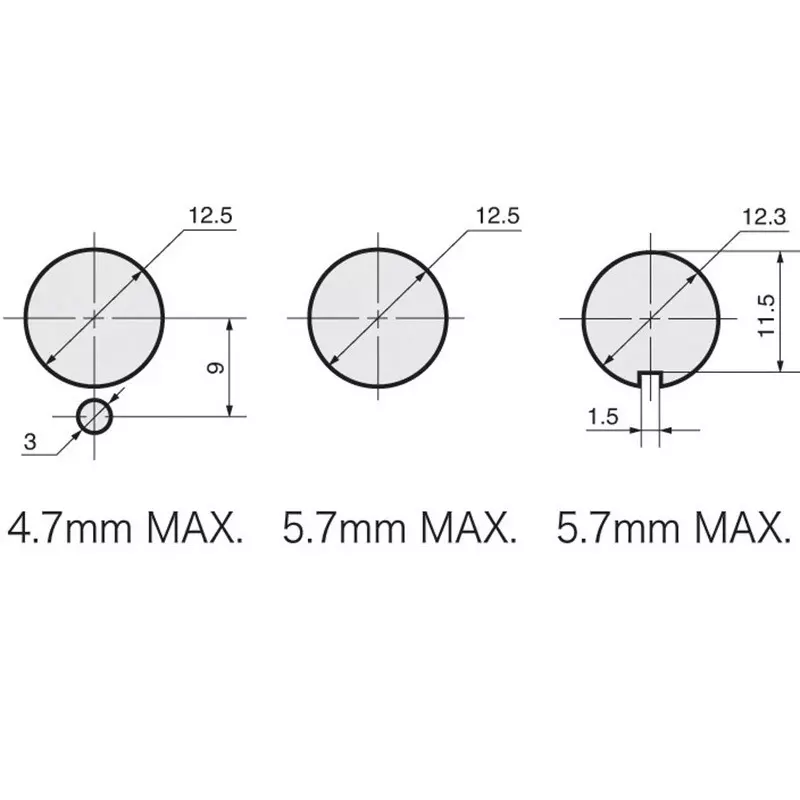

Mounting Hole Diameter (Φmm) |
12.5, 12.3 |
Optional Accessories |
Waterproof cap (AT-401, AT-402, AT-4181) |
Insulation Resistance (GΩ) |
1 or more (DC 500 V) |
Heat Resistance |
When using a soldering iron: Tip temperature: 390°C or less; Soldering time: 4 seconds or less; Number of times: 2 times (after returning to room temperature) |
Lever Inclining Angle (°) |
32 |
Electrical Durability for Opening and Closing |
25,000 times or more |
Included Components |
Hex nut (AT-503, aT-527), internal tooth washer (AT-508), mounting ring (AT-506) |
Trusco Part No. |
470-7559 |
Standard |
UL, C-UL, PSE |
Inductive Load (A) |
10 (AC 125 V) (power factor = 0.6) |
