| Operating Temperature Range | -30 to 85℃ |
| Monotaro ID | 75803217 |

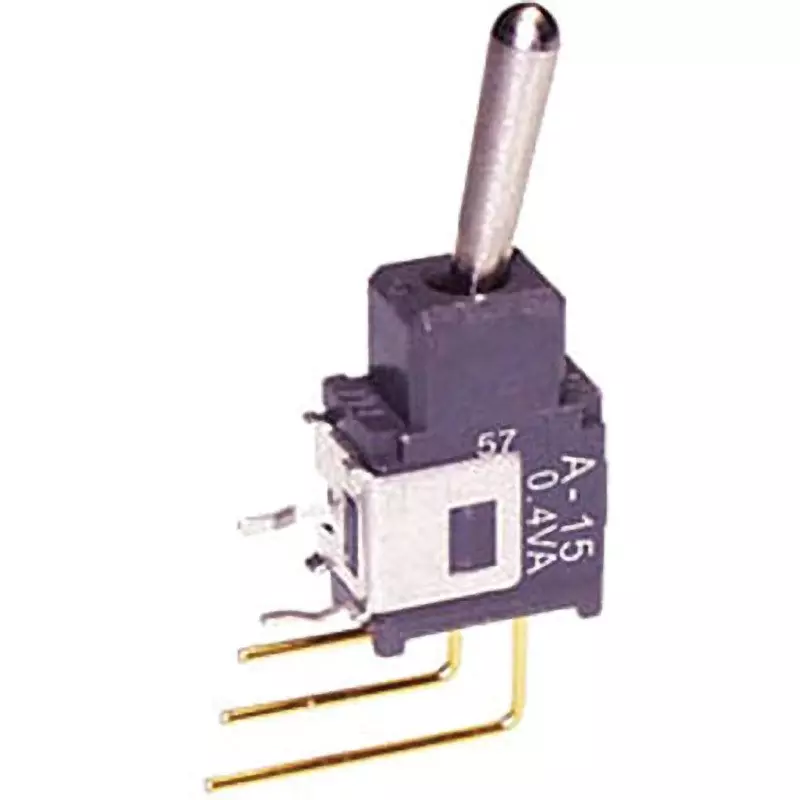

| Type of Product | Basic Lever Type Toggle Switch |
| Model No | A-15AV |
Operating Temperature Range |
-30 to 85℃ |
Monotaro ID |
75803217 |
Type of Product |
Basic Lever Type Toggle Switch |
Model No |
A-15AV |
Terminal Shape |
PC-V |
Insulation Resistance |
DC 500 V 500 MΩ or more |
Type |
Fully washed |
Operation Mechanism |
Basic lever |
No. of Pole |
1 |
Operation Type |
Momentary |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mechanical Durability |
50000 Times Or More |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Functional Operation |
ON-<ON> |
Contact Resistance (ohm) |
50 or less (at 20 mV 10 mA) |
Insulation Resistance (MOhm) |
500 or more (DC 500 V) |
Circuits |
Single Pole Double Throw |
Withstand Voltage |
AC 500 V 1 minute or more |
Optional Accessories |
Color cap (AT-4003), Mounter (AT-530), (AT-531) |
Heat Resistance |
When using a soldering iron: Tip temperature: 350°C or less, Soldering time: 3 seconds or less, Number of times: 1. When using a soldering bath: Preheat temperature (T1): 110°C or less, Preheat time (t1): 40 seconds or less, Peak temperature (T2): 270°C or less, Peak temperature duration (t2 + t3): 6 seconds or less, Specified board thickness: 1.6 mm, Number of times: 2 times (after returning to room temperature) |
Lever Inclining Angle (°) |
26±4 |
Electrical Durability for Opening and Closing |
50000 Times Or More |
Current Capacity |
(AC/DC common), 0.4VAMAX, 28VMAX (applicable voltage range: 20 mV to 28V, applicable current range: 0.1 mA to 0.1A), Maximum 28V 0.1A / Durability is 10,000 times, minimum 20mV 0.1μA switching is possible. (For currents less than 0.1mA, the standard value for contact resistance does not apply.) |
RoHS Directive |
Correspondence |
Current Capacity (Amps) |
Recommended AC / DC range 0.4 VA Max. 28 V Max. (Applicable voltage range 20 mV to 28V, Applicable current range 0.1 mA to 0.1A) Max 28V 0.1 When durability, it can be opened and closed with a minimum 20mV 0.1μ 10,000 times. (If the current is less than 0.1mA, the standard value of contact resistance value is excluded.) |
