| Operating Temperature Range | -30 to 85℃ |
| Monotaro ID | 75803183 |

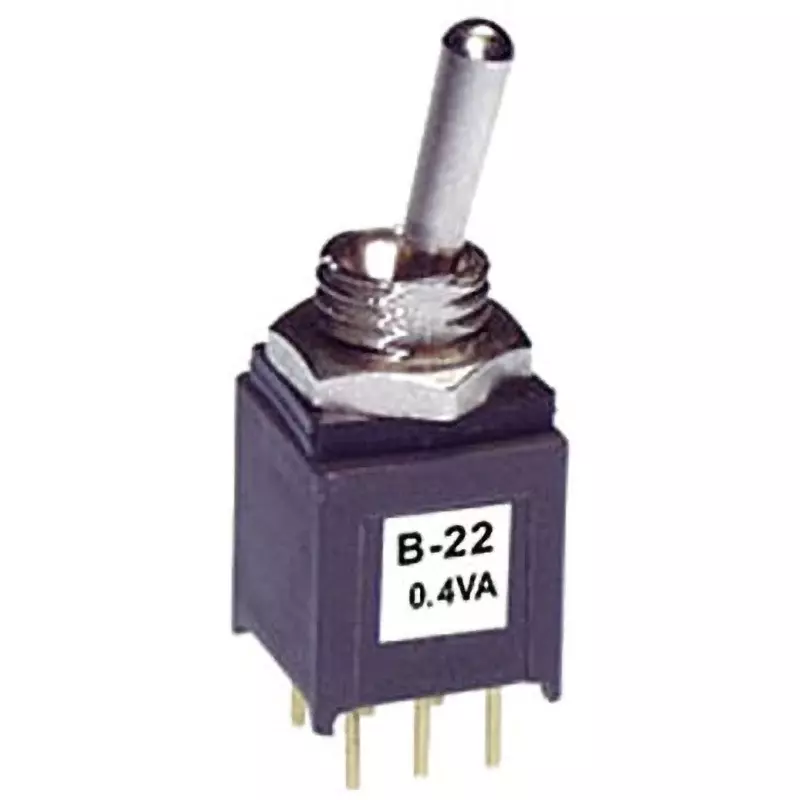

| Type of Product | Basic Lever Type Toggle Switch |
| Model No | B-22A1P |
Operating Temperature Range |
-30 to 85℃ |
Monotaro ID |
75803183 |
Type of Product |
Basic Lever Type Toggle Switch |
Model No |
B-22A1P |
Terminal Shape |
PC terminal |
Insulation Resistance |
DC 500 V 500 MΩ or more |
Operation Mechanism |
Basic lever (screw mounting type) |
No. of Pole |
2-pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mechanical Durability |
100,000 times or more |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Functional Operation |
On-On |
Contact Resistance (ohm) |
50 or less (at 20 mV 10 mA) |
Withstand Voltage |
AC 500V 1 minute or more |
Heat Resistance |
When using a soldering iron (by mounting the board) / Temperature 350°C or less within 3 seconds / When using a solder bath / Temperature 270°C or less within 5 seconds |
Lever Inclining Angle (°) |
(α) 26±4 |
Electrical Durability for Opening and Closing |
50,000 times or more |
Current Capacity |
For a maximum of 28V 0.1A, the durability is 10,000 times and a minimum of 20mV 0.1μA can be opened and closed. |
RoHS Directive |
Correspondence |
