| Operating Temperature Range | -30 to 70℃ |
| Monotaro ID | 68614178 |

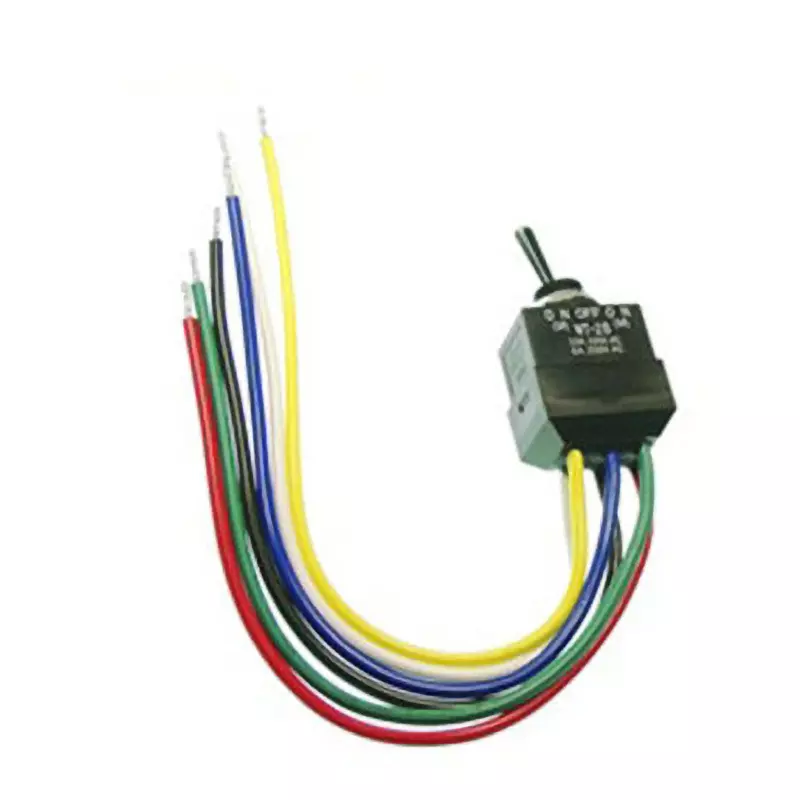

| Type of Product | Toggle Switch |
| Model No | WT-28AL |
Operating Temperature Range |
-30 to 70℃ |
Monotaro ID |
68614178 |
Type of Product |
Toggle Switch |
Model No |
WT-28AL |
Terminal Shape |
Lead Wire Seal Type |
Type |
IP67 compliant fully waterproof |
Operation Mechanism |
Basic lever |
No. of Pole |
2-Pole Double Throw |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Series |
W |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Functional Operation |
(ON)-OFF-(ON) |
Current Capacity |
(1) 10A 125 V AC, (2) 6A 250 V AC【3】10A 30 V DC |
RoHS Directive |
Correspondence |
Model Name |
WT-28AL |
Maximum Mounting Panel Thickness (mm) |
4 |
Additional Functions |
Fully waterproof |
Mounting Hole Diameter |
Φ12.5 mm |
Mounting Method |
Screw Mounting |
