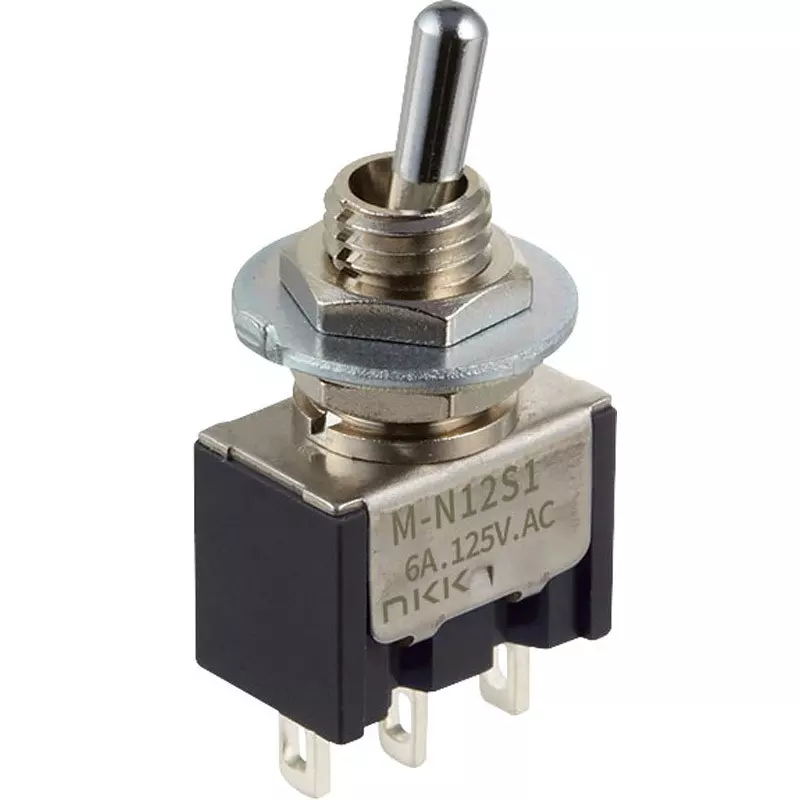

| Operating Temperature Range | -30 to 85℃ |
| Monotaro ID | 48437255 |
| Type of Product | Toggle Switch |
| Model No | M-N22S1LS |
Operating Temperature Range |
-30 to 85℃ |
Monotaro ID |
48437255 |
Type of Product |
Toggle Switch |
Model No |
M-N22S1LS |
Terminal Shape |
Solder |
Operation Mechanism |
Short Lever |
Contact Resistance |
10 mΩ or less (at DC 5 V 1 Amp) |
No. of Pole |
2 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mechanical Durability |
50000 times or more for Switching |
Contact Specifications |
Silver |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Functional Operation |
ON-ON |
Mounting Hole Diameter (Φmm) |
6.5, 6.2 |
Optional Accessories |
Round nut (AT-501) |
Insulation Resistance (GΩ) |
1 or more (DC 500 V) |
Heat Resistance |
When using a soldering iron: Tip temperature: 350°C or less, Soldering time: 3 seconds or less, Number of times: 1 When using a soldering bath: Preheating temperature (T1): 110°C or less, Preheating time (t1): 30 seconds or less, Peak temperature (T2): 270°C or less, Peak temperature duration (t2 + t3): 5 seconds or less, Number of times: 1 |
Lever Inclining Angle (°) |
25±4 |
Maximum Panel Thickness (mm) |
5.5 (mounting ring and lower hex nut not used) |
Electrical Durability for Opening and Closing |
25,000 times or more |
Current Capacity |
6 Amp 125 V AC, 3 Amp 250 V AC, 4 Amp 30 V DC |
RoHS Directive |
Corresponding to 10 Substances |
Circuit Type |
2-Pole Double Throw |
