| Operating Temperature Range | -30 to 85℃ |
| Monotaro ID | 41296913 |
| Type of Product | Toggle Switch |
| Model No | 734-7050 |
Operating Temperature Range |
-30 to 85℃ |
Monotaro ID |
41296913 |
Type of Product |
Toggle Switch |
Model No |
734-7050 |
Operating Patterns |
On-On-On |
Contact Material |
Brass Silver Plating |
Contact Current Rating |
5 Amp @ 250 V AC |
Country of Origin |
Japan |
Contact Configuration |
DPDT |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Actuator Material |
Brass Chrome Plating |
Contact Resistance (ohm) |
0.01 |
RoHS Directive |
Correspondence |
Specifications |

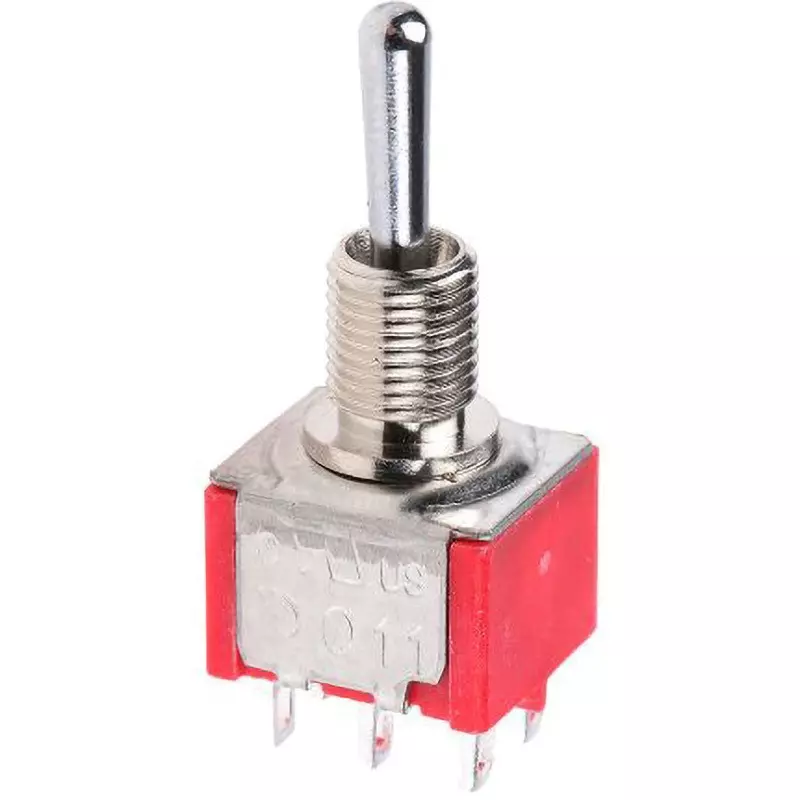

Toggle Switch, Miniature - RS Series, The RS series PCB mount miniature toggle switches have low contact resistance and are available in gold (R) or silver (Q) contact materials. The RS series miniature toggle switches have a minimum insulation resistance of 1000MΩ and a minimum dielectric strength of 1000Vrms. |
Standard |
Rohs And Lead Free |
Surface Mount Device |
Panel Mount |
Belt-End Finish |
Solder |
actuator length (mm) |
10.41 |
Mechanical Life (10,000 Times) |
4 |
Cutout Diameter |
(Panel) 6.35 mm |
