Gw Instek Standard Tester Current measurement: 0.001 mA to 20.00 mA Measurement Range, GPT-15012

Name: Gw Instek Standard Tester Current measurement: 0.001 mA to 20.00 mA Measurement Range, GPT-15012
Brand: GW Instek
SKU: TES.TOO.746075932
Price: 1092309 INR
Availability: InStock

Visit the GW Instek Store

EMI starts at ₹97050/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	Standard Tester
Model No	GPT-15012
Country of Origin	Japan
Name of Manufacturer/Packer/Importer	Texio Technology Co., Ltd.

More GW Instek Tool and Appliance Testers products More Tool and Appliance Testers products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	Standard Tester
Model No	GPT-15012
Country of Origin	Japan
Name of Manufacturer/Packer/Importer	Texio Technology Co., Ltd.
Import Country	Direct Import from Japan
Monotaro ID	4348420
Measurement Range	Current measurement: 0.001mA to 20.00mA
RoHS Directive	Correspondence
Accuracy	Voltage accuracy: (at no load) ±(1% of setting +5V), current judgment: ± (3% of setting+30μA)
Specifications	Test time range: OFF, 0.3s to 999.9s, arc detection enabled, rise time control enabled, fall time control enabled, window comparator enabled.
Power Supply	AC 100V to 240V ± 10%, 50Hz/60Hz, power consumption 1000VA
Dimension (WxDxH)	380x148x492 mm
Measurement accuracy	Voltage measurement: ± (1% of reading + 5 V), Current measurement: ± (1.5% of reading + 3 μA): I < 1 mA / ± (1.5% of reading + 30 μA): I ≥ 1 mA
Rated Current (mA)	10/0.001 to 2(0.05kV<V≦0.5kV)/0.001 to 10(0.5kV<V≦12kV)

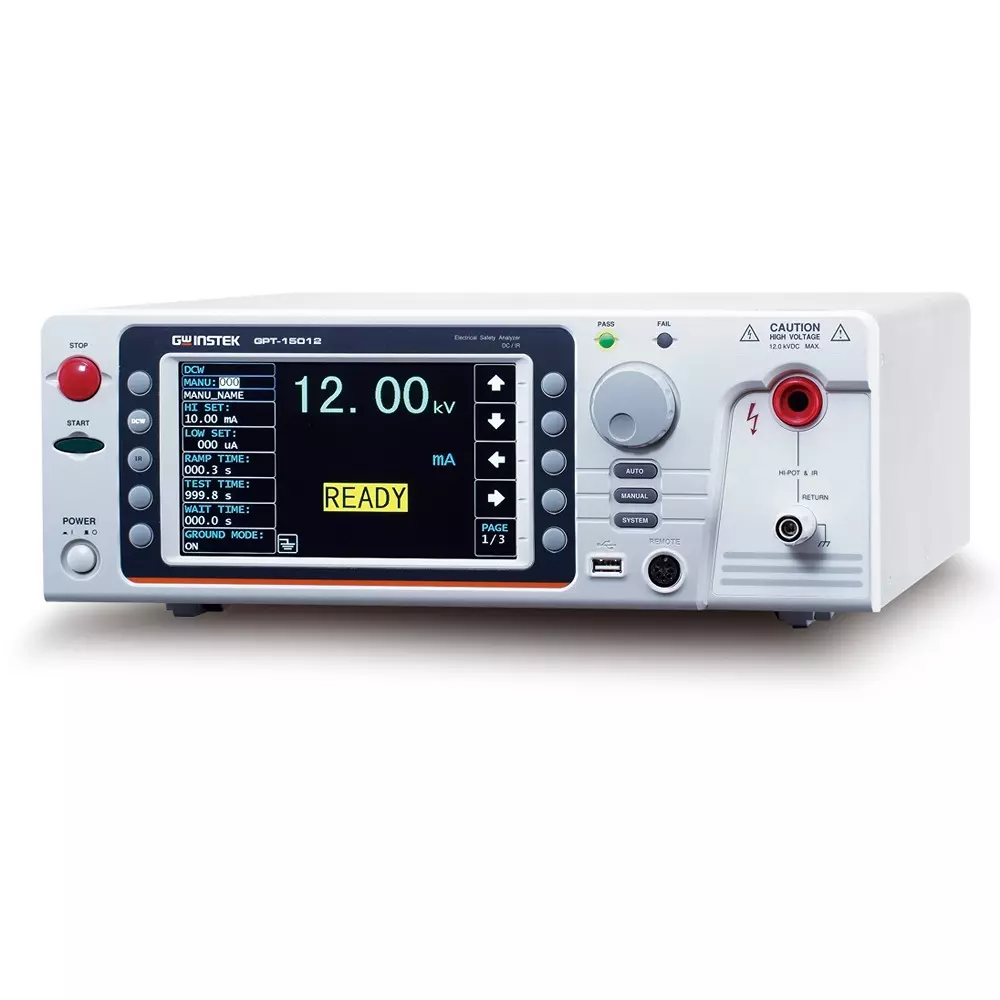

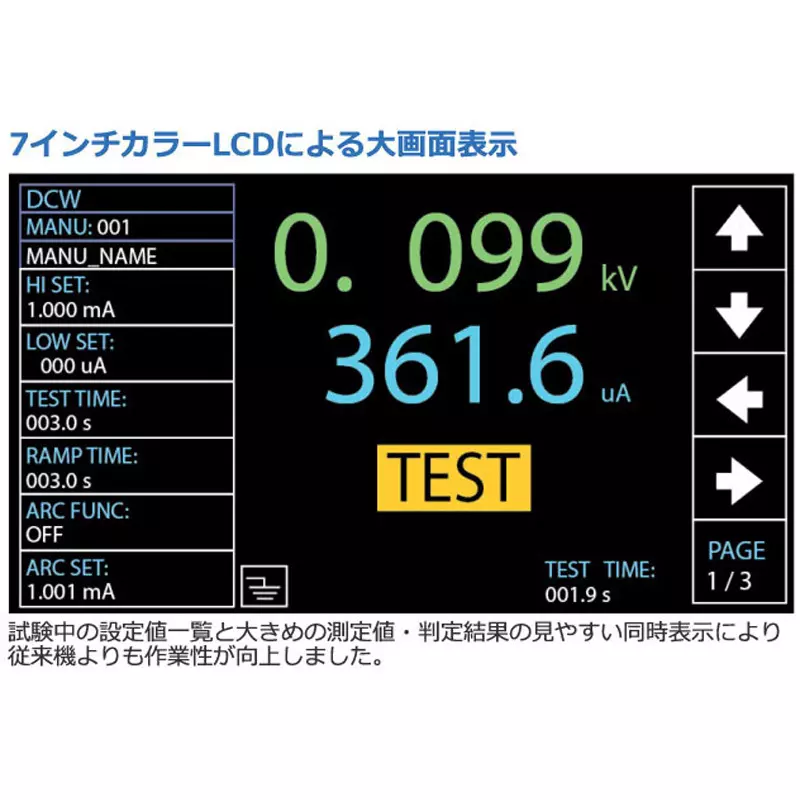

Display	7-inch color LCD

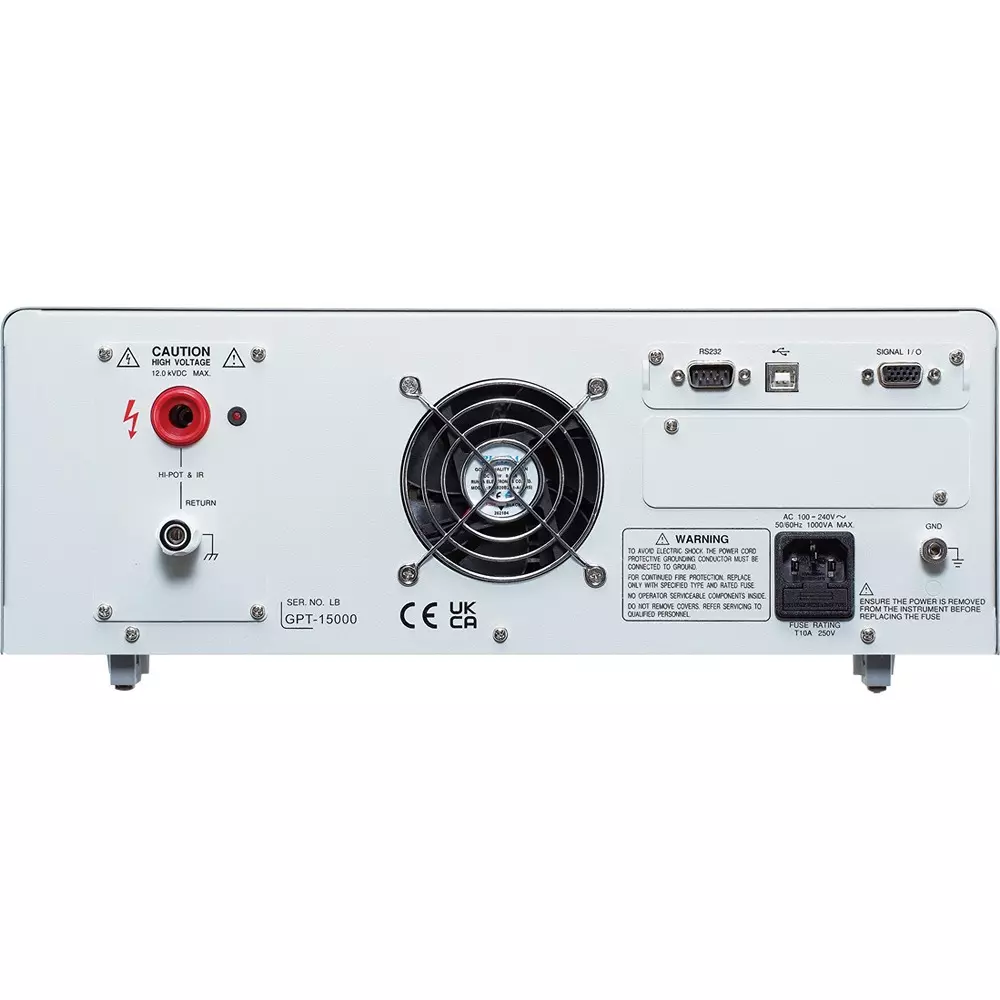

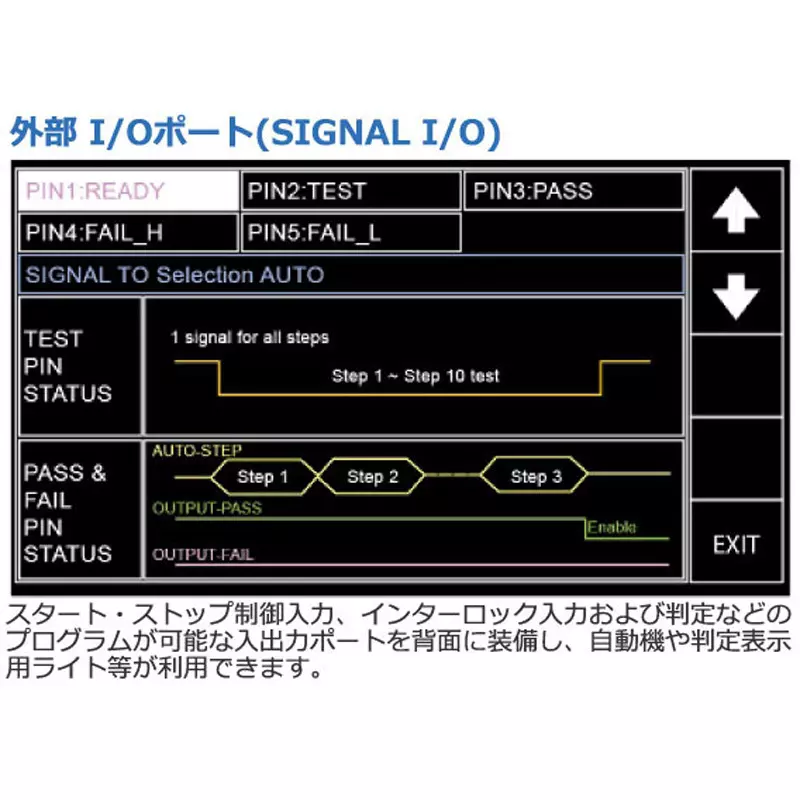

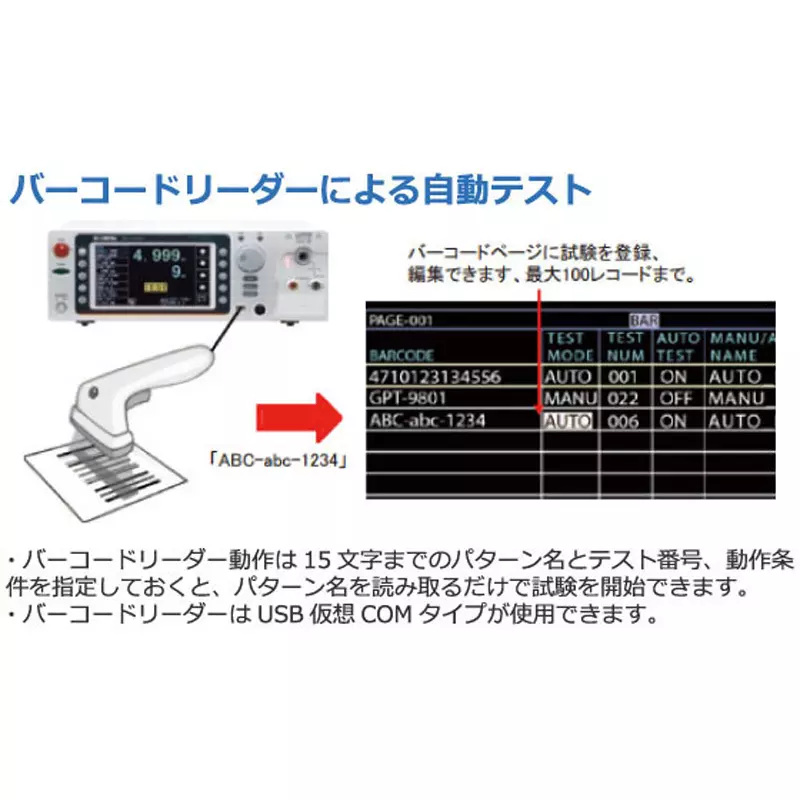

Interface	USB host (memory / barcode reader), USB device (virtual COM), RS-232C, GP-IB (option), LAN (option), external control
Insulation Resistance	DC50V to 5.000kV
Weight	Time range: 0.0 to 999.9s
Output Waveform	DC
Time accuracy	Test duration: ±(100 PPM + 20 ms)
Mass (Kg)	About 9.8
Rated power (W)	120(12k V/10mA)
Mode	Ground Mode: ON/OFF

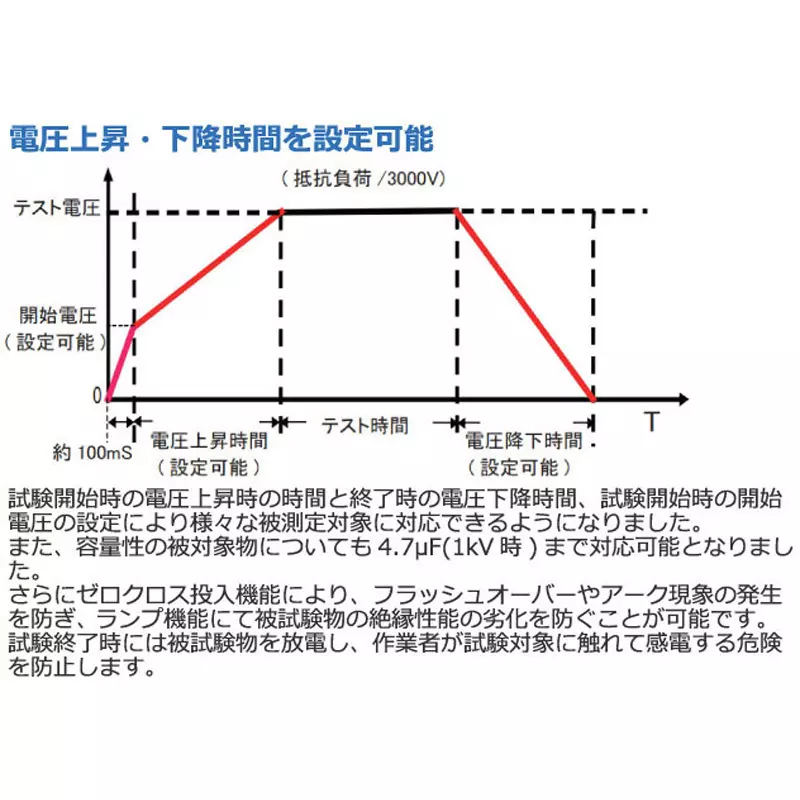

Rise / Fall Time	0.1 to 999.9s/0.0 to 999.9s
Withstand voltage (kV)	DC 0.050 to 12.00
Capacity	Maximum compliance: 1uF (6kV)
Frequency	0Hz
Resolution	Voltage: 1V, Current measurement: 0.1μA (0.1μA to 999.9μA) / 1μA (1μA to 9.999mA) / 10μA (10.00mA to 20.00mA)
Offset	Max 5μA
Memory	100 blocks (MANU) / 100 blocks (AUTO)
