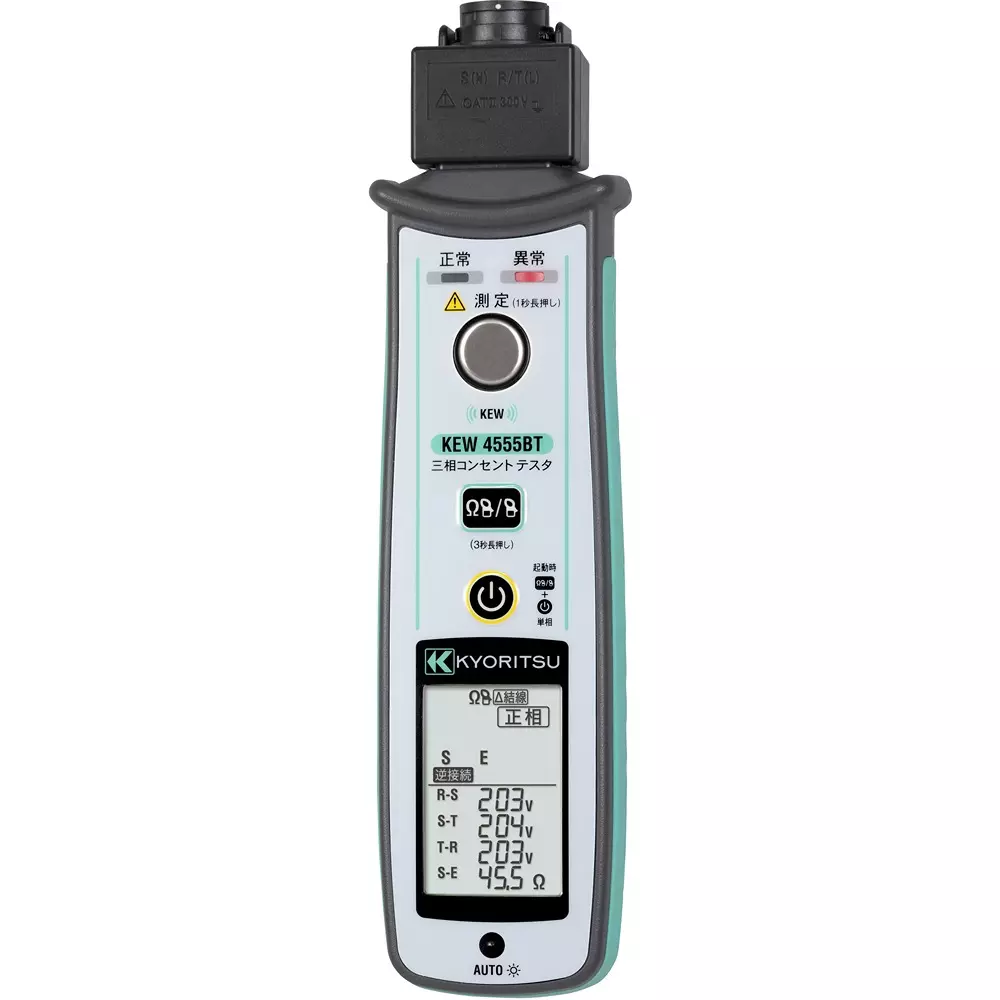

| Type of Product | Outlet Tester |
| Model No | KEW4555BT |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Kyoritsu Electrical Instruments Co., Ltd. |
Type of Product |
Outlet Tester |
Model No |
KEW4555BT |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Kyoritsu Electrical Instruments Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
76058355 |
Mass (g) |
About 250 (including batteries) |

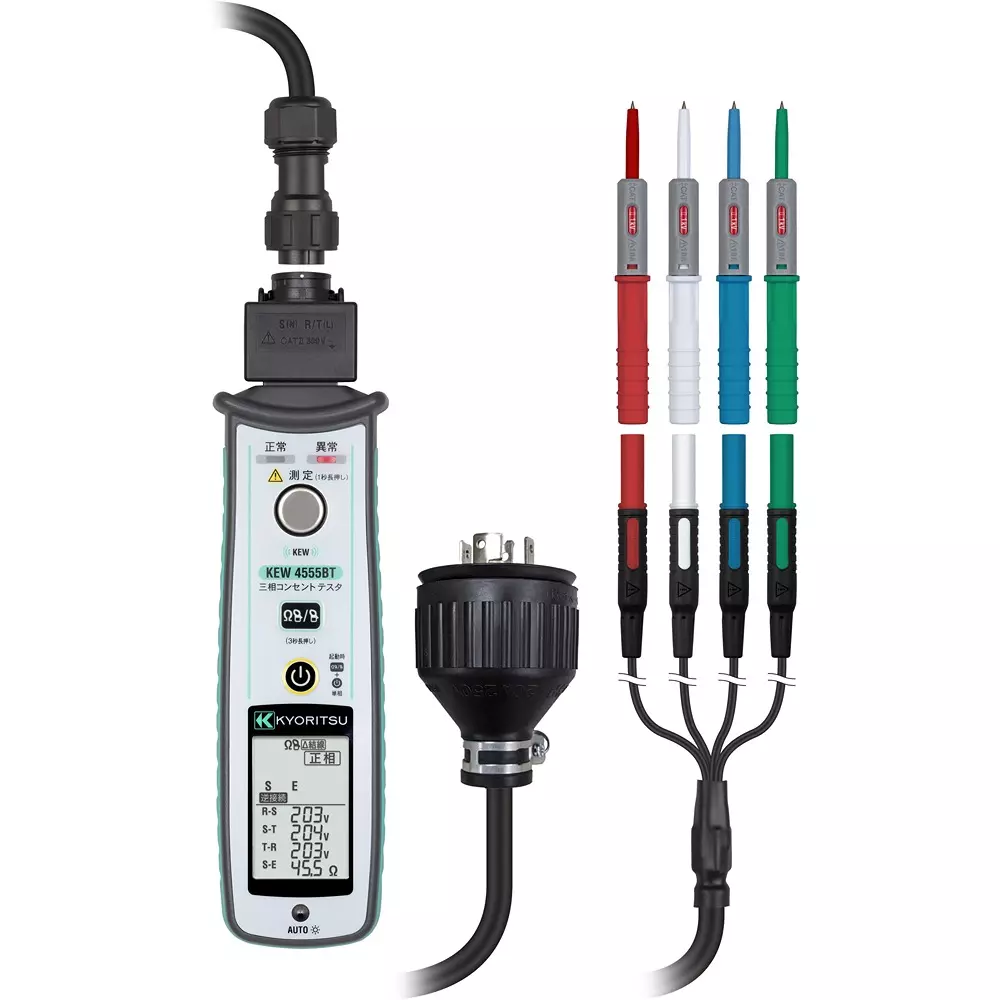

Included Components |
7306 (4P banana plug measuring cord), 7308 (hook type 20A plug measuring cord), 7313-BLU (short-circuit prevention measuring probe (blue)), 7313-GRN (short-circuit prevention measuring probe (green)), 7313-RED (short-circuit prevention measuring probe (red)), 7313-WHT (short-circuit prevention measuring probe (white)), 7314-BLU (safety alligator clip (blue)), 7314-GRN (safety alligator clip (green)), 7314-RED (safety alligator clip (red)), 7314-WHT (safety alligator clip (white)), 9198 (carrying case), 2 x AA alkaline batteries (LR6), instruction manual |
Suitable Battery |
2 x AA alkaline batteries (LR6, 1.5 V) (Auto power off: approx. 10 minutes) |
Applicable Standard |
IEC 61010-1, IEC 61010-2-030 CAT II 300V Pollution Degree 2, IEC 63000 (RoHS), IEC 60529 (IP40) |
Dimensions, Length L x Width W x Depth D (mm) |
215x56x39 |
Measuring Current |
Less than 10 mA, frequency 5.3 Hz*. When in injection signal detection mode, test at 1 μA or less. |
Communication Interface |
Bluetooth(R) 5.0 |
Specifications |
● Resistance Meter * Not ground resistance value: [Target] Three-phase delta connection (V connection): SE ↔ V, Single-phase (3P): NE ↔ V, [Measurement Range] 0.0 to 199.9 / 200 to 1999 Ω (auto-ranging) ● Voltmeter Display Range (50/60 Hz): [Three-phase delta connection (V connection)] RS ↔ V 80 to 290 V, ST ↔ V 80 to 290 V, TR ↔ V, SE ↔ V (ground voltage) 80.0 to 290.0 V, [Single-phase (3P)] LN ↔ V 80 to 290 V, LE ↔ V 80 to 290 V, NE ↔ V (ground voltage) 80.0 to 290.0 V●Judgment details: [Three-phase delta connection (V connection)] Normal/abnormal (LED), phase sequence (positive phase, negative phase), reverse connection, not connected, V connection, voltage abnormality, unable to judge, [Single-phase (3P)] Normal/abnormal (LED), normal, reverse connection, not connected, voltage abnormality, unable to judge ●Optional accessories sold separately: 7307 (4-core measuring cord for processing), 7309 (30A hook-type measuring cord), 8345 (injector for three-phase outlet tester) |
Operating Temperature / Humidity Range |
-10 to 50°C, relative humidity 85% or less (no condensation) |
Rated Voltage (V) |
[Three-phase delta connection (V connection)] 200 (50/60 Hz), [Single phase (3P)] 100 (50/60 Hz) |
Outlet |
Three-phase delta connection (V connection), single phase (3P) |
Storage Temperature/Humidity Range |
-20 to 60°C, relative humidity 85% or less (no condensation) |
