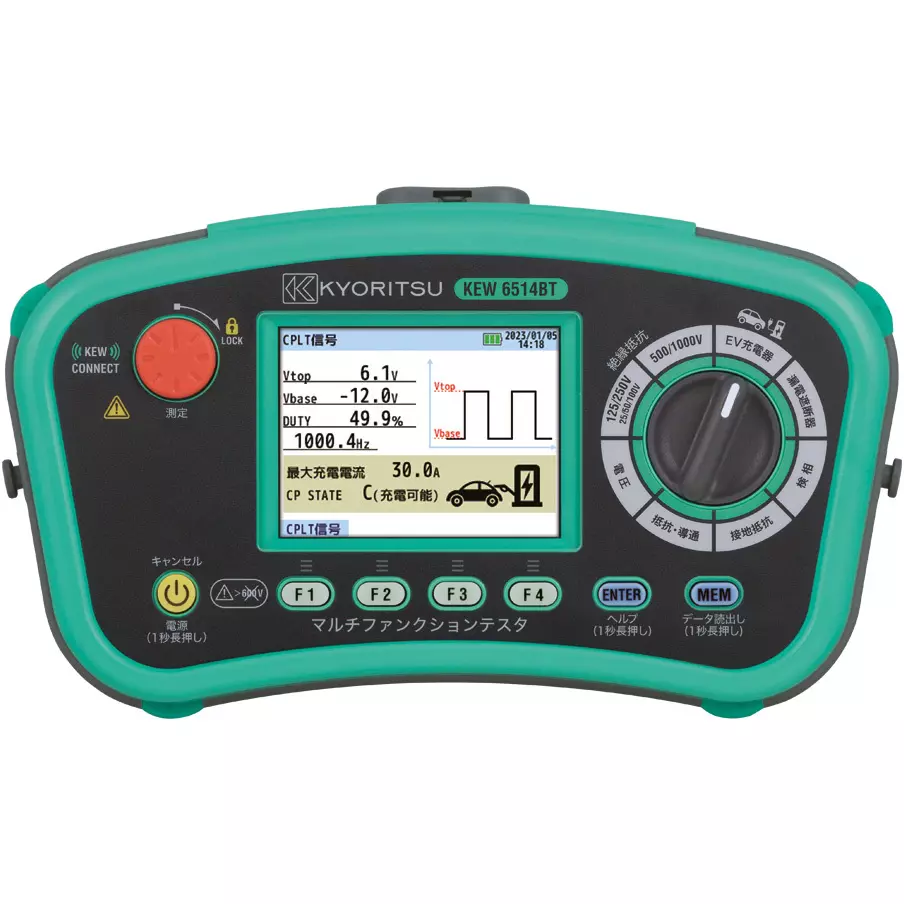

Kyoritsu Multifunction Tester Phase detection: 3 to 600 V (45 to 65 Hz), Hand-cranked motor phase detection:, KEW6514BT

Name: Kyoritsu Multifunction Tester Phase detection: 3 to 600 V (45 to 65 Hz), Hand-cranked motor phase detection:, KEW6514BT
Brand: Kyoritsu
SKU: TES.TOO.346075997
Price: 141599 INR
Availability: InStock

Visit the Kyoritsu Store

EMI starts at ₹12581/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	Multifunction Tester
Model No	KEW6514BT
Country of Origin	Japan
Name of Manufacturer/Packer/Importer	Kyoritsu Electrical Instruments Co., Ltd.

More Kyoritsu Tool and Appliance Testers products More Tool and Appliance Testers products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	Multifunction Tester
Model No	KEW6514BT
Country of Origin	Japan
Name of Manufacturer/Packer/Importer	Kyoritsu Electrical Instruments Co., Ltd.
Import Country	Direct Import from Japan
Monotaro ID	81360380
Mass (g)	Approximately 1300 (including batteries)
Included Components	Measurement probe with remote switch, power distribution panel cord, precision measurement cord, long tip fitting, auxiliary earth rod [set of 2], fuse [0.5A/600V] x 2 (built-in, 1 spare), soft case, carrying bag, shoulder strap and buckle, shoulder pad, AA size LR6 batteries x 8, instruction manual
Suitable Battery	8 x AA LR6 (1.5V) batteries

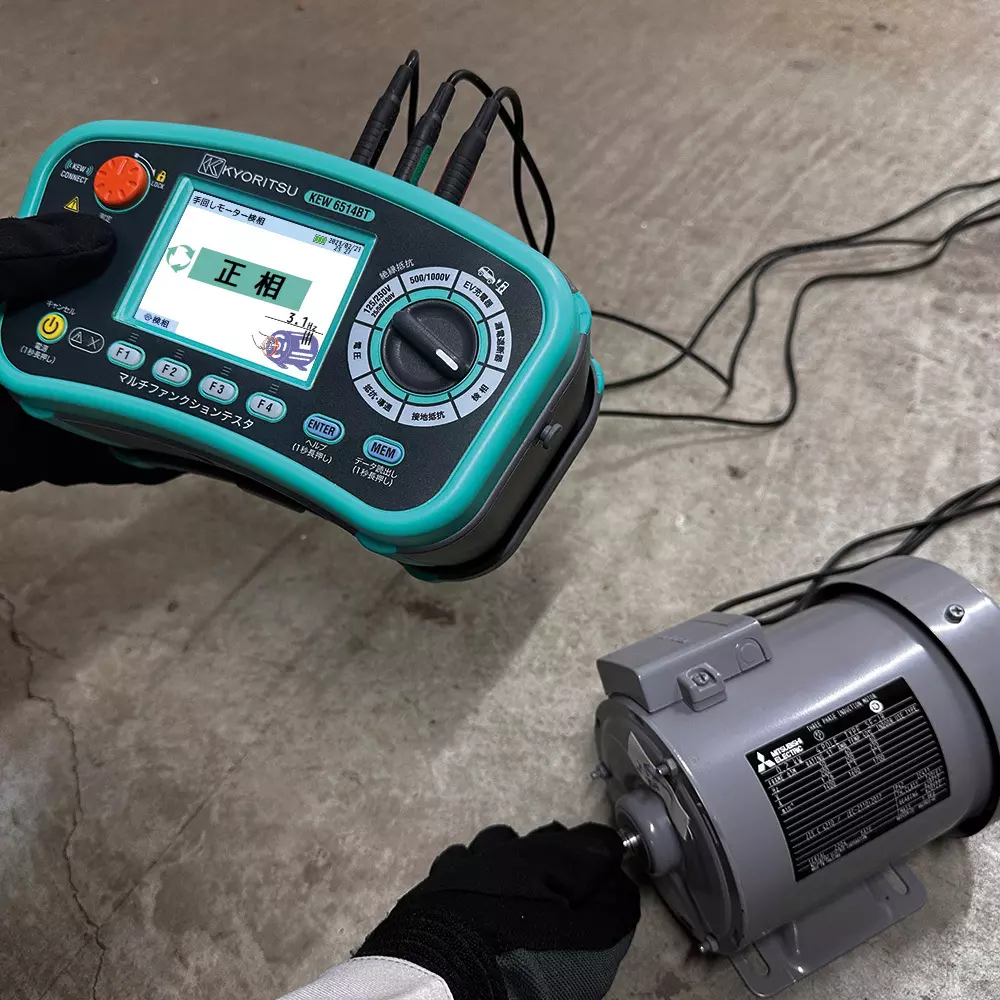

Measurement Range	Phase detection: 3 to 600V (45 to 65Hz), Hand-cranked motor phase detection: 0.1 to 2V (1 to 10Hz)
Applicable Standard	Compliant with JIS C 1302:2018, IEC 61010-1, IEC 61010-2-030 CAT IV 300V / CAT III 600V Pollution Degree 2, IEC 61010-2-034, IEC 61557-1, 2, 3, 4, 5, 6, 7, 10, IEC 60529 (IP40)
RoHS Directive	Correspondence
Dimensions, Length L x Width W x Depth D (mm)	136x235x114
Measurement Voltage (V)	25/50/100/125/250/500/1000
Accuracy	Voltage: ±2%rdg±4dgt, Frequency: ±0.5%rdg±2dgt
Communication Interface	USB, Bluetooth(R) 5.0
AC Voltage (Volts)	300.0/600 (auto range)
Effective Measuring Range	1st: 0.1 to 10/0.1 to 25/0.1 to 50/0.1 to 100/0.1 to 1000MΩ, 2nd: 0.05 to 0.099/10.01 to 18/25.1 to 180/50.1 to 180/100.1 to 900/1001 to 1800MΩ
Effective maximum display value	2/20/200/1000/2000MΩ (auto range)
Measurement accuracy	1st: ±2%rdg±2dgt, 2nd: ±2%rdg±4dgt/±5%rdg
Frequency Measurement Range (Hz)	45 to 65
Rated Current (mA)	1 to 1.2
Display	Normal phase: Displays "Normal phase" and "Right rotation mark", Reverse phase: Displays "Reverse phase" and "Left rotation mark"
