| Model No | CP-314-3 |
| Type of Product | Rotary Lock |
| Weight | 45 g |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
CP-314-3 |
Type of Product |
Rotary Lock |
Weight |
45 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Country of Origin |
Japan |
Monotaro ID |
61121944 |

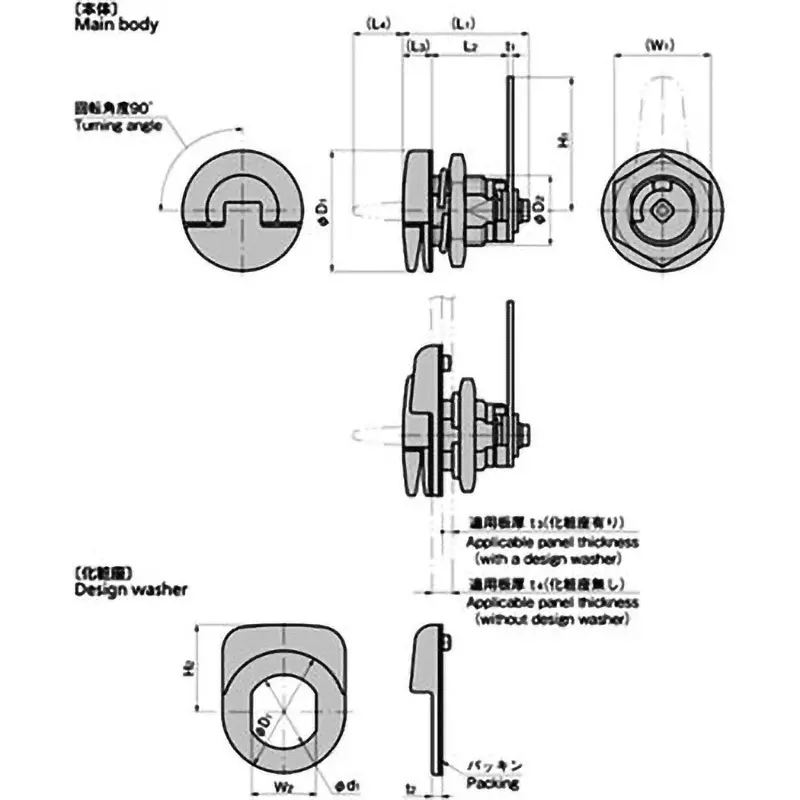

Dimensions H2 (mm) |
28 |
Dimensions L1 (mm) |
42 |
Dimension L3 (mm) |
11 |
Dimensions l4 (mm) |
11.5 |
Dimensions l2 (mm) |
23.6 |
Dimensions P (mm) |
22.5 |
Dimensions H1 (mm) |
51 |
Main Unit Material |
Polyamide 66 (PA66) |
Dimensions W2 (mm) |
19.2 |
Dimensions W1 (mm) |
28 |
Dimension t1 (mm) |
2 |
Dimension d2 (Φmm) |
22 |
Lever Material |
Aluminum Alloy (ADC) |
Dimension T4 (mm) |
0 to 5.5 |
Dimension t2 (mm) |
3 |
Dimension T3 (mm) |
0 to 3.5 |
Dimension d1 (Φmm) |
35 |
