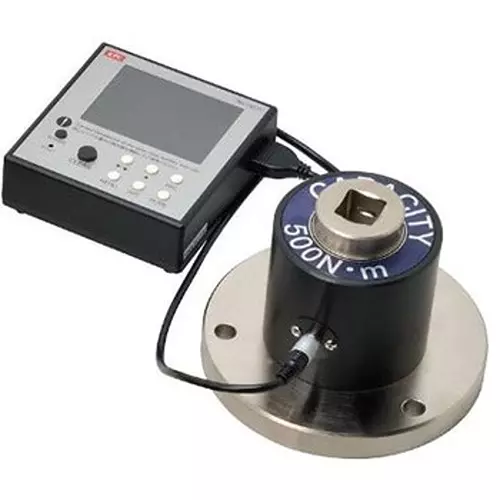

| Type of Product | Torque Checker |
| Square Drive Size | 19 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Kyoto Machine Tools Co., Ltd. |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Torque Checker |
Square Drive Size |
19 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Kyoto Machine Tools Co., Ltd. |
Set Contents |
Display, detector, detector code, AC adapter, rubber feet, documents (inspection report, calibration certificate, traceability system diagram) (detector fixing bolt, PC connection cable not included) |
Monotaro ID |
57780014 |
Manufacturer Part Number |
GECH500-06 |
Mass (Kg) |
2.8 |
Dimension X (mm) |
103 |
Dimension d3 (mm) |
116 |
Accuracy (%) |
± 0.5 (± 3 digits for 499 digits or less) (* digit = minimum display unit) |
Measurement Range |
2-500 nm |
Dimension Z (mm) |
37.700000000000003 |
Dimension Y (mm) |
108 |
Power Supply |
AC adapter or 4 AA batteries |
Measuring Direction |
Left and right |
Data Output |
RS232C,USB mini-B |
Dimension D2 (mm) |
140 |
Dimension D1 (mm) |
80 |
Dimension H2 |
15.5 mm |
Dimension H1 |
99 mm |
Part No |
65-2007-76 |
