| Mass (g) | 260 |
| Maximum Counting Speed | 15Hz |
| Type | Addition type total counter |
| Monotaro ID | 37654513 |
Mass (g) |
260 |
Maximum Counting Speed |
15Hz |
Type |
Addition type total counter |
Monotaro ID |
37654513 |
Type of Product |
Electromagnetic Total Counter |
Connection Type |
For both solder terminals and lead wires |
Model No |
MCR-4PN DC24V |
Display |
5.4x3.8 mm (white on black background) |
Import Country |
Direct Import from Japan |
Number of Digit |
4 |
RoHS Directive |
Correspondence |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Line Seiki Co., Ltd. |
Voltage |
DC 24 V |
Type of Sign |
Panel mounting screws |

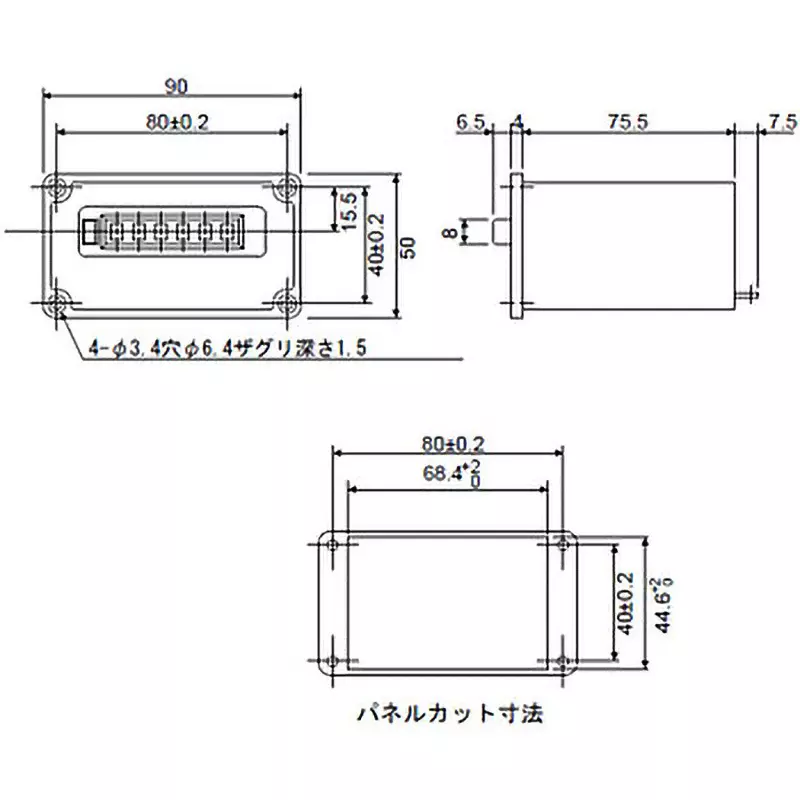

Main Unit Dimensions (W x D x H) (mm) |
90x50x93.5 |
Mounting Dimensions (mm) |
80 x 40 (Φ3.4 hole Φ6.4 counterbore depth 1.5) |
Operating Temperature Range |
-5 to +40℃ (no freezing) |
Operating Humidity Range |
45 to 85%RH |
Frequency (Hz) |
50/60 shared |
Counting Method |
1 pulse 1 count (1/2 count when energized, 1/2 count when paused) |
Type of Resetting |
Manual reset pushbutton |
