| Package Contains | 1 x Main Unit, 1 x Single Element Straight Probe, 1 x Single Element Angle Probe, 1 x USB Cable, 1 x Couplant Bottle, 2 x Probe Connecting Cables, 1 x USB Disk, 1 x Power Adapter |
| Model No | UFD-B450 |

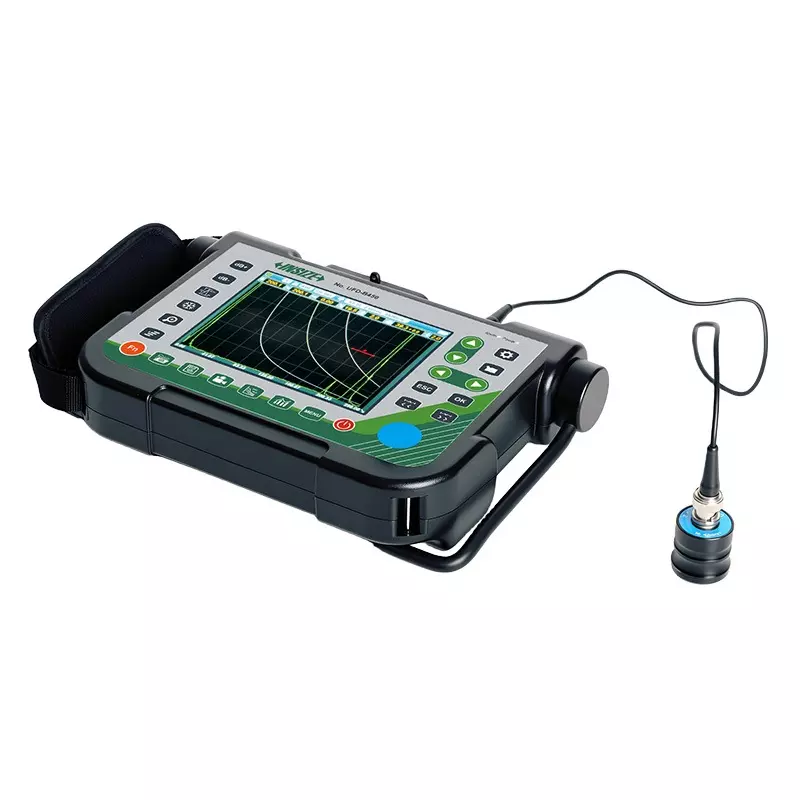

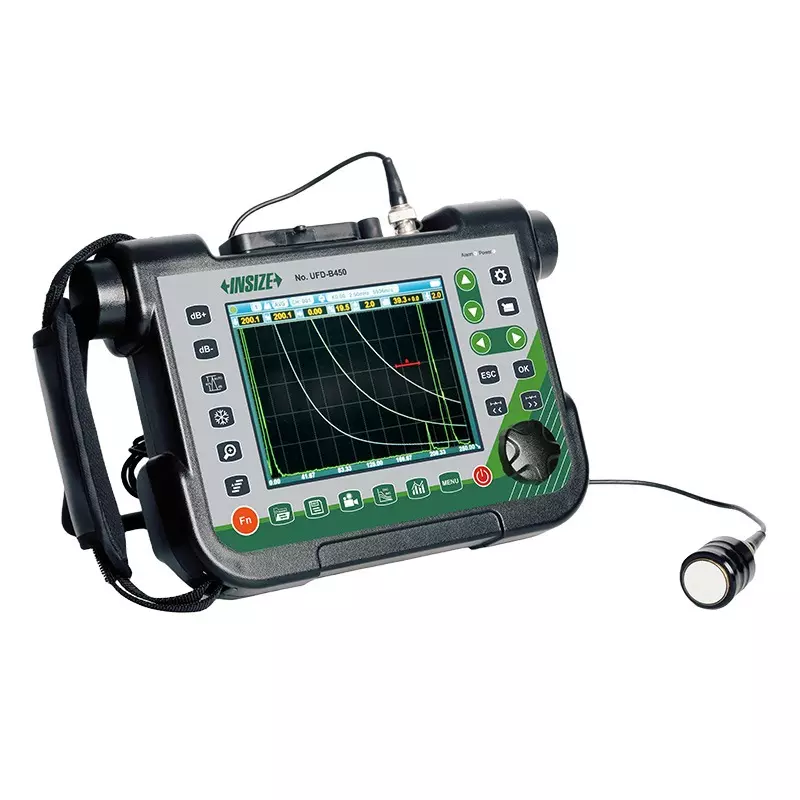

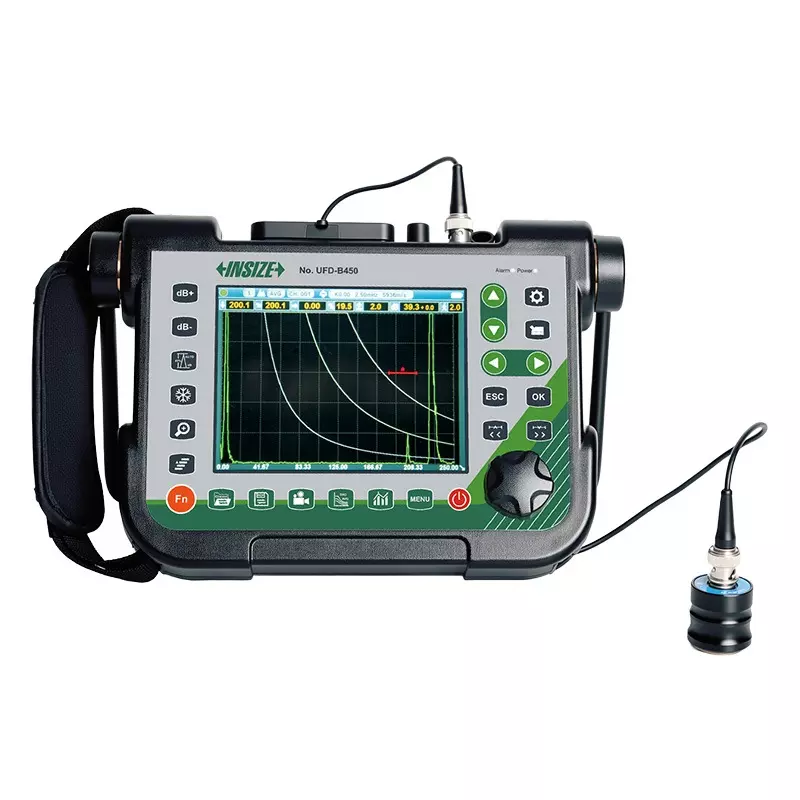

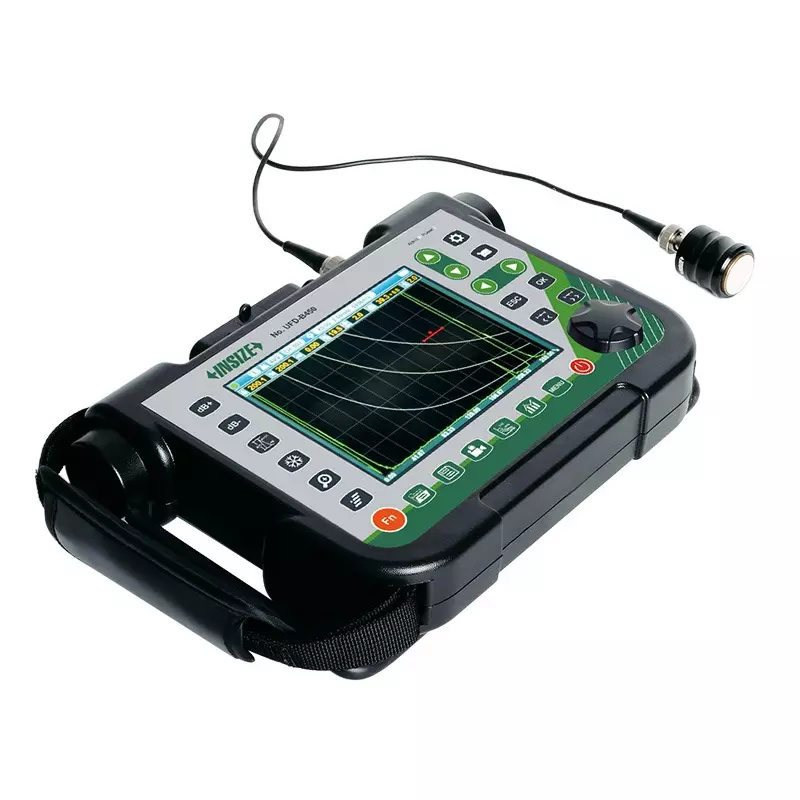

| Type of Product | Digital Ultrasonic Flaw Detector |
| Weight | 1.13 Kg |
Package Contains |
1 x Main Unit, 1 x Single Element Straight Probe, 1 x Single Element Angle Probe, 1 x USB Cable, 1 x Couplant Bottle, 2 x Probe Connecting Cables, 1 x USB Disk, 1 x Power Adapter |
Model No |
UFD-B450 |
Type of Product |
Digital Ultrasonic Flaw Detector |
Weight |
1.13 Kg |
Operating Temperature |
-10°C-50°C |
Dimension |
230x157x52 mm |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
INSIZE |
Range |
0-15000 mm |
Type |
Basic |
Power Supply |
In-Built Rechargeable Battery |
Suppression Class |
0-80% |
Dynamic Range |
≥ 26 dB |
Interface |
USB 2.0 |
Frequency |
1-20 MHz |
Features |
Full plastic housing with tempered glass panel, extremely hard, wear-resistant and scratch-resistant Full-digital multi-color high resolution (640×480 pixels) TFT LCD display The operation interface style can be selected according to the working environment, and the brightness of LCD can be set freely Selectable frequency ranges (automatically set by the instrument)to match probe for optimum performance Can choose to set the incoming wave alarm or lost wave alarm, accompanied by LED light display |
Resolving Power |
˃ 32 dB |
Relative Humidity |
20-95% RH |
Linearity |
Horizontal: ≤0.5%, Vertical: ≤ 5.0% |
Velocity |
100-20000 m/s |
Sensitivity |
Leavings: ˃54 dB |
