Ships within 25 days
View
View
View
View
| Type | Type A |
| Type of Product | Precision V-Block A Type |
| Model No | VK-A150 |
| Material | FC25 |
Type |
Type A |
Type of Product |
Precision V-Block A Type |
Model No |
VK-A150 |
Material |
FC25 |
Country of Origin |
TAIWAN |
Monotaro ID |
26895925 |
Nominal Size (mm) |
150 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Mass (Kg) |
5.3 |

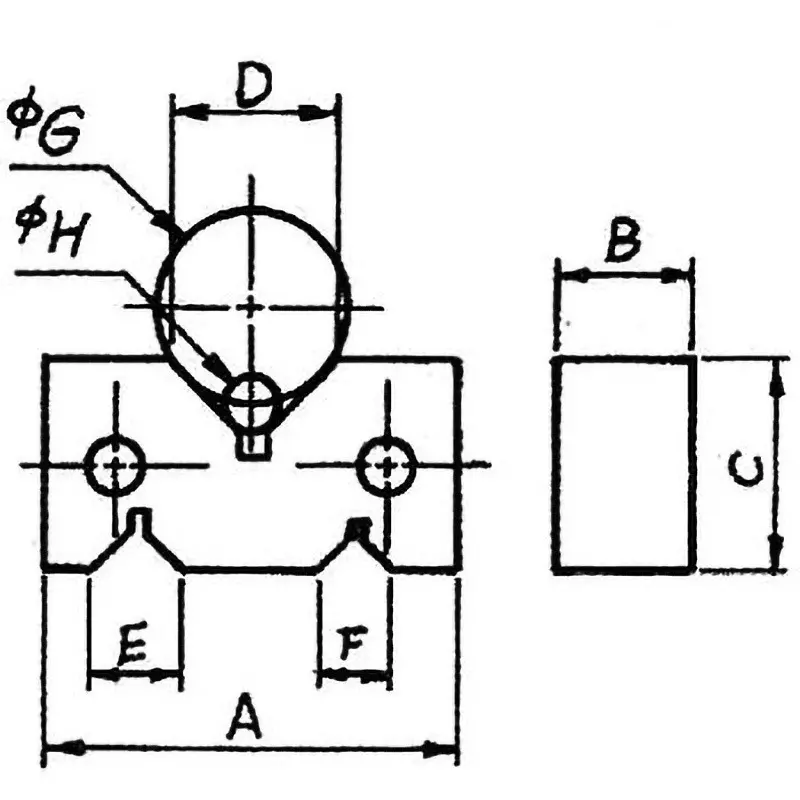

Dimension H (Φmm) |
10 |
Right-Angle / Parallelism (mm) |
>0.04 |
Width A (mm) |
150 |
Dimension F (Φmm) |
30 |
Groove Width (mm) |
5 |
Thickness (B) |
50 mm |
Dimension E (Φmm) |
44 mm |
Height C (mm) |
80 |
Dimension G |
Φ104 mm |
Dimension d |
74 mm |
