| Type of Product | Metal Oxide Varistor |
| Capacitance | 540 pF |
| Varistor Voltage | 360 V |
| Name of Manufacturer/Packer/Importer | Panasonic Corporation |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Metal Oxide Varistor |
Capacitance |
540 pF |
Varistor Voltage |
360 V |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Series |
V |
Country of Origin |
Japan |
Pack of |
1000 Pcs |
Model No |
ERZV14D361 |
Monotaro ID |
65253355 |
Maximum Rated Voltage |
AC: 230, DC: 300 V |
Diameter (Φmm) |
15.5 |
Dimension (mm) |
15.5(Dia.)x5.7 |
Current (A) (50/60Hz) |
Clamp: 50 |
Specifications |

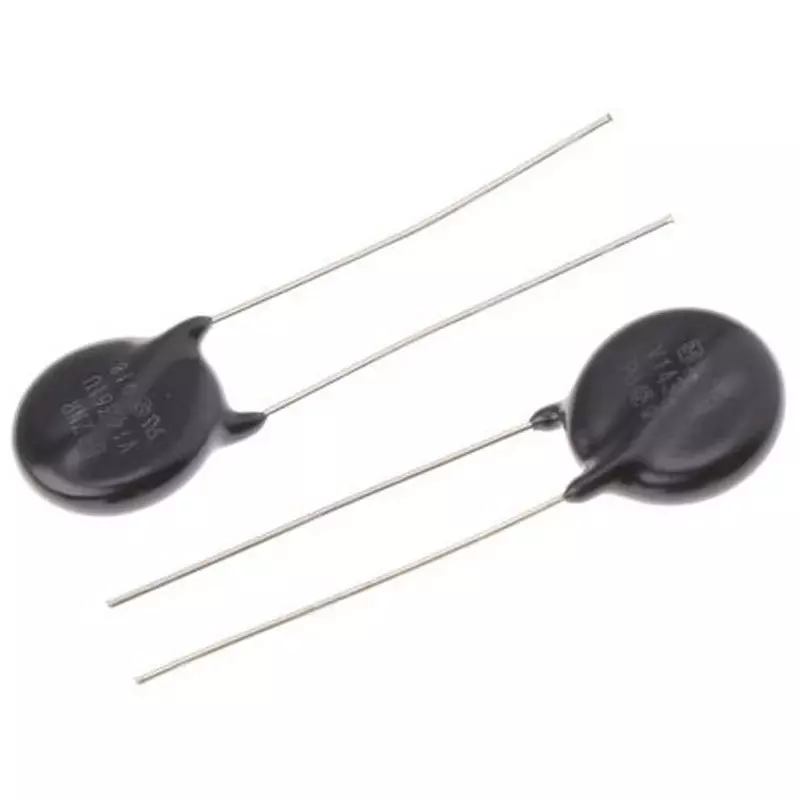

Panasonic Metal Oxide Varistor ZNR Series, 14mm diameter. Compact and large surge current capacity. Compared to standard varistors, it can withstand two surge currents. |
RoHS Directive |
Correspondence |
Lead Spacing |
7.5 mm |
Maximum Surge Current |
6000 Amp |
Import Country |
Direct Import from Japan |
Voltage |
595 V |
Length (mm) |
34.5 |
Thickness (mm) |
5.7 |
Energy |
130 J |
