| Output | (Analog) AC output: 0-2.0V peak (load resistance 10kΩ or more) |
| Type of Product | Vibration Meter |
| Model No | OSK97BX234-AV160A |
| Size | • Dimensions: 140x70x30 mm • Weight: 130 g (excluding batteries) |
Output |
(Analog) AC output: 0-2.0V peak (load resistance 10kΩ or more) |
Type of Product |
Vibration Meter |
Model No |
OSK97BX234-AV160A |
Size |
• Dimensions: 140x70x30 mm • Weight: 130 g (excluding batteries) |
Country of Origin |
Japan |
Measurement Range |
0.1-400.0m/s2 (peak) 0.3-1312ft/s2/0.0-40g (Acceleration), 0.001-4.000mm (peak-to-peak) 0.04-160.0mil (Displacement), 0.01-400.0mm/sec (RMS) 0.000-16.00inch/sec (Velocity) |
Name of Manufacturer/Packer/Importer |
Amitari |
Import Country |
Direct Import from Japan |
Monotaro ID |
75666170 |
Included Components |

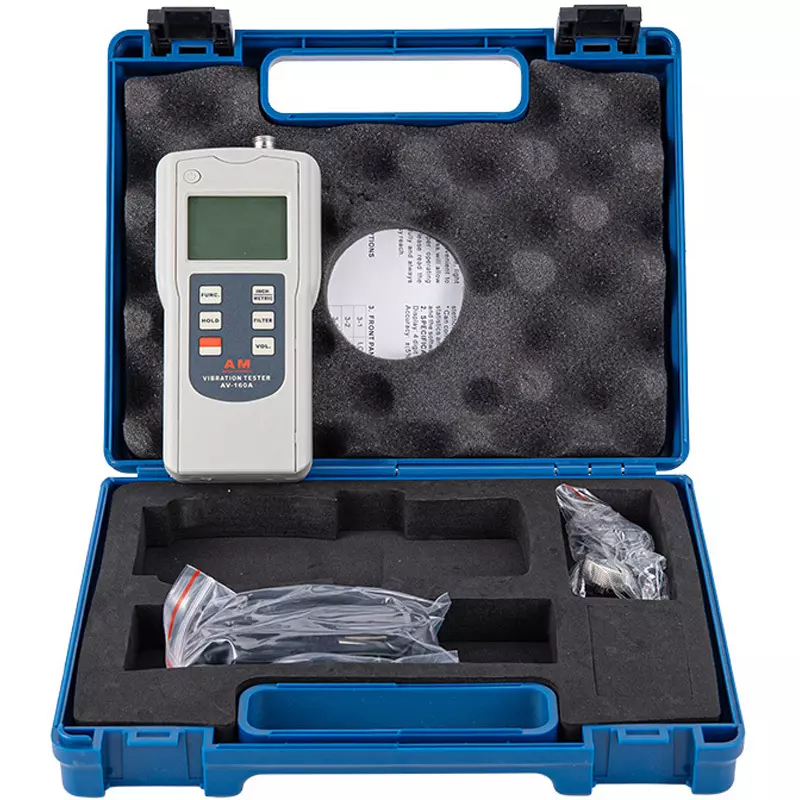

Main unit / Magnetic base / Probe (conical) / Probe (spherical) / Piezoelectric sensor / Carrying case / Instruction manual |
