| Type | Standard Type |
| Display | 2.4 inch (60.9 mm) TFT Dot Matrix Color Screen |
| Dimension | 150x68x33 mm |
| Weight | 300 g |
Type |
Standard Type |
Display |
2.4 inch (60.9 mm) TFT Dot Matrix Color Screen |
Dimension |
150x68x33 mm |
Weight |
300 g |
Type of Product |

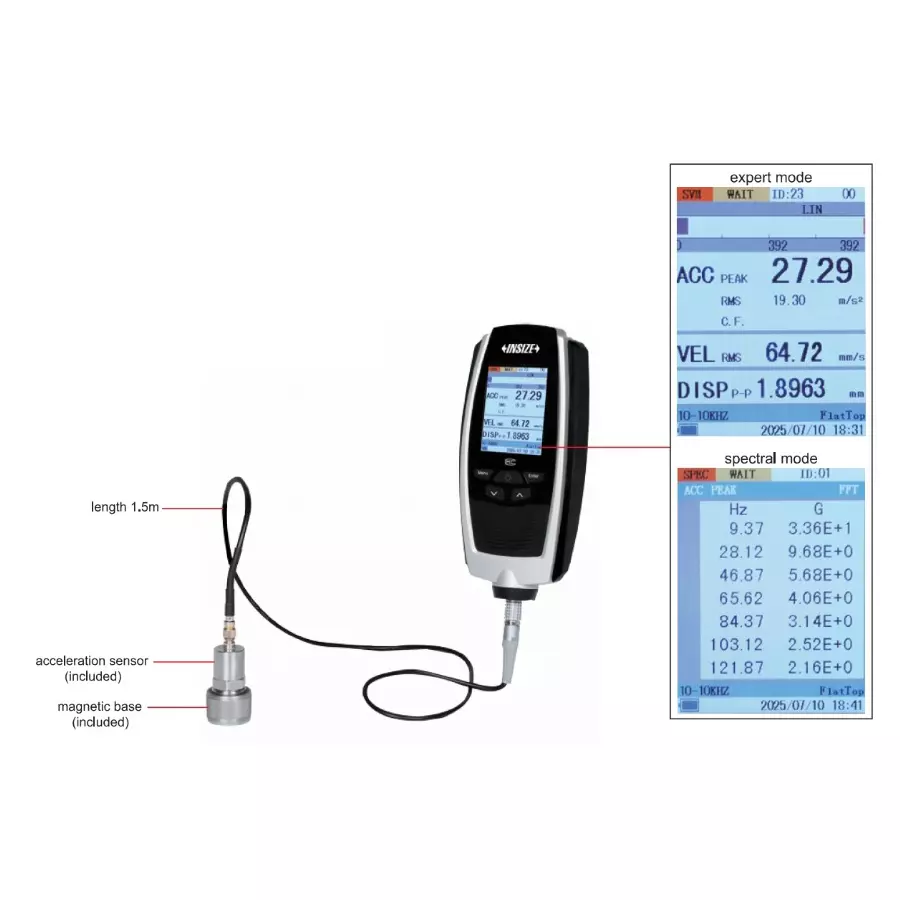

Vibration Meter |
Humidity |
≤ 90% RH |
Operating Temperature |
-10°C to 40°C |
Model No |
0024-VM40 |
Package Contains |
1 Pc Main Unit, 1 Pc Accelerometer (Including Cable), 1 Pc Magnetic Base, 2 Pcs Battery AA |
Velocity |
0.01-800 mm/s (RMS Value) |
Frequency Response |
±5% |
Power Supply |
2 x AA Batteries (for 15 Hours Working) |
Acceleration |
0.1-392 m/s2 (Peak Value) |
Displacement |
0.001-5 mm (Peak-Peak Value) |
Country of Origin |
India |
Data Storage |
99 Sets of Data |
Linearity |
±5% |
Name of Manufacturer/Packer/Importer |
Insize |
Backlight |
Adjustable |
Data Interface |
Bluetooth 4.0 |
Pixels |
320x240 |
Window |
Rectangular Window, Hanning Window, Hamming window, Flat Top Window |
