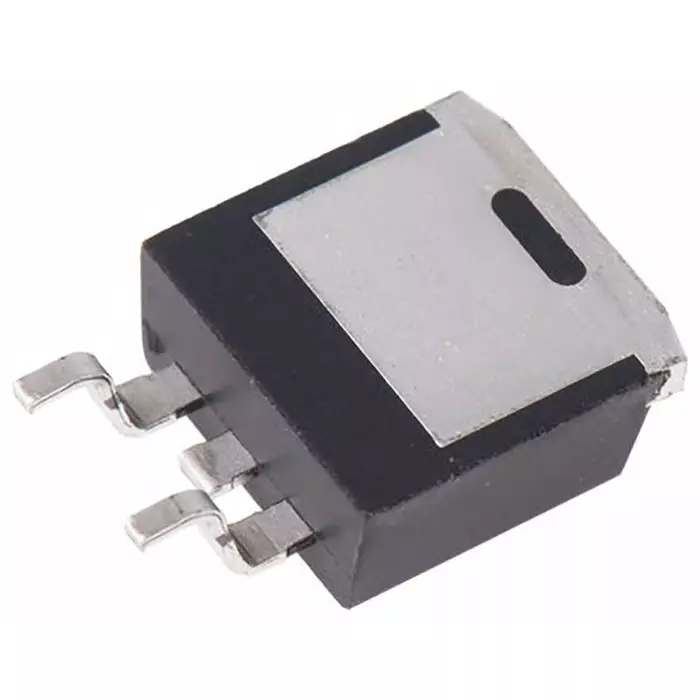

| Model No | L4940D2T12-TR |
| Mounting Type | Surface Mount |
| Type of Product | Voltage Regulator |
| Output Voltage | 12 V |
Model No |
L4940D2T12-TR |
Mounting Type |
Surface Mount |
Type of Product |
Voltage Regulator |
Output Voltage |
12 V |
Dimension |
10.4 x 9.35 x 4.6 mm |
Country of Origin |
United States |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
No. Of Output |
1 |
Maximum Output Current |
1.5 Amp |
Package Type |
D2PAK |
Output Type |
Fixed |
Pin Count |
3 |
Maximum Input Voltage |
17 V |
Load Regulation |
35 mV |
Polarity |
Positive |
Height |
4.6 mm |
Quiescent current |
5 mA |
Length |
10.4 mm |
Maximum Operating Temperature |
+150 °C |
Line Regulation |
7 mV |
Width |
9.35 mm |
Minimum Operating Temperature |
-40 °C |
