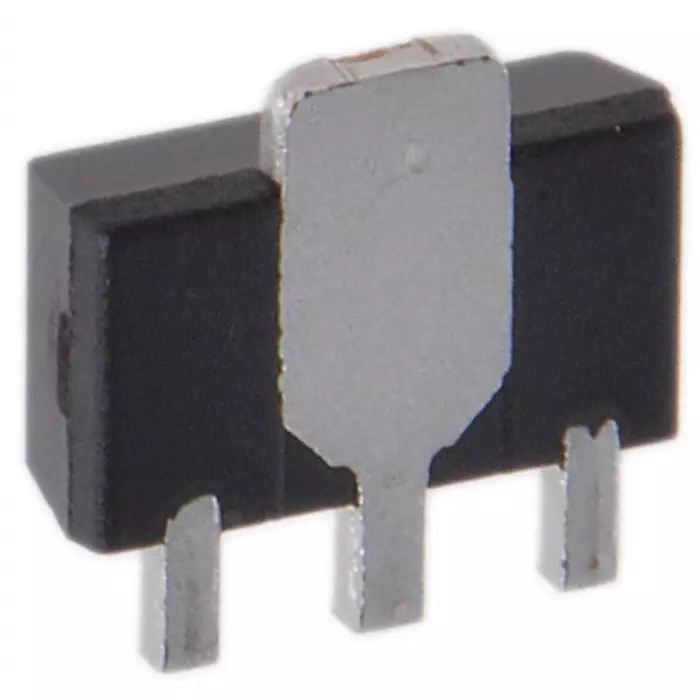

| Model No | L78L24ACUTR |
| Mounting Type | Surface Mount |
| Type of Product | Voltage Regulator |
| Output Voltage | 24 V |
Model No |
L78L24ACUTR |
Mounting Type |
Surface Mount |
Type of Product |
Voltage Regulator |
Output Voltage |
24 V |
Dimension |
4.6 x 2.6 x 1.6 mm |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
No. Of Output |
1 |
Maximum Output Current |
100 mA |
Package Type |
SOT-89 |
Output Type |
Fixed |
Pin Count |
3 |
Maximum Input Voltage |
40 V |
Load Regulation |
200 mV |
Polarity |
Positive |
Height |
1.6 mm |
Quiescent current |
6.5 mA |
Length |
4.6 mm |
Maximum Operating Temperature |
+150 °C |
Line Regulation |
350 mV |
Width |
2.6 mm |
Minimum Operating Temperature |
0 °C |
Accuracy |
±15% |
