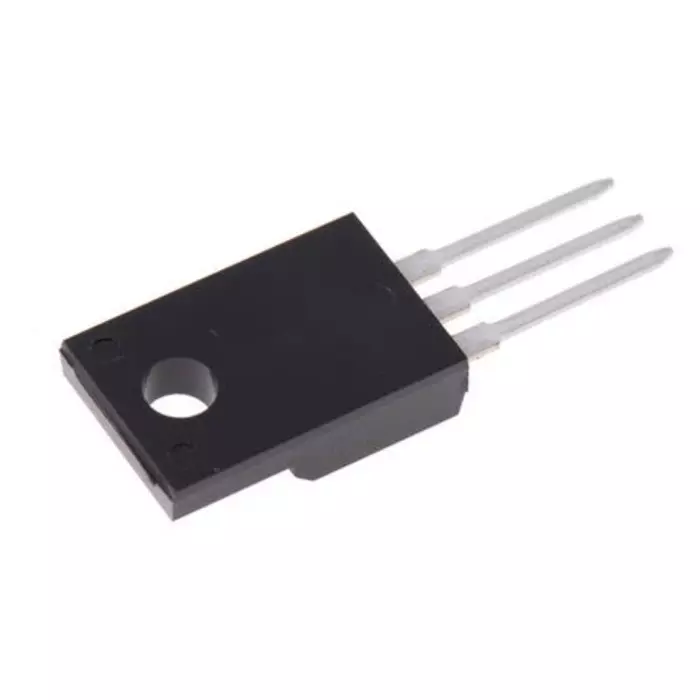

| Model No | L7905CP |
| Mounting Type | Through Hole |
| Type of Product | Voltage Regulator |
| Output Voltage | -5 V |
Model No |
L7905CP |
Mounting Type |
Through Hole |
Type of Product |
Voltage Regulator |
Output Voltage |
-5 V |
Dimension |
10.4 x 4.6 x 9.3 mm |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
No. Of Output |
1 |
Maximum Output Current |
1.5 Amp |
Package Type |
TO-220FP |
Output Type |
Fixed |
Pin Count |
3 |
Maximum Input Voltage |
-35 V |
Load Regulation |
100 mV |
Polarity |
Negative |
Height |
9.3 mm |
Quiescent current |
3 mA |
Length |
10.4 mm |
Maximum Operating Temperature |
+150 °C |
Line Regulation |
100 mV |
Width |
4.6 mm |
Minimum Operating Temperature |
0 °C |
