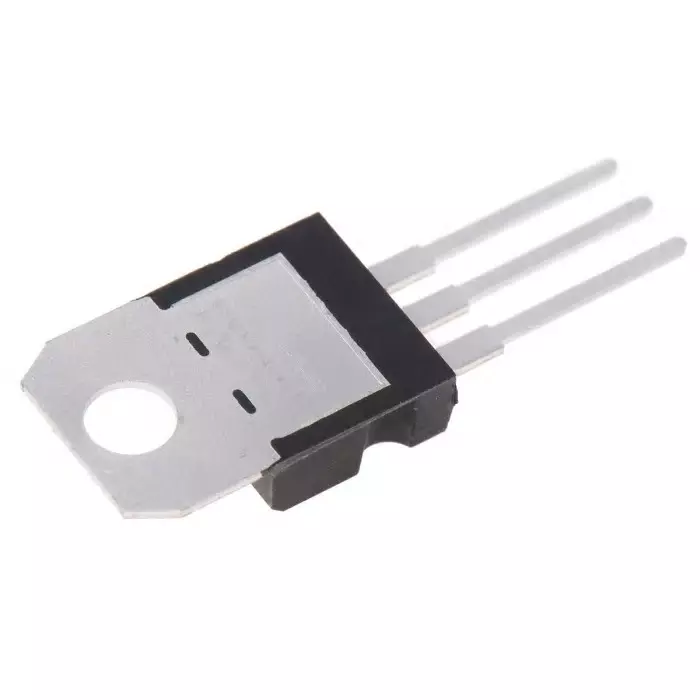

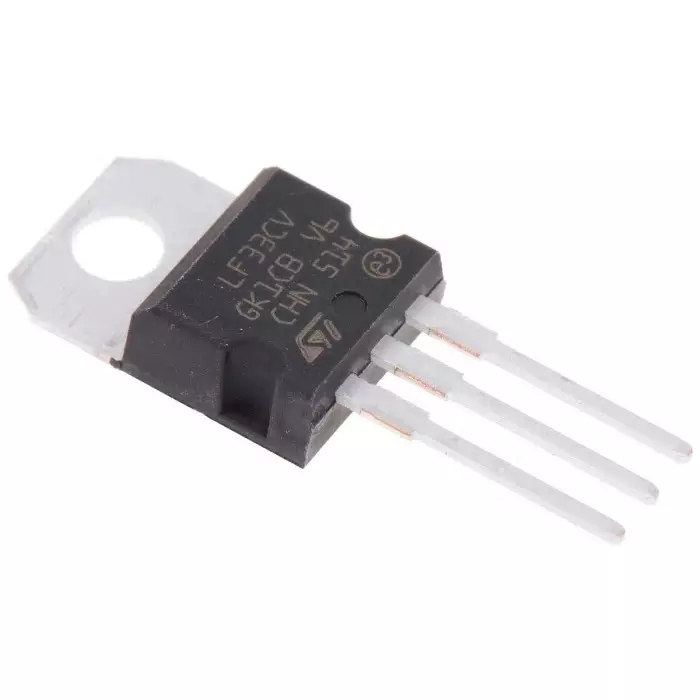

| Model No | LF33CV |
| Mounting Type | Through Hole |
| Type of Product | Voltage Regulator |
| Output Voltage | 3.3 V |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
LF33CV |
Mounting Type |
Through Hole |
Type of Product |
Voltage Regulator |
Output Voltage |
3.3 V |
Dimension |
10.4 x 4.6 x 9.15 mm |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
No. Of Output |
1 |
Maximum Output Current |
500 mA |
Package Type |
TO-220 |
Output Type |
Fixed |
Pin Count |
3 |
Maximum Input Voltage |
16 V |
Load Regulation |
16 mV |
Polarity |
Positive |
Height |
9.15 mm |
Quiescent current |
0.5 mA |
Length |
10.4 mm |
Maximum Operating Temperature |
+125 °C |
Line Regulation |
16 mV |
Width |
4.6 mm |
Minimum Operating Temperature |
-40 °C |
Accuracy |
±12% |
