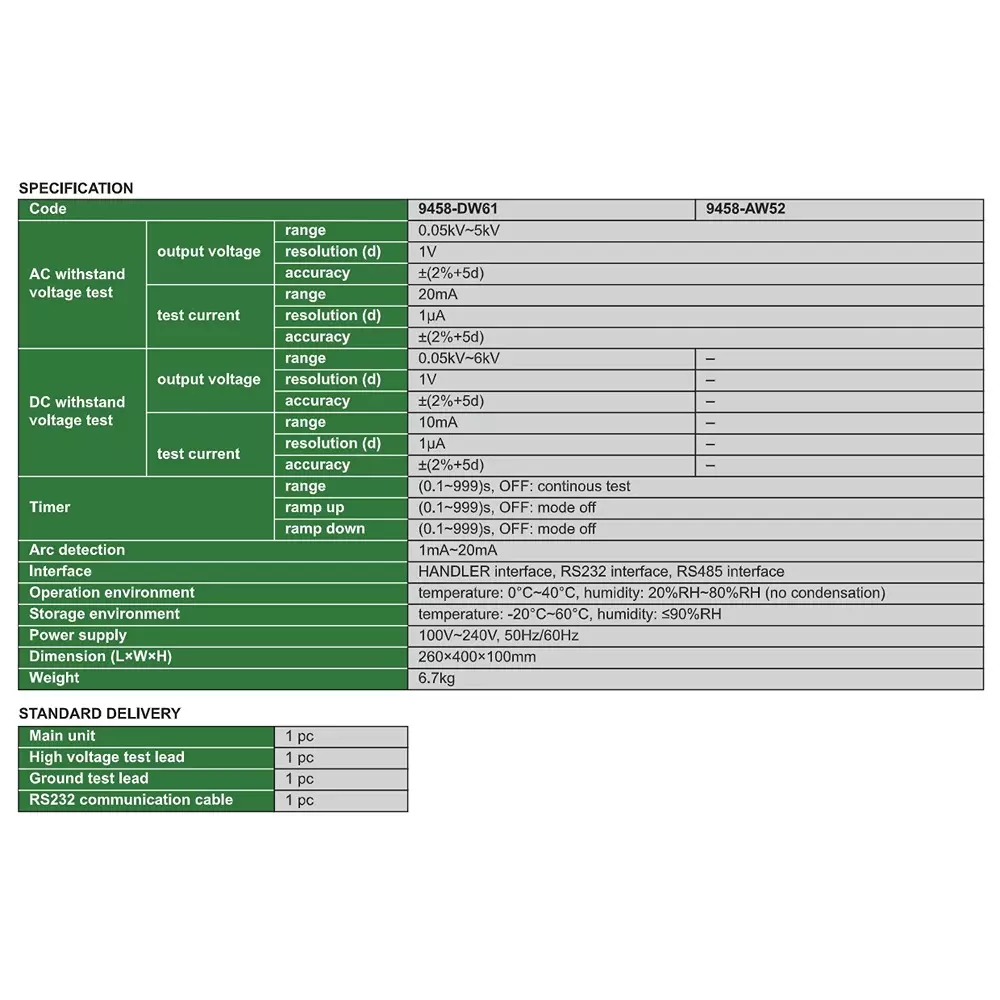

| Weight | 6.7 Kg |
| Dimension | 260x400x100 mm |
| Power Supply | 100-240 V, 50/60 Hz |
| Features | High-voltage test with adjustable rise and fall time Arc detection function, contact check function Various over-limit alarms with buzzer, LCD display, Fail indicator 20 test files can be edited, each file can be edited for 50 test items Standard communication interface to meet automation test requirements |
Weight |
6.7 Kg |
Dimension |
260x400x100 mm |
Power Supply |
100-240 V, 50/60 Hz |
Features |
High-voltage test with adjustable rise and fall time Arc detection function, contact check function Various over-limit alarms with buzzer, LCD display, Fail indicator 20 test files can be edited, each file can be edited for 50 test items Standard communication interface to meet automation test requirements |
Type of Product |
Programmable Withstanding Voltage Tester |
Model No |
9458-AW52 |
Country of Origin |
China |
Package Contains |
1 x Main Unit, 1 x High Voltage Test Lead, 1 Ground Test Lead, 1 x RS232 Communication Cable |
Operating Temperature |
0-40°C |
Storage Temperature |
-20°C to 60°C |
Name of Manufacturer/Packer/Importer |
INSZIE |
Operating Humidity |
20% RH to 80% RH (Non-Condensing) |
Function |
Arc Detection Function, Contact Check Function |
Timer |
0.1 - 999 s |
Interface |
Handler, RS232, RS485 |
DC Leakage Current |
10 mA |
DC Withstand Voltage |
6 kV |
AC Withstand Voltage |
5 kV |
AC Leakage Current |
20 mA |
Arc Detection |
1 mA - 20 mA |
