| Weight | 24.8 Kg |
| Dimension | 377x282x193 mm |
| Power Supply | 220 V ± 10%, 50/60 Hz |
| Features | Adjustment of the output by voltage regulator, featuring high reliability and durability High voltage output alarm, remote control available, high safety Realtime display of breakdown current and voltage values Breakdown alarm current can be set Optional PLC interface |
Weight |
24.8 Kg |
Dimension |
377x282x193 mm |
Power Supply |
220 V ± 10%, 50/60 Hz |
Features |
Adjustment of the output by voltage regulator, featuring high reliability and durability High voltage output alarm, remote control available, high safety Realtime display of breakdown current and voltage values Breakdown alarm current can be set Optional PLC interface |
Type of Product |
Withstanding Voltage Tester |
Model No |
9457-HD1005 |
Country of Origin |
China |
Package Contains |

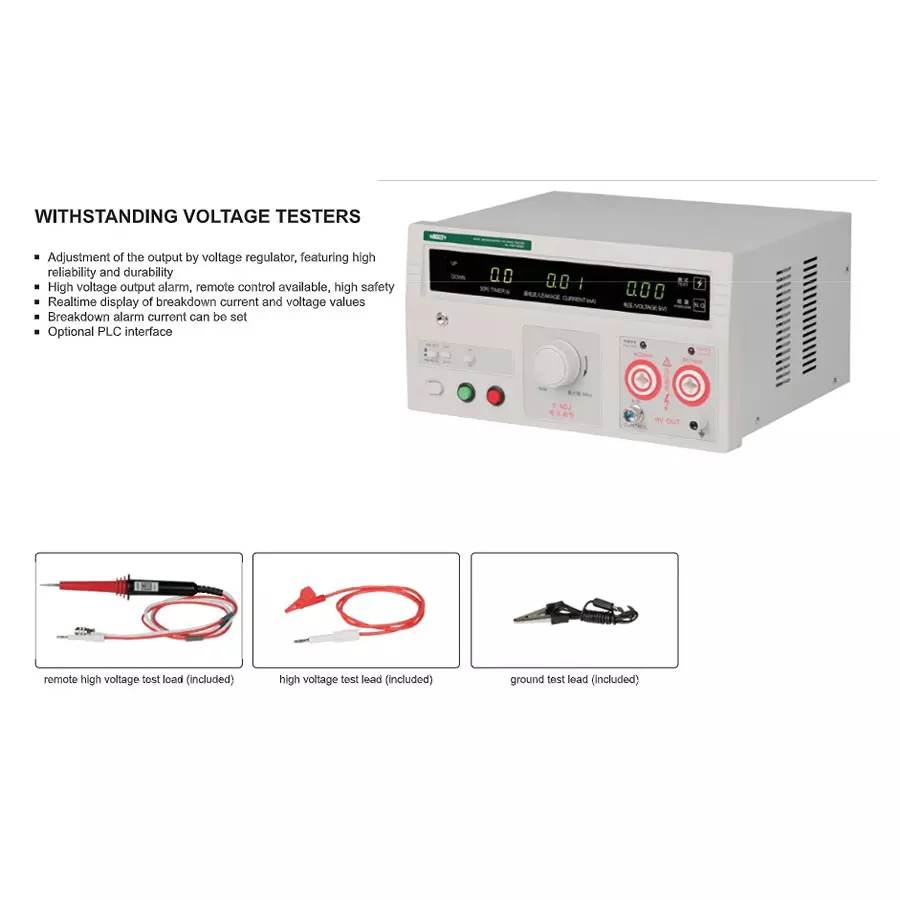

1 x Main Unit, 1 x Remote with High Voltage Test Lead, 1 x High Voltage Test Lead, 1 x Ground Test Lead |
Operating Temperature |
0-40°C |
Storage Temperature |
-20°C to 60°C |
Name of Manufacturer/Packer/Importer |
INSZIE |
Operating Humidity |
20% RH to 80% RH (Non-Condensing) |

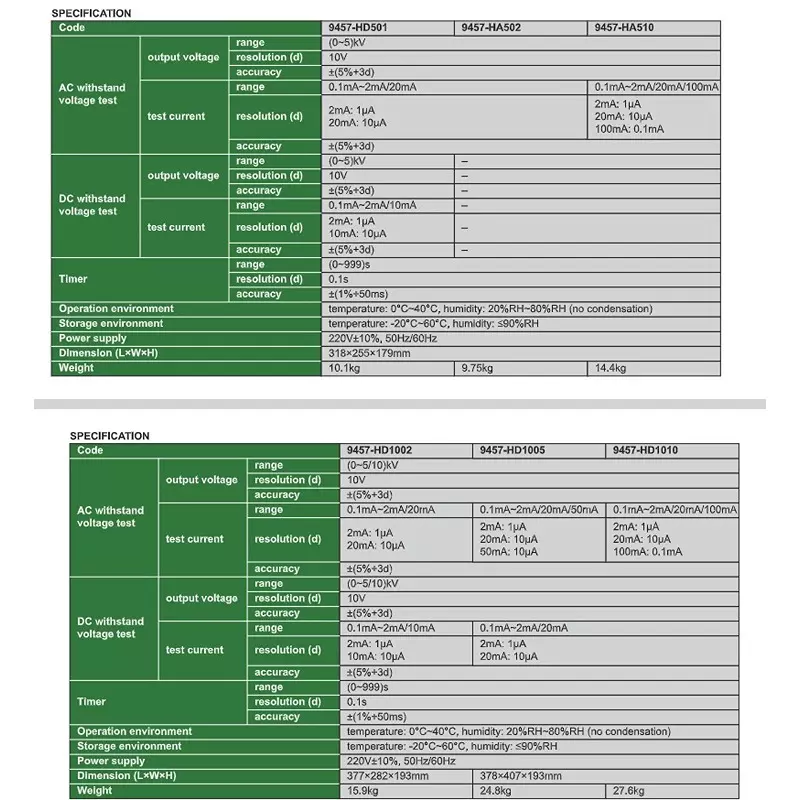

Resolution |
10 V |
Timer |
0-999 s |
DC Leakage Current |
2 mA/10 mA |
DC Withstand Voltage |
5/10 kV |
AC Withstand Voltage |
5/10 kV |
AC Leakage Current |
2 mA/20 mA/50 mA |
