| Display Type | LED |
| Indication | Bright LED for Power ON & Test ON |
| Display | 3 Digit LED |
| Voltage | 0 to 5kV DC |
Display Type |
LED |
Indication |
Bright LED for Power ON & Test ON |
Display |
3 Digit LED |
Voltage |
0 to 5kV DC |
Type of Product |

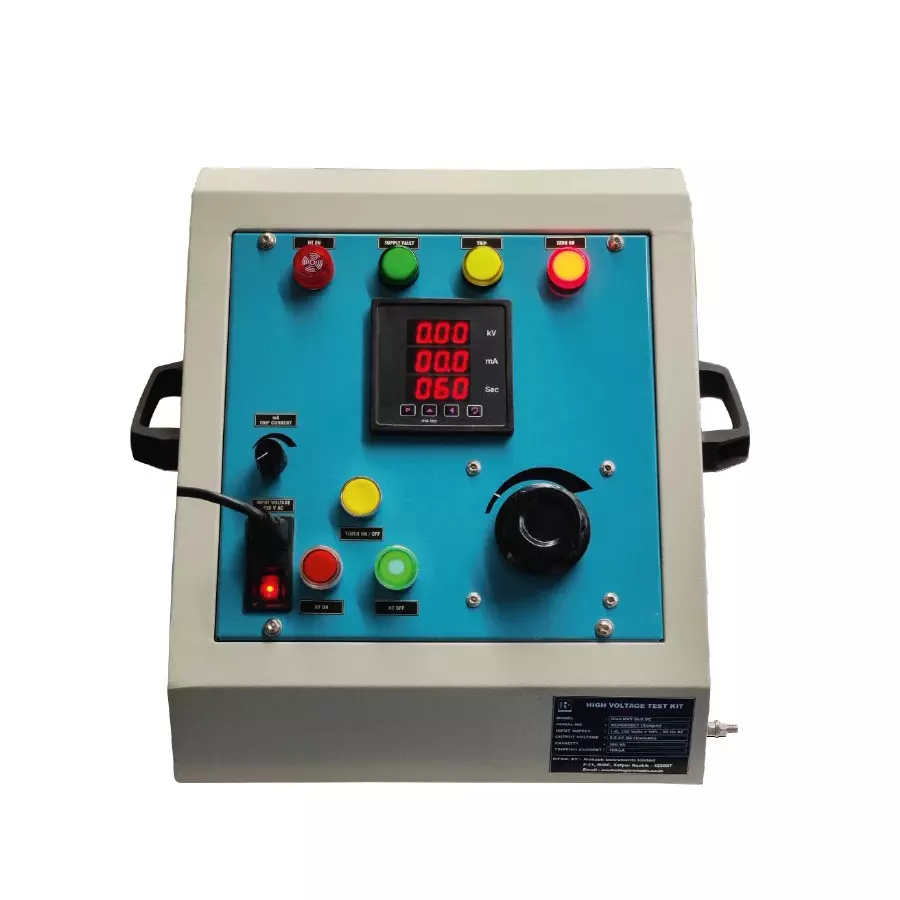

High Voltage Breakdown Tester |
Part No |
TM05-DC000000100MT |
Model No |
Rish HVT 5kV DC |
Country of Origin |
India |
Included Components |
HV Cable for testing 3 m, Power Cord 3 m, Spare fuse, Instruction manual, Earthing Cable, Dischage Rod |
Safety |
L&N reversal & Earth Open Protection, Dimmer Zero, Fuse, HT On alarm |
Relative Humidity |
0... 90% non-condensing |
Operating Temperature |
0 to +55°C |
Storage Temperature |
0 to +70°C |
Voltage Range |
0 to 5kV AC |
Name of Manufacturer/Packer/Importer |
NAAFIE ENTERPRISES |
Current Range |
1-100 mA |
Current |
100 mA |
Voltage Accuracy |
±2% of range ±2 digits |
Current Accuracy |
DC ±2% of range ±2 digits |
Operation Mode |
Manual |
Mains Supply |
230 V 50 Hz ±10%, 1 Phase AC |
Timer Accuracy |
DC ±0.05% + 1 counts of full scale reading |
Cooling Type |
Air cooled |
Duty Cycle |
2 min On, 5 min Off |
Voltage Resolution |
0.01 kV |
Timer |
0-999 seconds Digital Timer |
