| Type of Product | Resin Coupling |
| Material | Glass fiber reinforced PBT resin |
| Model No | GJ-6 |
| Country of Origin | Japan |
Type of Product |
Resin Coupling |
Material |
Glass fiber reinforced PBT resin |
Model No |
GJ-6 |
Country of Origin |
Japan |
Type |
Plastic Coupling |
Name of Manufacturer/Packer/Importer |
JTEKT Electronics (former Koyo Electronics Industries) |
Monotaro ID |
2490047 |
Import Country |
Direct Import from Japan |
Suitable Rotary Encoder Model |
TRD-S/2E |
Allowable Endplay (mm) |
0.4 |

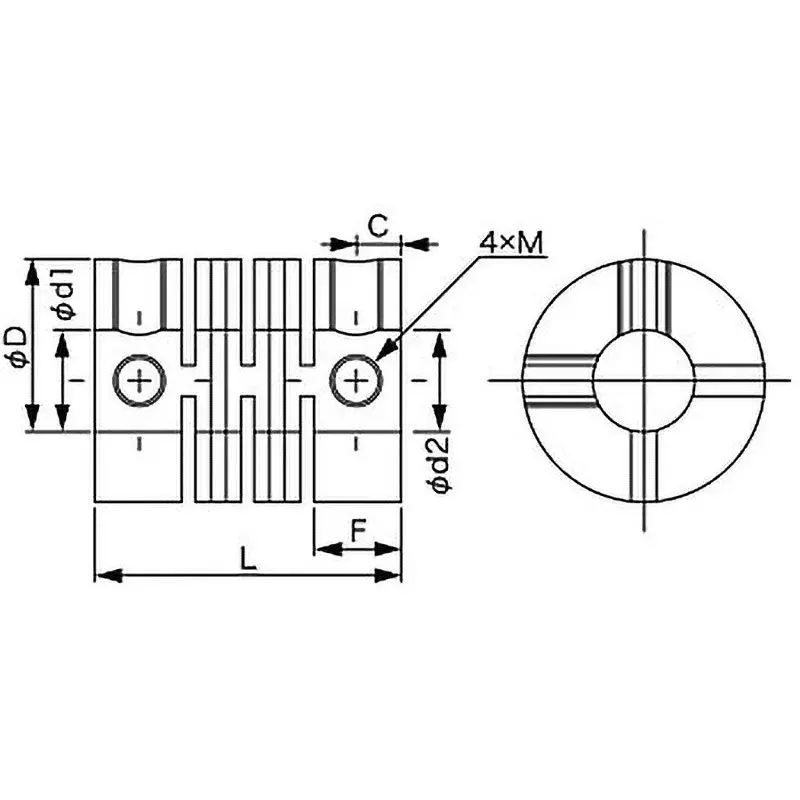

Dimension F (Φmm) |
5.2 |
Dimension d2 (Φmm) |
6 |
Dimension d1 (Φmm) |
6 |
Spring Constant (N/mm) |
10 |
Dimension L (mm) |
22 |
Screws |
M3 |
Inertia Moment (kgm2) |
1.2x10⁻⁷ |
Dimension D (Φmm) |
15 |
Maximum Rotational Speed |
6000 s¯¹ (RPM) |
Maximum Torque (Nm) |
0.8 |
Tightening Torque (Nm) |
0.25 (screw) |
Angle Deviation |
5° Angle |
Insertion Depth |
5.0 to 5.2 mm |
Dimension C |
3 |
Offset |
0.5 mm |
