Ships within 19 days
View
View
View
View

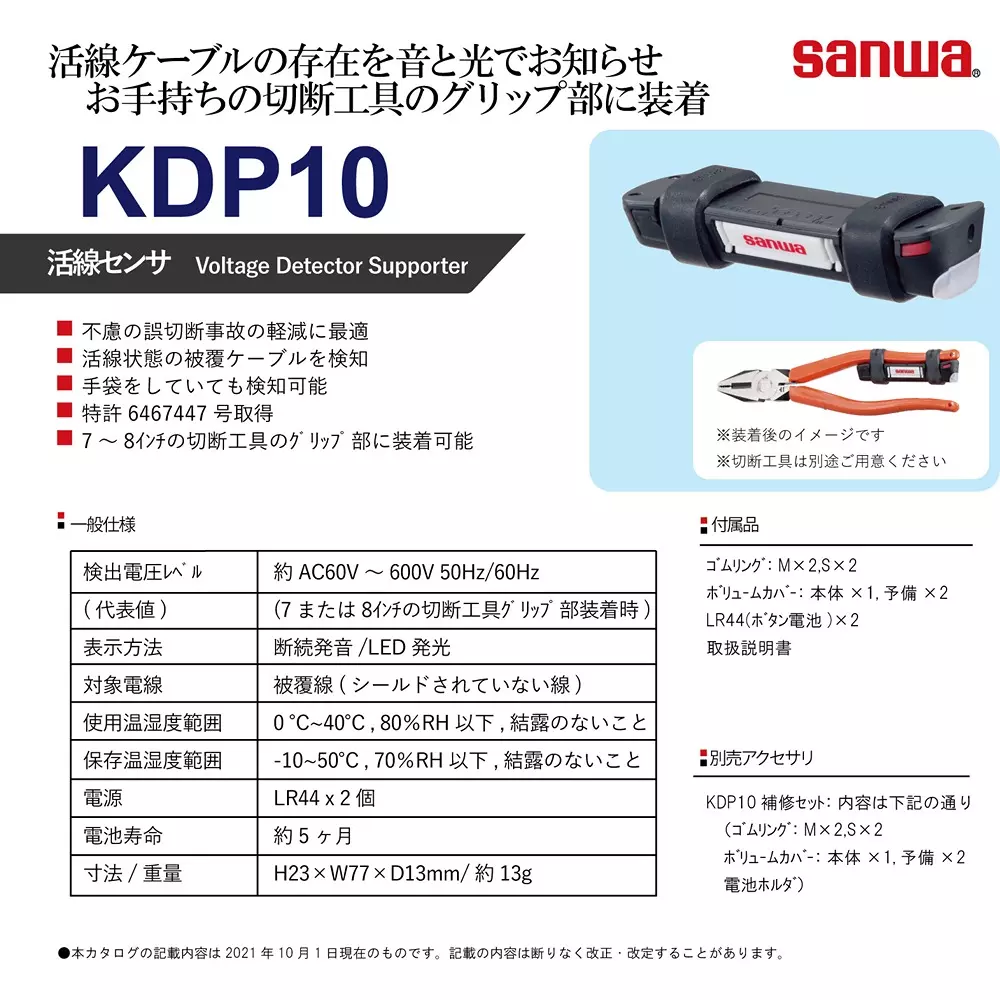

| Model No | KDP10 |
| Type of Product | Hot Wire Sensor |
| Name of Manufacturer/Packer/Importer | Sanwa Electric Instrument Co., Ltd. |
| Country of Origin | Japan |
Model No |
KDP10 |
Type of Product |
Hot Wire Sensor |
Name of Manufacturer/Packer/Importer |
Sanwa Electric Instrument Co., Ltd. |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Monotaro ID |
70528447 |
Mass (g) |
About 13 |
Included Components |
Rubber ring M x 2, S x 2, Sensitivity adjustment volume cover Main unit included x 1, Spare x 2, LR44 (button battery) x 2, Instruction manual |
Suitable Wire |
Covered wire (unshielded wire) |
Temperature/Humidity Range for Storage |
0 to 40°C, 80% RH or less *No condensation |
Power Supply |
LR44 (alkaline battery) 1.5V x 2 |
Dimension (WxDxH) |
23x23x13 mm |
RoHS Directive |
Correspondence |
Type |
Live line sensor |
Operating Voltage Range (V) |

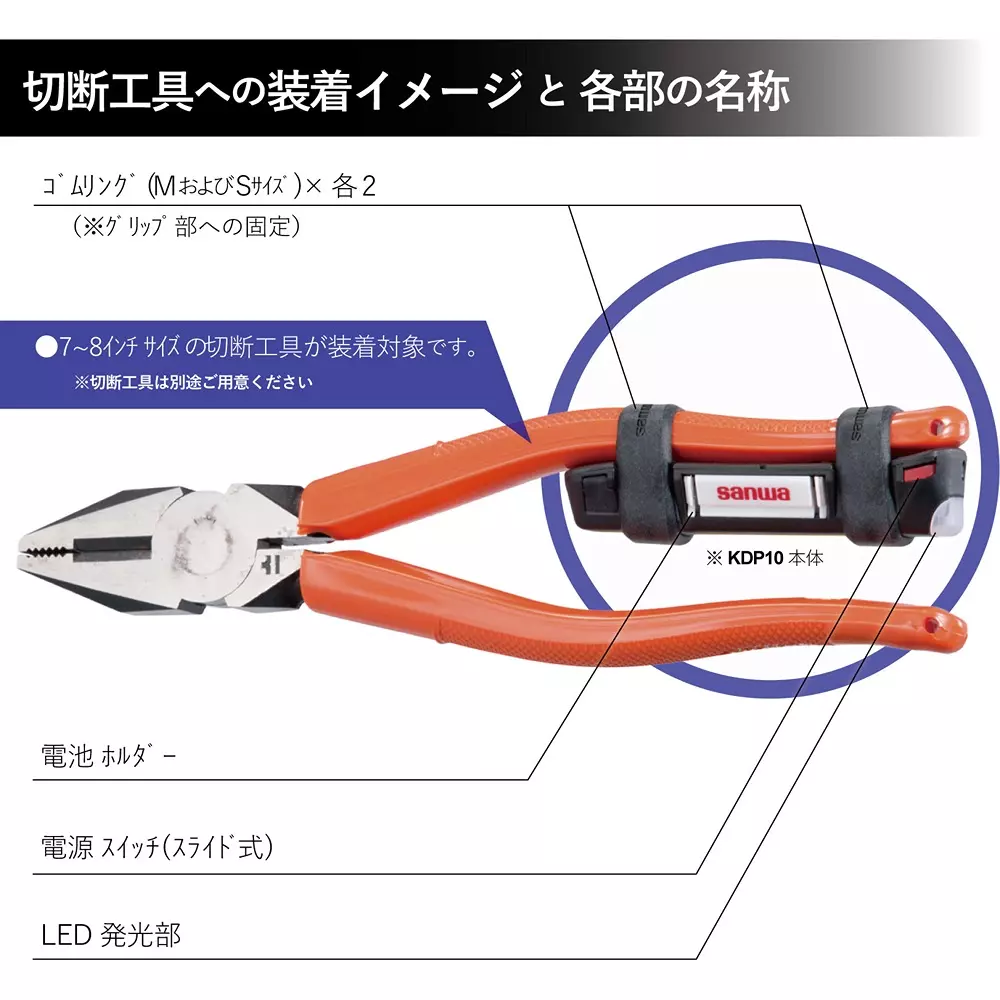

Approx. AC 60-600 (50/60Hz) *7 or 8 inch cutting tool grip attached |
Operation Environment |
-10 to 50°C, 70% RH or less *No condensation (remove the batteries if not in use for an extended period of time) |
Operation Indicator |
Intermittent sound / LED emission |
