Ships within 25 days
View
View
View
View
| Frame Material | Aluminum alloy |
| Country of Origin | Japan |

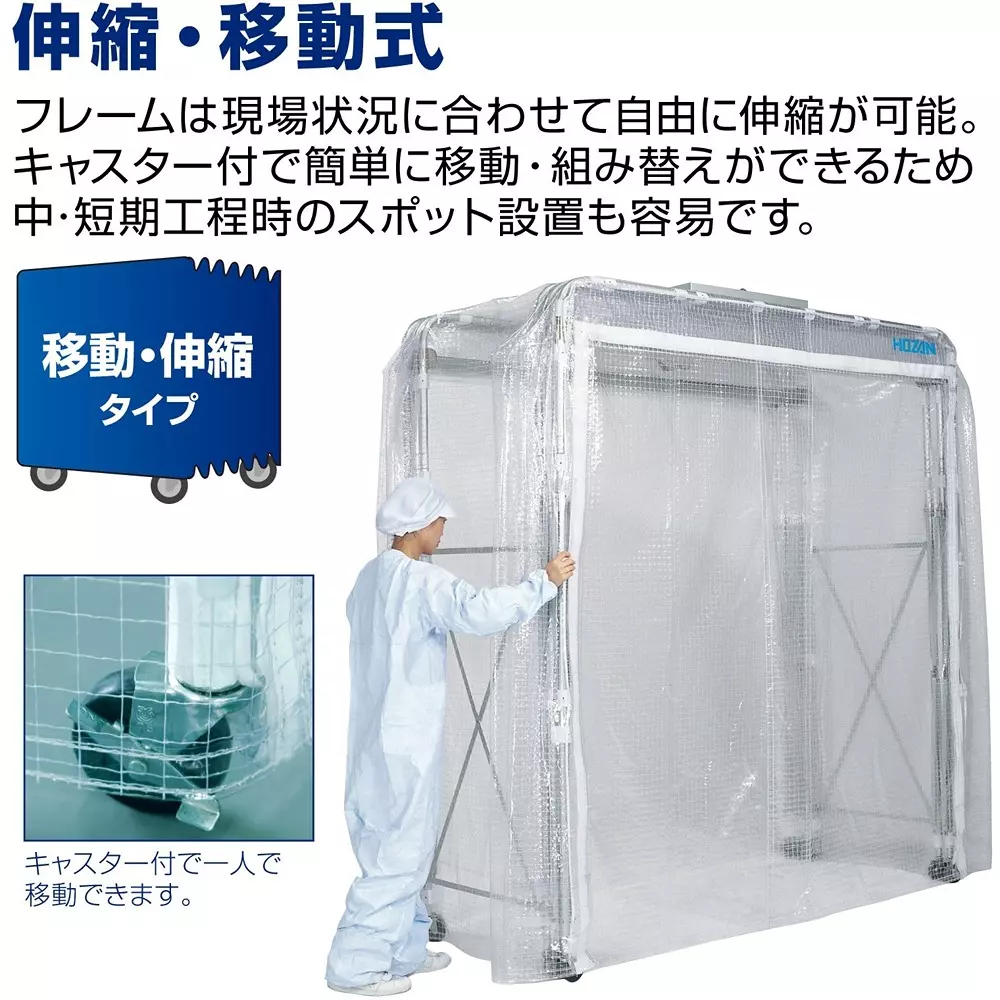

| Type of Product | Positive Pressure Booth |
| Model No | CL-909 |
Frame Material |
Aluminum alloy |
Country of Origin |
Japan |
Type of Product |
Positive Pressure Booth |
Model No |
CL-909 |
Name of Manufacturer/Packer/Importer |
HOZAN Corporation |
Monotaro ID |
47313990 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
55 (seat: 14 + frame: 27.5 + FFU13.5) |
Collection Efficiency (%) |
99.97 or more (0.3μm) |
Wind Speed (m/s) |
0.4 / 0.5 (50 / 60Hz) (HEPA / pre-filter installed) |

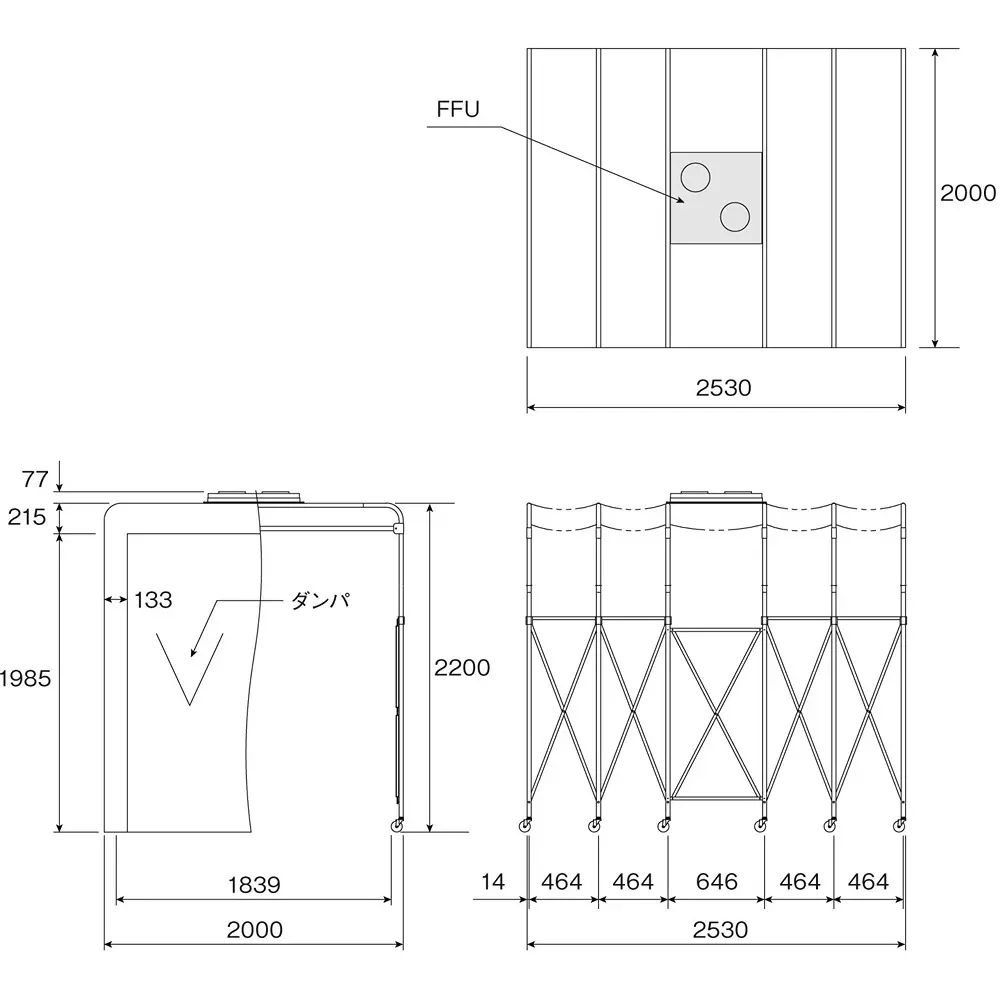

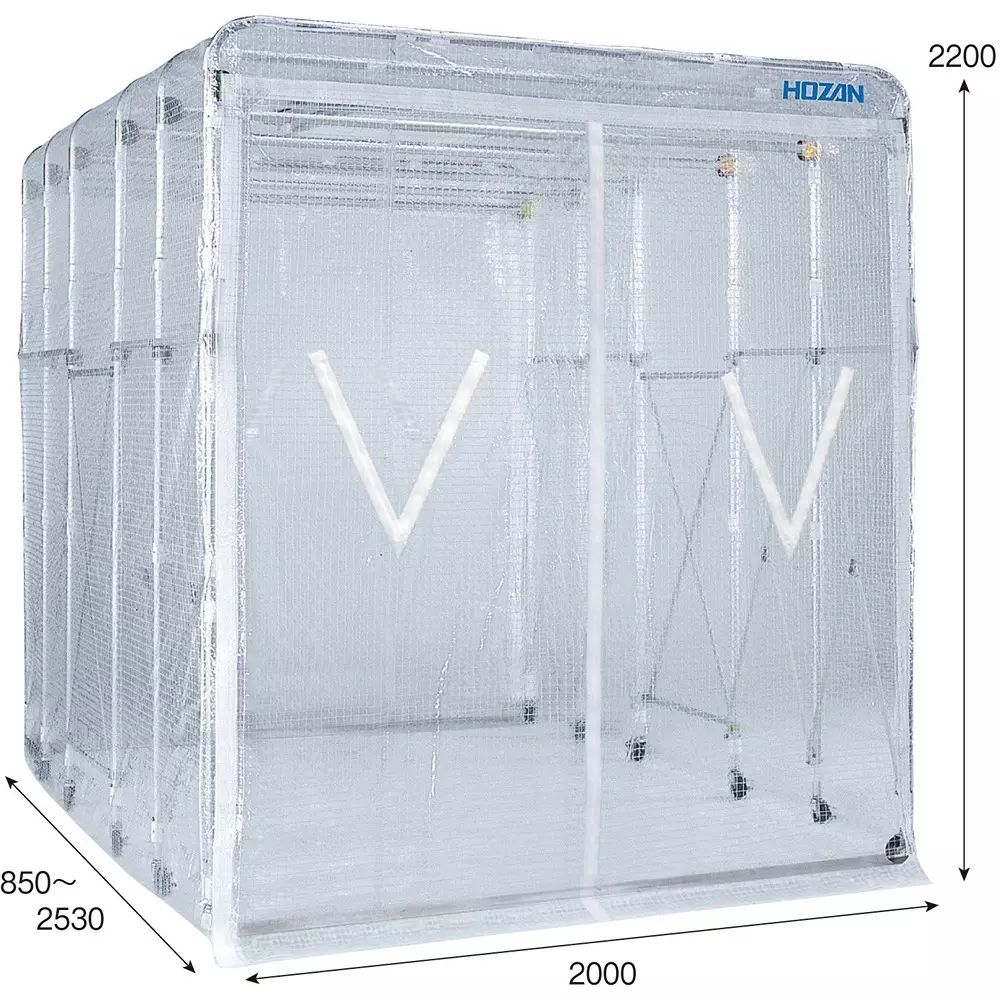

Outer Dimensions |
2000x2200x850 to 2530 mm |
Filter |
HEPA (main filter), non-woven fabric (pre-filter) |
Discharge Rate |
9.0/10.5 m³/min(50/60Hz) |
Capacity (M3/hr) |
3.74 to 11 |

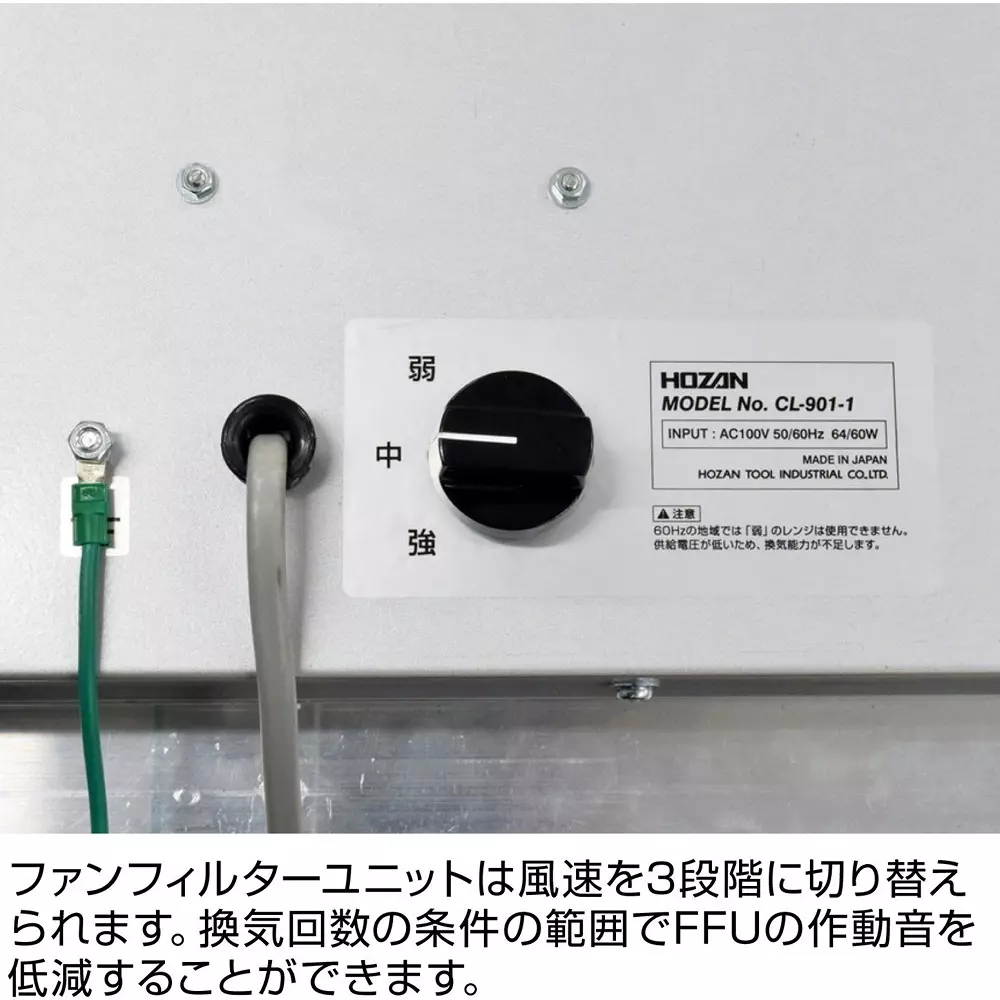

Rated Voltage (V) |
AC100 50 / 60Hz |
Power Consumption (W) |
64/60(50 / 60Hz) |
Frequency |
144 to 49 (50Hz), 168 to 57 (60Hz) (when compressed to expanded) |
Seat Material |
Flame retardant type PVC sheet with reinforced fibers (kneaded with antistatic agent) Thickness 0.3mm |
Operating Sound |
61 to 51 dB (50Hz), 70 to 44 dB(60Hz) |

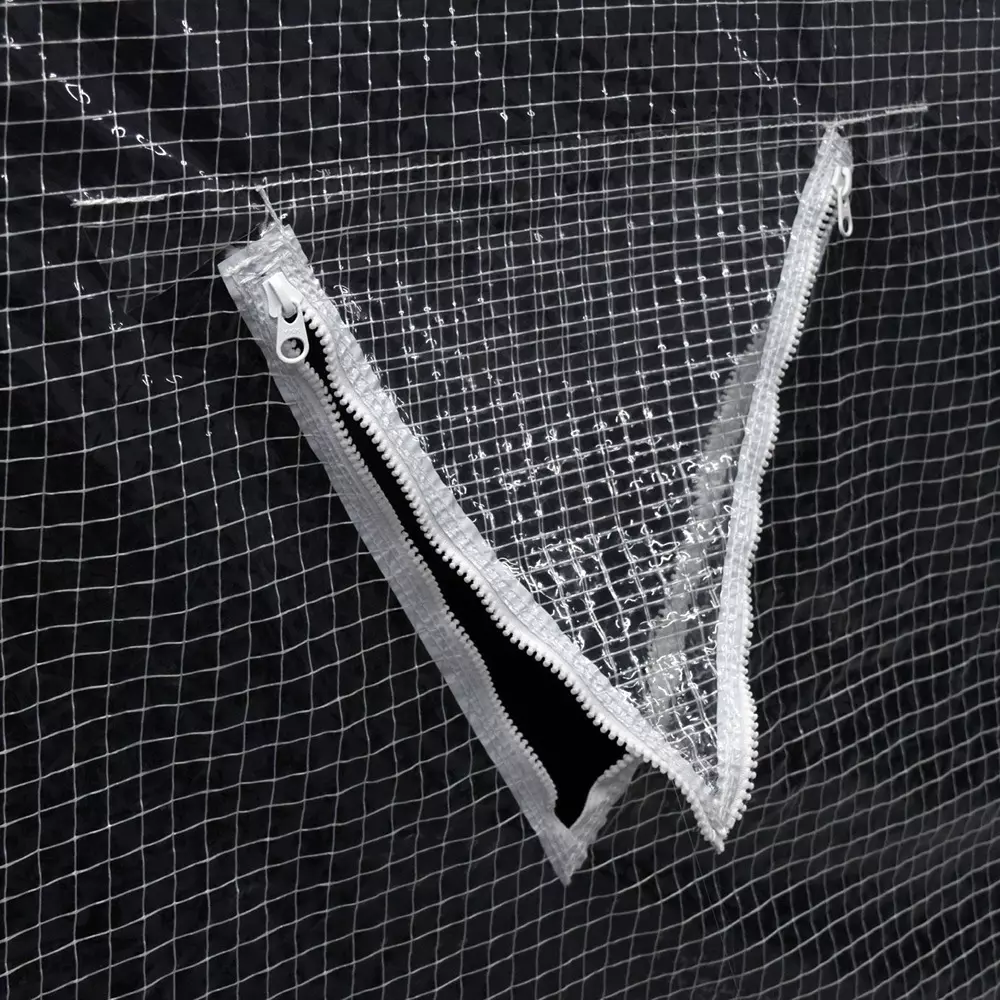

Pressure |
Positive pressure: 2 to 15.5 Pa (50 Hz), 3 to 22 Pa (60 Hz) (when 4 dampers are fully open to fully closed) |
