| Model No | C-463-A-2020-Silver |
| Weight | 1.35 Kg |
| Type of Product | Window Frame |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
C-463-A-2020-Silver |
Weight |
1.35 Kg |
Type of Product |
Window Frame |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Monotaro ID |
61122653 |
Pack of |
1 Pc |

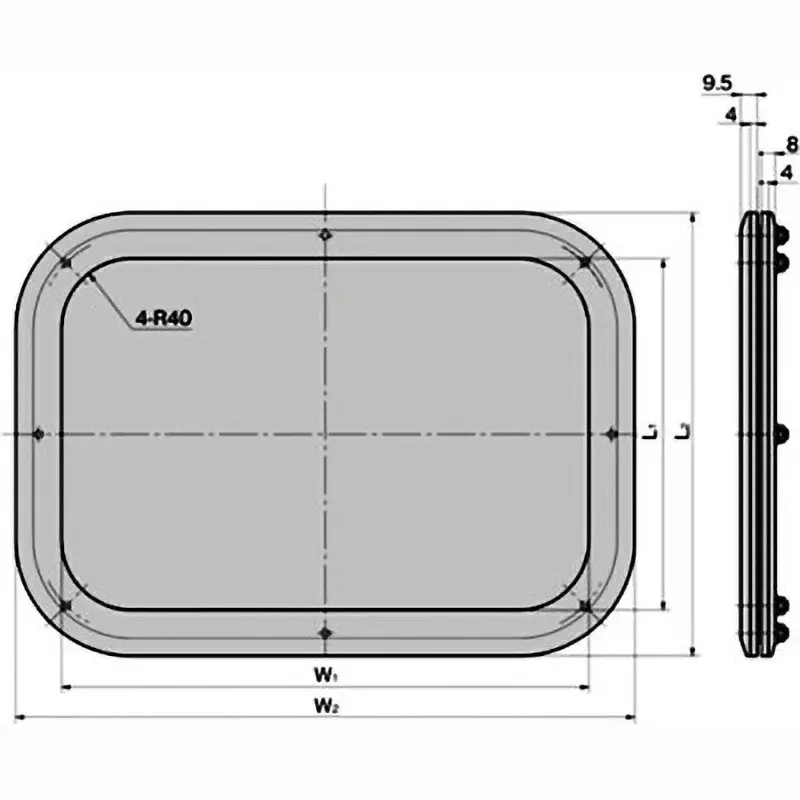

Dimensions L1 (mm) |
198 |
Dimension L3 (mm) |
235 |
Dimensions W2 (mm) |
250 |
Dimensions l2 (mm) |
250 |
Dimension W3 (mm) |
235 |
TAKIGEN Code |
23794 |
Dimensions W1 (mm) |
198 |
Window Material |
Netted Glass (6.8 mm Thick), Tempered Glass (5.0 mm Thick) |
Suitable Thickness of Workpiece (mm) |
2.0 to 3.2 |
Frame Material |
Square Window Frame: Aluminum Alloy Extruded Material (A6063S), Round Window Frame: Aluminum Alloy |
Dust/Water Protection |
IPX5 |
Material (Gasket) |
Chloroprene Rubber (CR) / Ethylene Propylene (EPDM) |
Surface Finish Type |
Frame: Powder Coating |
Standard Color |
Silver |
